3.3 Basic operation
WF1945B 3-29

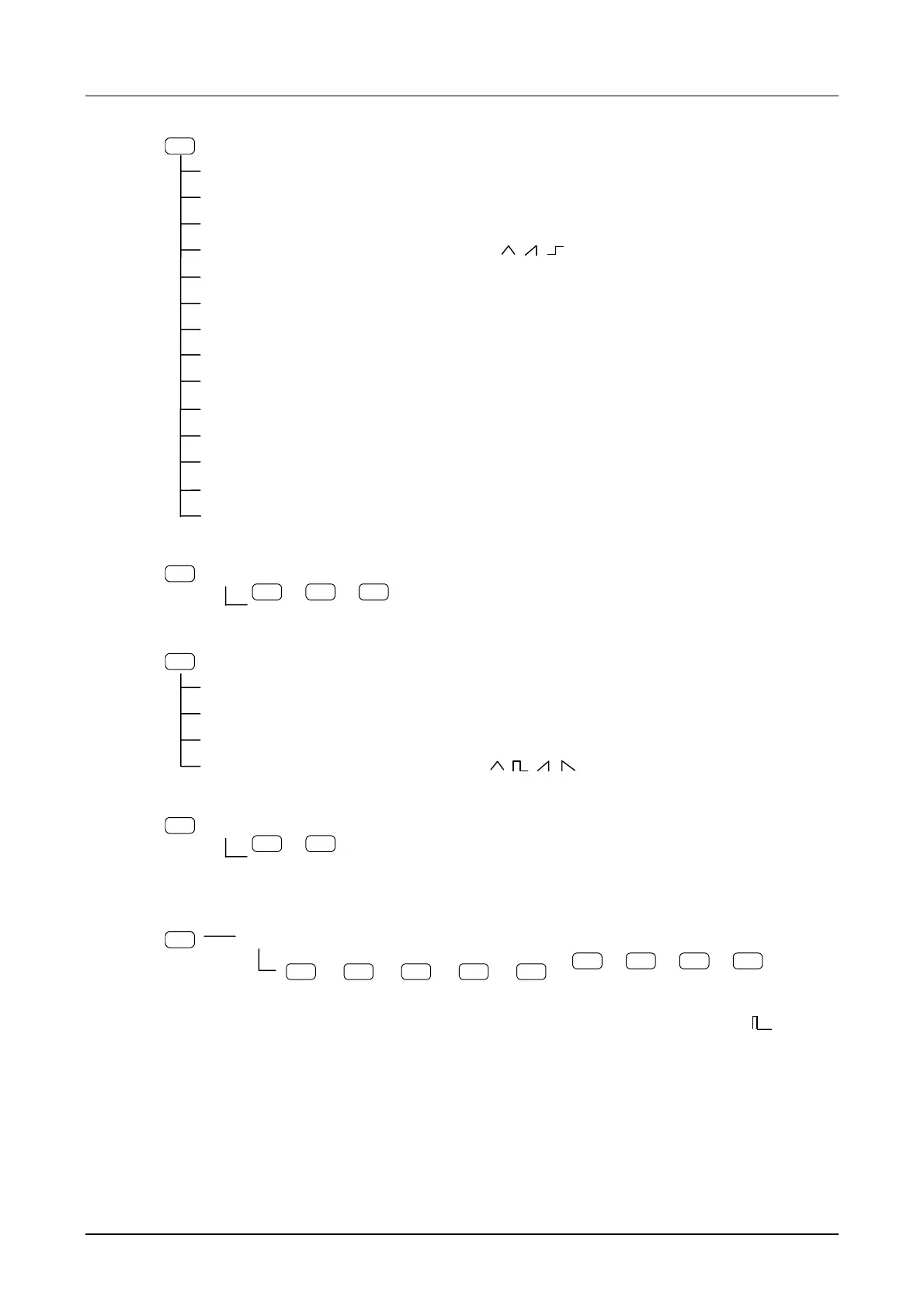

SWEEP
Menu
TYPE (Sweep target) [FREQ/AMPTD/OFFSET/PHASE/DUTY]
SOURCE (Trigger source selection) * For MODE: SINGLE/GATED
MODE (Sweep mode) [SINGLE/CONT/GATED]
FUNCTION (Sweep waveform) [LIN/LOG,
/ / /SIN]
START (Sweep start value)
STOP (Sweep end value)
TIME (Sweep time)
STOP-LEVEL * For MODE: GATED
CENTER (Sweep center value)
SPAN (Sweep width)
MARKER (Marker value)
MKR→CTR (Copying of the marker value to the center value)
START-STATE
STOP-STATE
SWEEP
Operation
START
/
STOP
/
PAUSE
MODU
Menu (Internal modulation)
TYPE (Modulation type) [FM/AM/OFSM/PM/PWM]
DEVIATION * DEPTH for TYPE: AM
FREQ (Modulation frequency)
FUNCTION (Modulated waveform) [SIN/
/ / / ]
MODU
Operation
START
/
STOP
ENTRY
Main operation
FREQ
/
AMPTD
/
OFFSET
/
PHASE
/
DUTY
/
WIDTH
/
PERIOD
/
HIGH
/
LOW
* DUTY/WIDTH for FUNCTION:
