NHP TemBreak PRO - Label Identification

Product Information
10
TemBreak PRO B_BE-UM-001-EN  V1.1.0
Label Identification

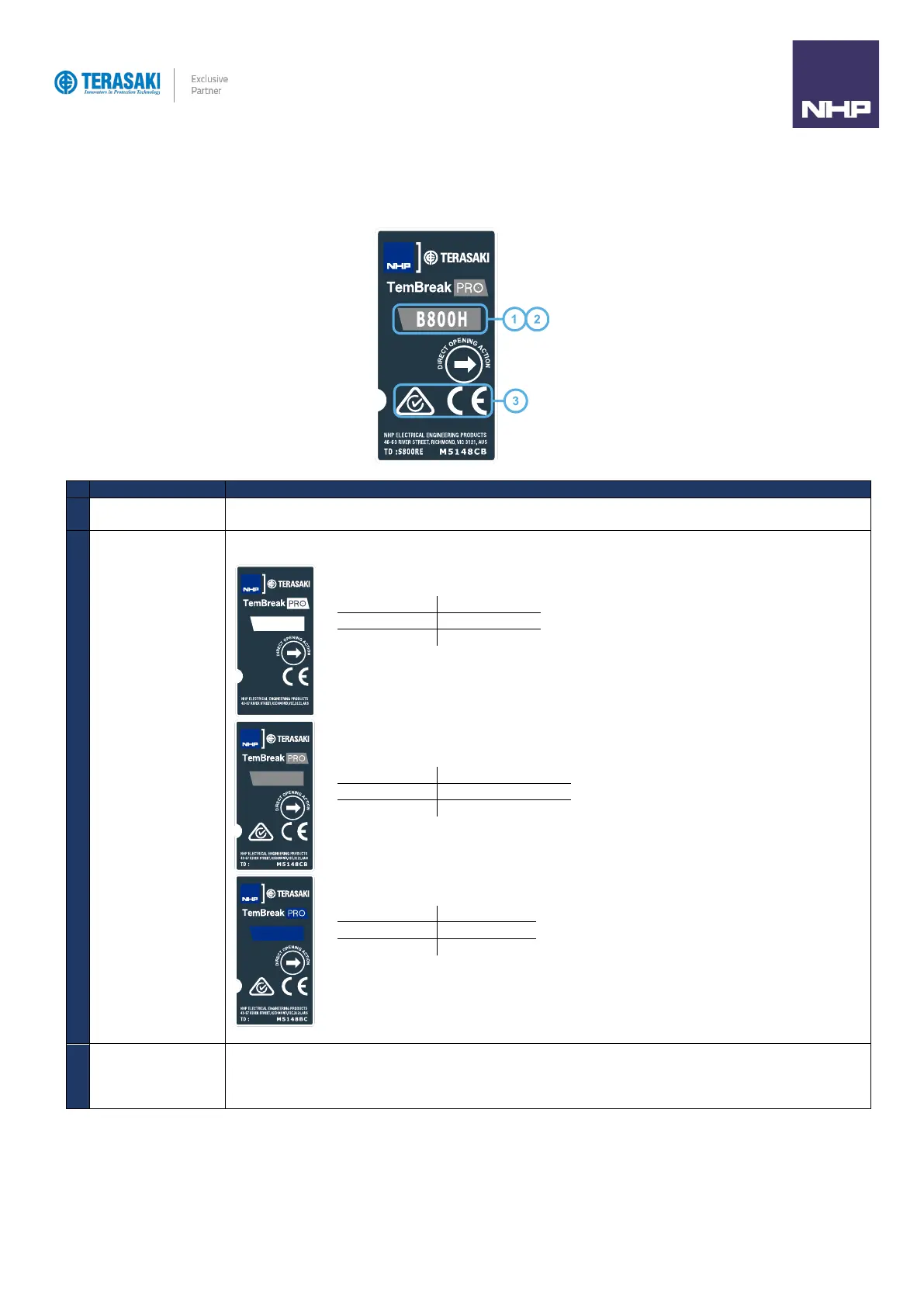

The label on the MCCB features information to aid in product identification.
Description
Notes
1
Circuit Break Identifier
Identifies the model type, ampere frame, and I
cu
rating.
2
Trip unit type
The trip unit type is indicated by the colour of the label.
White label – Thermal-magnetic type trip unit
Trip Units
FF, TF, FM, TM
Models
A, P, B, ZS
Ampere Frame
125 – 800
Grey label – electronic or non-auto type trip unit. To distinguish between the two, electronic trip units
will have the “I
cu
” letter and non-auto will use the letter “D”, Switch.
Trip Units
BE, BEG, BEGN , NN
Models
A, P, B, XS
Ampere Frame
160 – 3200
Blue Label – SMART electronic type trip unit
Trip Units
SX, SE
Models
P, B
Ampere Frame
160 – 1000
3
Certifications
Identifies the additional localised certifications of the product, in addition to the international product standard, IEC 60947-2 /
AS/NZS IEC 60947-2.
For additional certifications please contact NHP.
   
   
   
