NHP TemBreak PRO - Alarm, Shunt & UVT Installation

Installation
25
TemBreak PRO B_BE-UM-001-EN  V1.1.0
Alarm, Shunt & UVT Installation
The alarm, shunt and UVT have a trip bar that needs to interact with the MCCBs trip mechanism. As such they must be installed in a specific way. Refer to
the supplied Installation Instructions for the respective accessories for further detail.

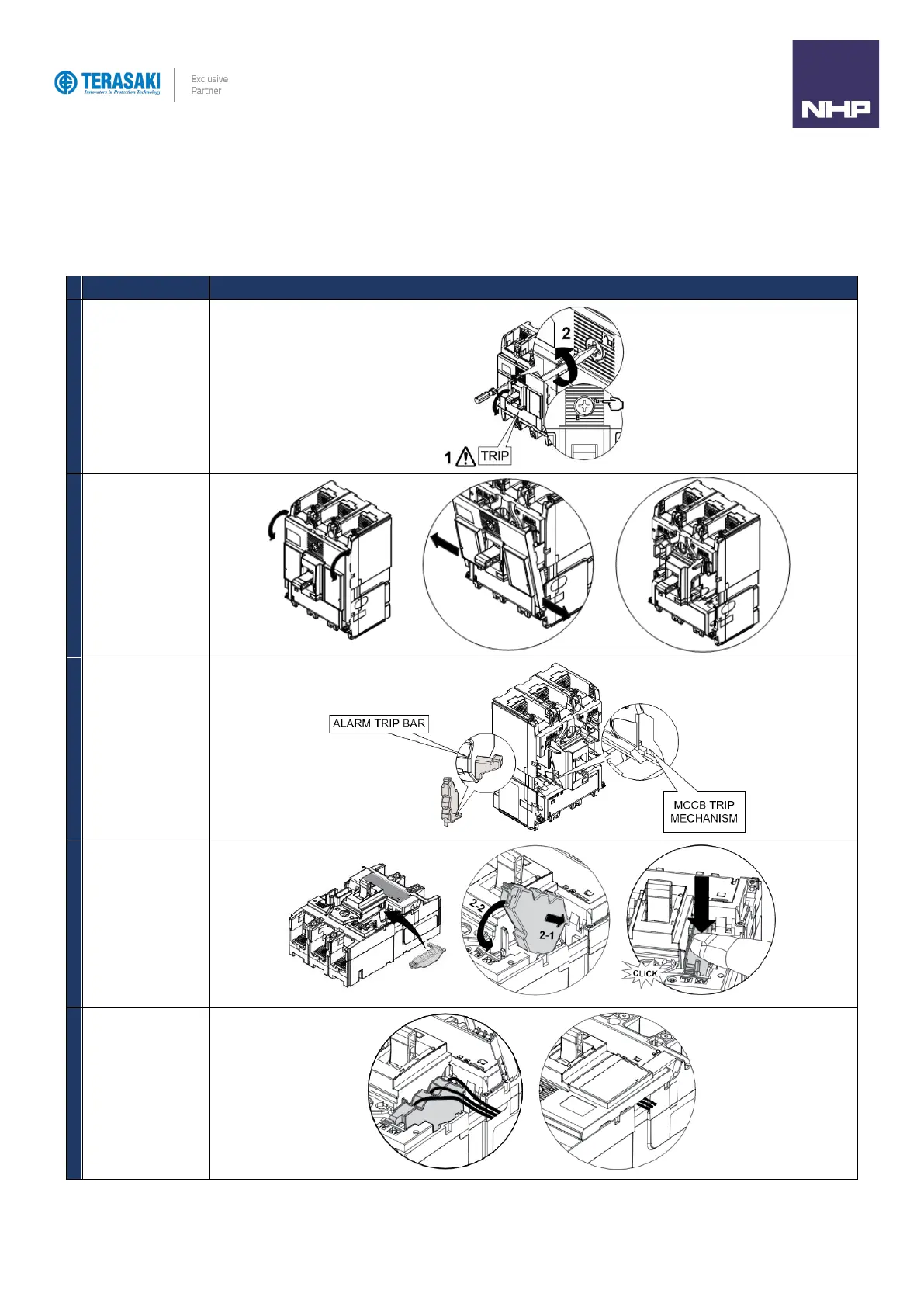

Alarm & Auxiliary installation
Action
Note
1
Switch the Smart MCCB
to the Tripped Position.
2
Open the front cover of
the MCCB.
3
Locate the alarm’s trip
bar into the MCCB trip
mechanism slot.
4
Position the alarm into
place and click in to
secure; follow the images
to the right.
5
Run the wires out the left-
hand side of the MCCB,
through the allocated
grooves.
