NHP TemBreak PRO - LSIG 3 P - GF Protection Adjustments (Ig)

Commissioning
42
TemBreak PRO B_BE-UM-001-EN  V1.1.0
LSIG 3P – GF Protection Adjustments (I
g
)
On the LSIG 3P variant B_BE MCCB, the GF protection is configured by the GF DIP switch, which is used to enable or disable GF protection, and is
performed as follows. Refer to Protection Settings – Ground/Earth Fault Protection (GF) section for further detail on GF protection.
Action

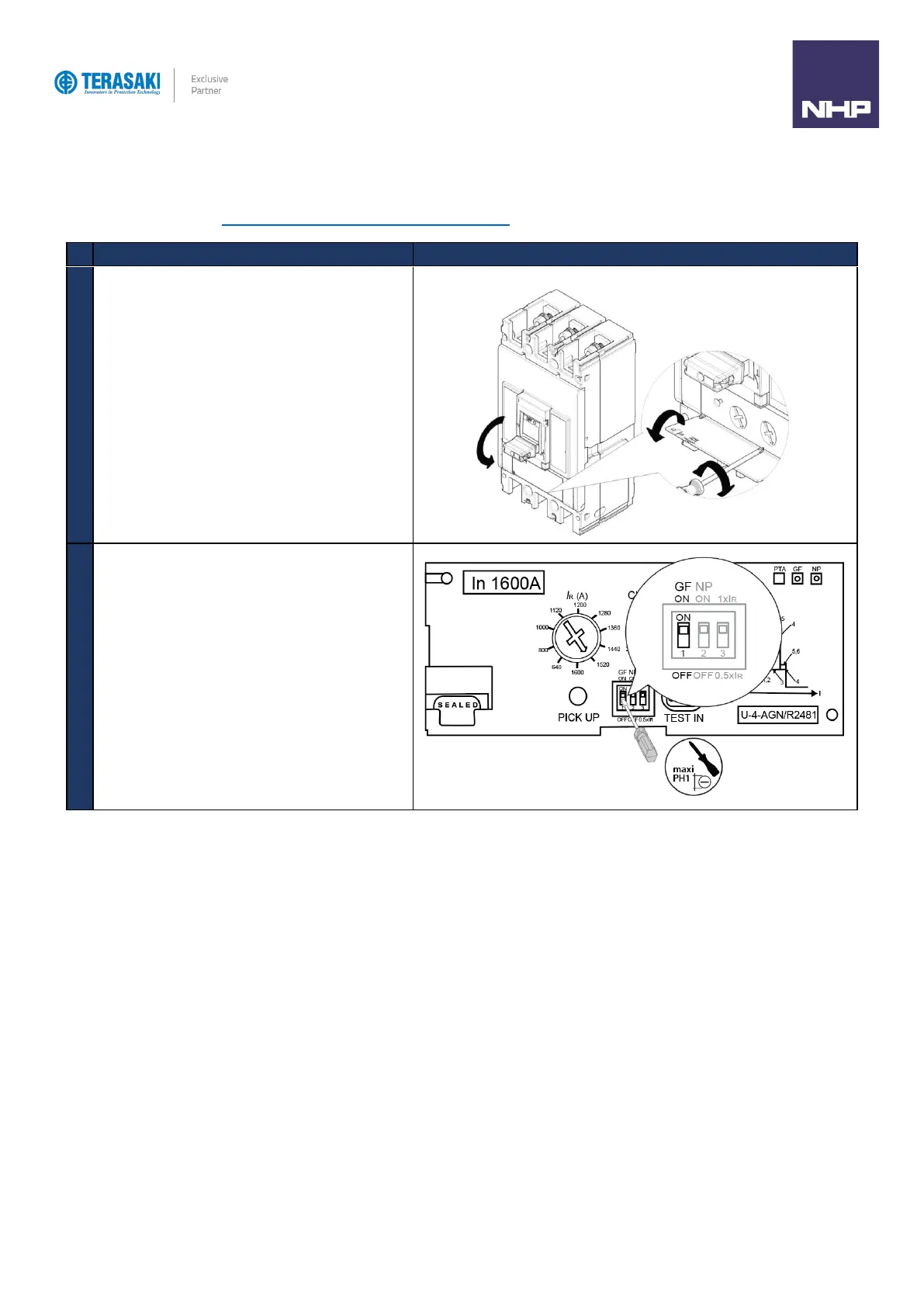

Note / Illustration
1
Turn the MCCB to the OFF Position
Open the transparent flap in order to access the GF DIP
switch.
2
Move the GF dip switch using a small flat head screwdriver.
Position the DIP switch to ON or OFF.
