Internal Accessory Mounting Locations
B250, B400, B800, B1000, B1250 and B1600 frame sizes have different internal mounting locations for auxiliary contacts, alarm contacts, shunts and,
UVTs.
Left-side and right-side mounting locations are independent and accept unique combinations. For example, shunts and UVTs may only be mounted on the
right side, whereas auxiliary and alarm contacts may be mounted on either left or right side.
Refer to the following illustrations for each frame size listing the various possible internal accessories combinations.

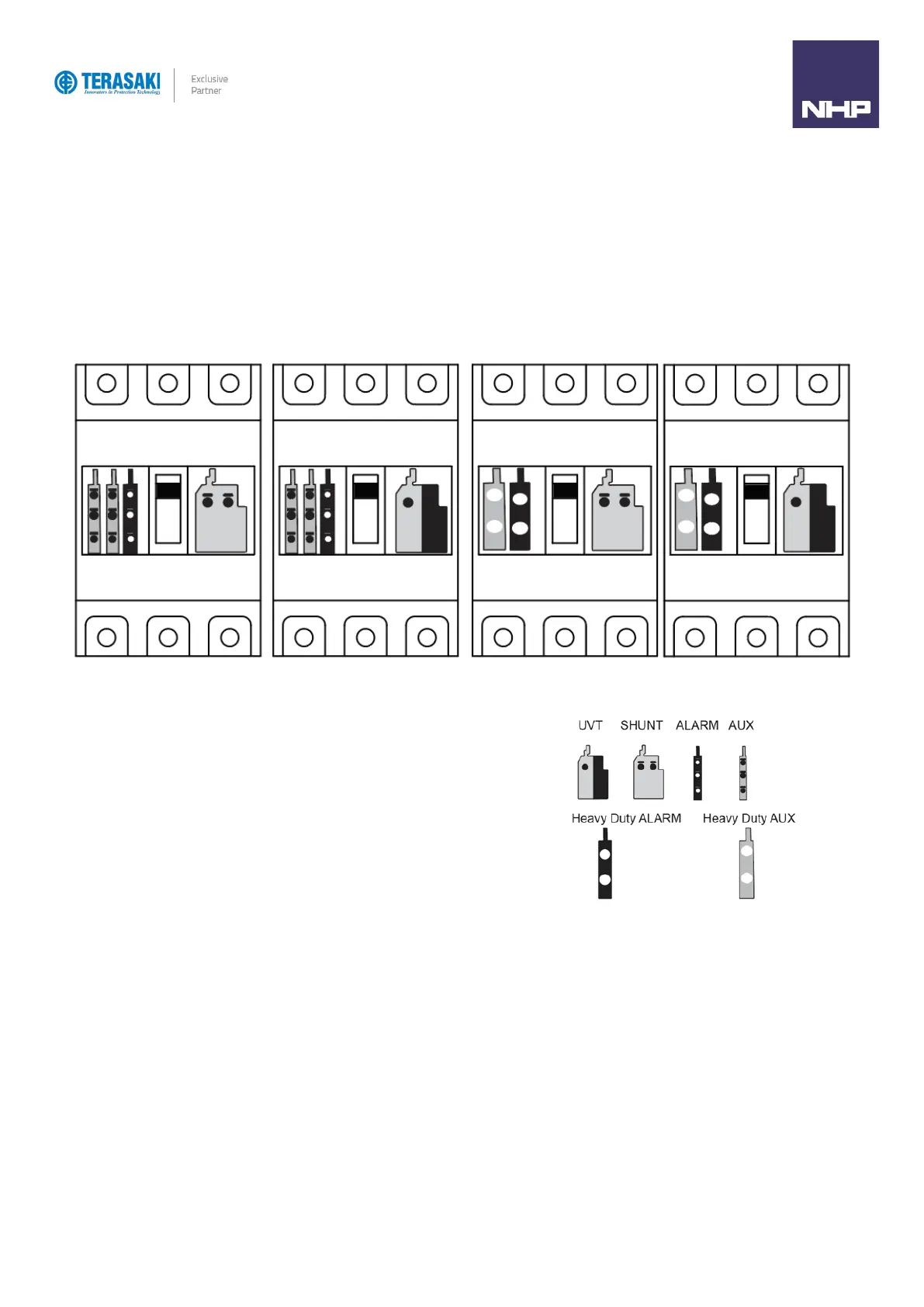

B250 internal accessories combination
