NHP TemBreak PRO - Shunt & UVT installation

Installation
26
TemBreak PRO B_BE-UM-001-EN  V1.1.0

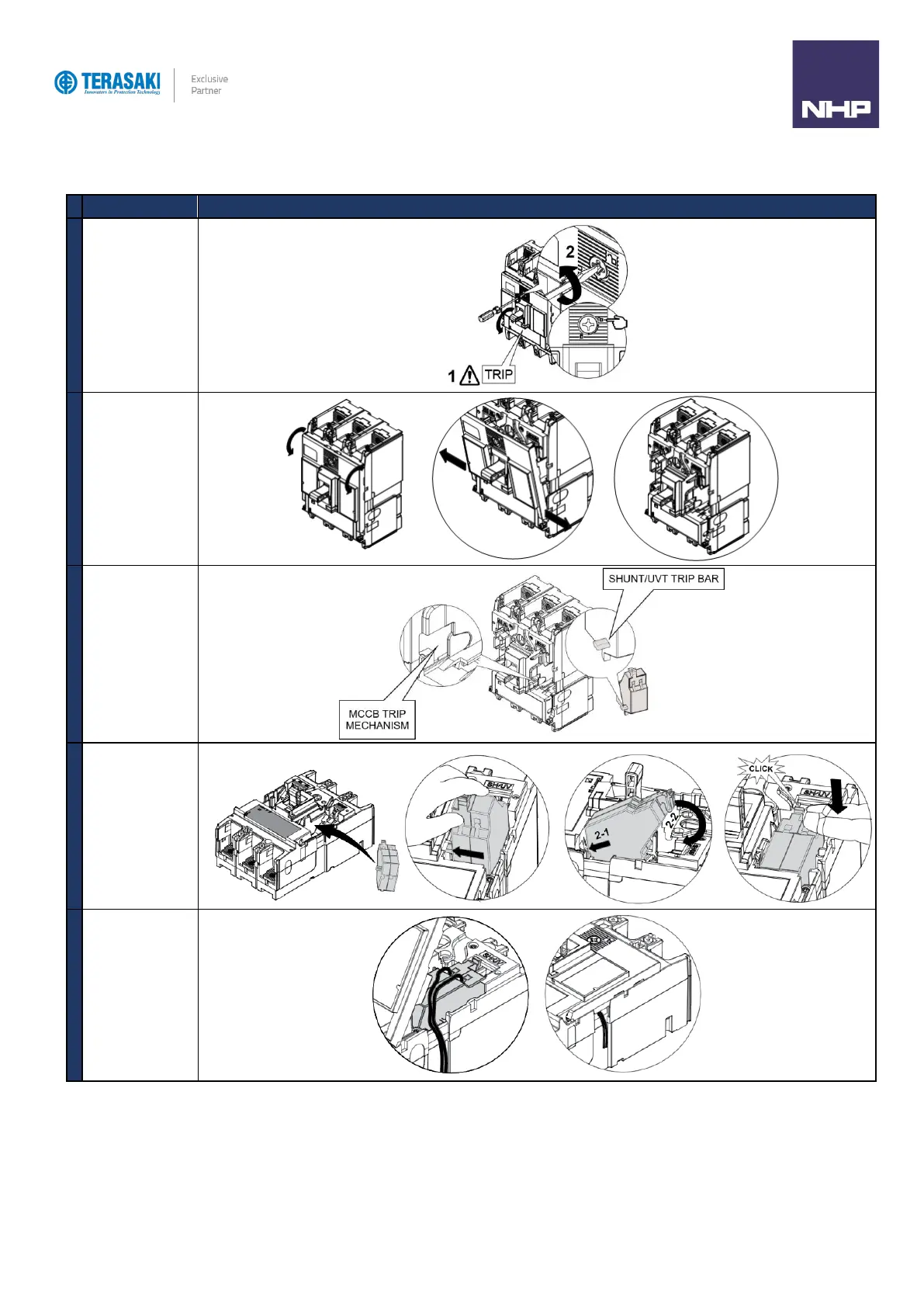

Shunt & UVT installation
Action
Note
1
Switch the Smart
MCCB to the Tripped
Position.
2
Open the front cover of
the MCCB.
3
Locate the shunt or
UVT’s trip bar into the
MCCB trip mechanism
slot.
4
Position the shunt or
UVT into place and
click in to secure;
follow the images to
the right.
5
Run the wires out the
right-hand side of the
MCCB, through the
allocated grooves.
