Nibe F1155 Series Installer Manual

Caution
For operation of F1155-6 above 75% com-
pressor speed, unlock in menu 5.1.24. This can
produce a louder noise level than the value
stated in the technical specifications.

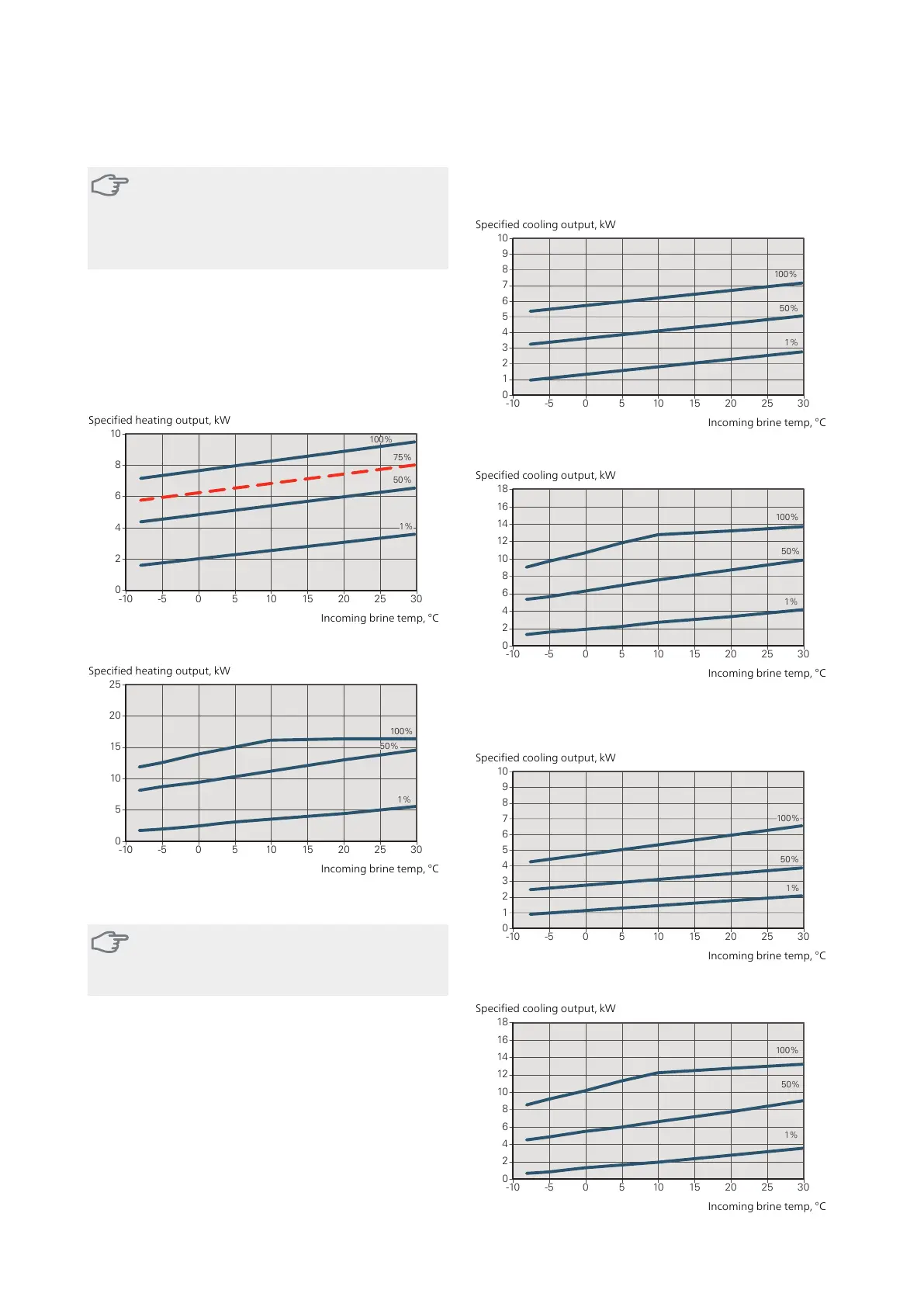

Diagram, dimensioning compressor speed
Heating mode 35 °C
Use this diagram to dimension the heat pump.
The percentage show approximate compressor speed.
F1155-6
Specified heating output, kW
0
-10 -5 0 5 10 15 20 25 30
4
2
6
8
10
Köldbärare in, temperatur
75%
Avgiven värmeeffekt
kW
°C
Dimensionering kompr. hastighet för F1155-1255 -6 kW.
100%
50%
1%
Incoming brine temp, °C
F1155-12
Specified heating output, kW
Avgiven värmeeffekt
kW
°C
Dimensionering kompr. hastighet för F1155-1255 -12 kW 230 V.
0
-10 -5 0 5 10 15 20 25 30
10
5
15
20
25
Köldbärare in, temperatur
100%
50%
1%
Incoming brine temp, °C
Cooling mode (Accessory required)
Caution
To dimension heating dump, see the diagram
for heating operation.
Supply temperature, heating medium 35 °°C
F1155-6
Specified cooling output, kW
Framledningstemp. Värmebärare 35 °C för F1155-1255 -6 kW.
Avgiven kyleffekt
kW
°C
0
-10 -5 0 5 10 15 20 25 30
5
4
3
2
1
6
7
8
9
10
Köldbärare in, temperatur
100%
50%
1%
Incoming brine temp, °C
F1155-12
Specified cooling output, kW
Framledningstemp. Värmebärare 35 °C för F1155-1255 -12 kW 230V.
Avgiven kyleffekt
kW
°C
0
-10 -5 0 5 10 15 20 25 30
6
8
2
4
12
10
14
16
18
Köldbärare in, temperatur
100%
50%
1%
Incoming brine temp, °C
Supply temperature, heating medium 50 °°C
F1155-6
Specified cooling output, kW
Framledningstemp. Värmebärare 50 °C för F1155-1255 -6 kW.
Avgiven kyleffekt
kW
°C
0
1
-10 -5 0 5 10 15 20 25 30
4
5
2
3
7
6
8
9
10
Köldbärare in, temperatur
100%
50%
1%
Incoming brine temp, °C
F1155-12
Specified cooling output, kW
Framledningstemp. Värmebärare 50 °C för F1155-1255 -12 kW 230V.
Avgiven kyleffekt
kW
°C
0
-10 -5 0 5 10 15 20 25 30
6
8
2
4
12
10
14
16
18
Köldbärare in, temperatur
100%
50%
1%
Incoming brine temp, °C
NIBE F1155Chapter 12 | Technical data66

Nibe F1155 Series Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Installation	Indoor
Heating Capacity	1.5-16 kW
Cooling Capacity	Not applicable
Power Input Cooling	Not applicable
EER Cooling	Not applicable
Weight Outdoor Unit	Not applicable
Dimensions Outdoor Unit (HxWxD)	Not applicable
Dimensions Indoor Unit (HxWxD)	600 x 620 mm
