18
11 - OPTIONAL INPUTS / OUTPUTS
10 - ACCESSORIES AND SENSORS
EXTERNAL ENTRAPMENT PROTECTION
Non contact and contact sensors must be installed individually or in
combination with each other to provide external entrapment protection.
Care should be exercised to reduce the risk of nuisance tripping, such as
when a vehicle trips the sensor while the gate is still moving, and one or
more non contact sensors shall be located where the risk of entrapment
or obstruction exists, such as the perimeter reachable by a moving gate or
barrier.
A hardwired contact sensor shall be located and its wiring arranged so
that the communication between the sensor and the gate operator is not
subjected to mechanical damage.
A wireless contact sensor such as one that transmits radio frequency (RF)
signals to the gate operator for entrapment protection functions shall be
located where the transmission of the signals are not obstructed or impeded
by building structures, natural landscaping or similar obstruction.
DURING INSTALLATION
• DISCONNECT POWER at the control panel before making any electric
service power connection.
• Be aware of all moving parts and avoid close proximity to any pinch points.
• Know how to operate the manual release.
• Adjust the unit to use the minimum force required to operate the gate
smoothly even during mid travel reversing.
• Place controls a minimum of 8 feet away from the gate so that the user
can see the gate and operate controls but cannot touch the gate or gate
operator while operating the controls.
• Warning signs must be placed on each side of the gate or in high visibility
areas to alert of automatic gate operations.

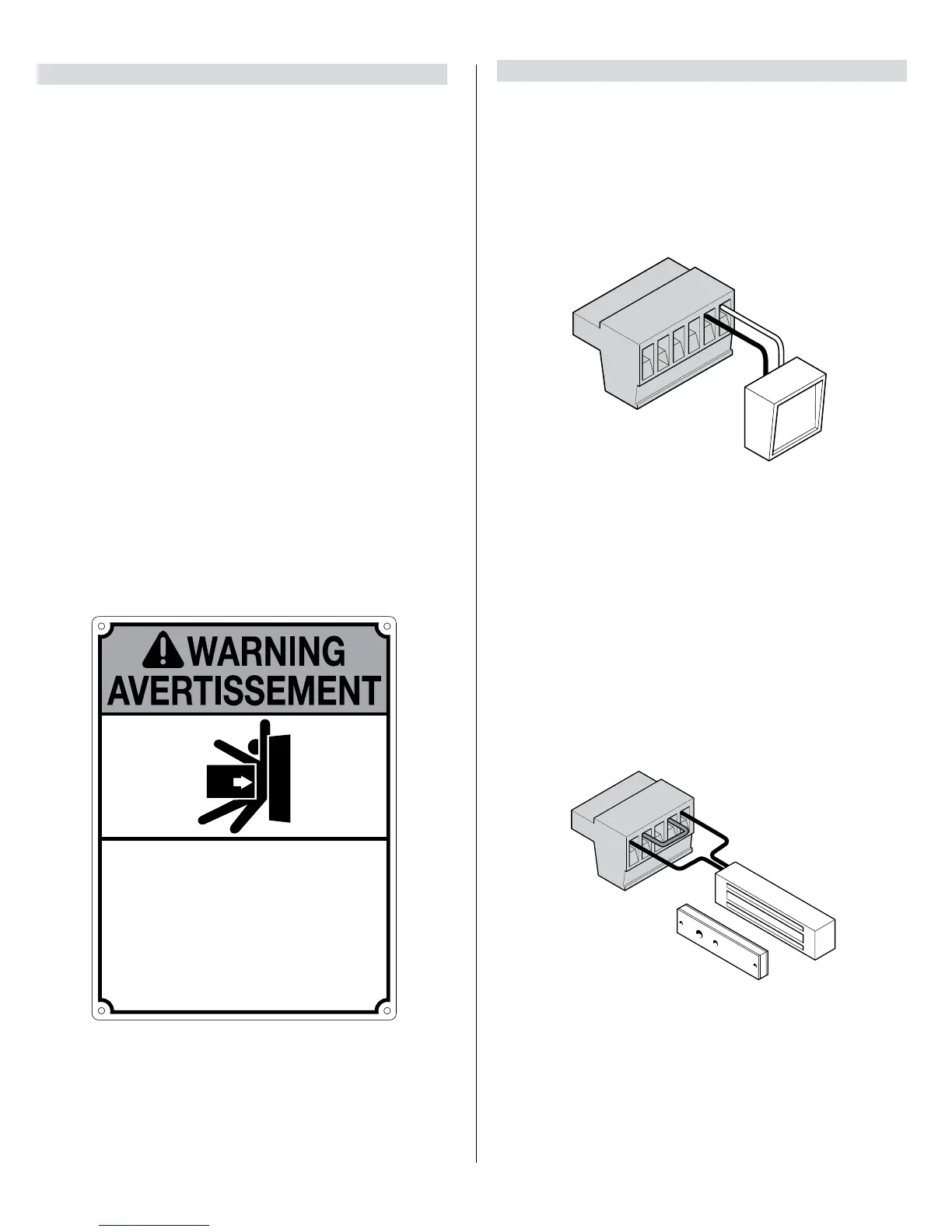

11.1 - Fire department connection
32 FIRE
33 GND
Dry contact input for a re department control switch. Normally Open (NO)
contact must be shorted to ground through a switch to open the gate.
11.2 - Magnetic lock connection
7 NC
8 Com (Common)
9 NO
10 GND
11 V+
This connection is used to install the magnetic lock. In this instance a gate
can be locked magnetically to prevent a forced opening. Consult lock manual
for specics on installation and wiring.
Moving Gate can cause
Serious Injury or Death.
Persons are to keep clear! The gate is able to be moved without prior warning.
Do not allow children to operate gate or play in gate area.
This entrance is for vehicles only. Pedestrians must use separate entrance.
Le portail en mouvement peut causer
des blessures graves ou la mort.
Les personnes ne devront pas s’approcher!
Le portail est capable d'être bougé sans avertissement préalable.
Ne pas laisser les enfants utiliser le portail ou jouer dans le domaine du portail.
Cette entrée est réservée aux véhicules.
Les piétons devront utiliser une entrée séparée.
28
29
30
31
32
33
FIRE
7
8
9
10
11
