Nice Apollo 1724 - 14 General Layout and Safety Access

23
14 - GENERAL LAYOUT AND SAFETY ACCESS

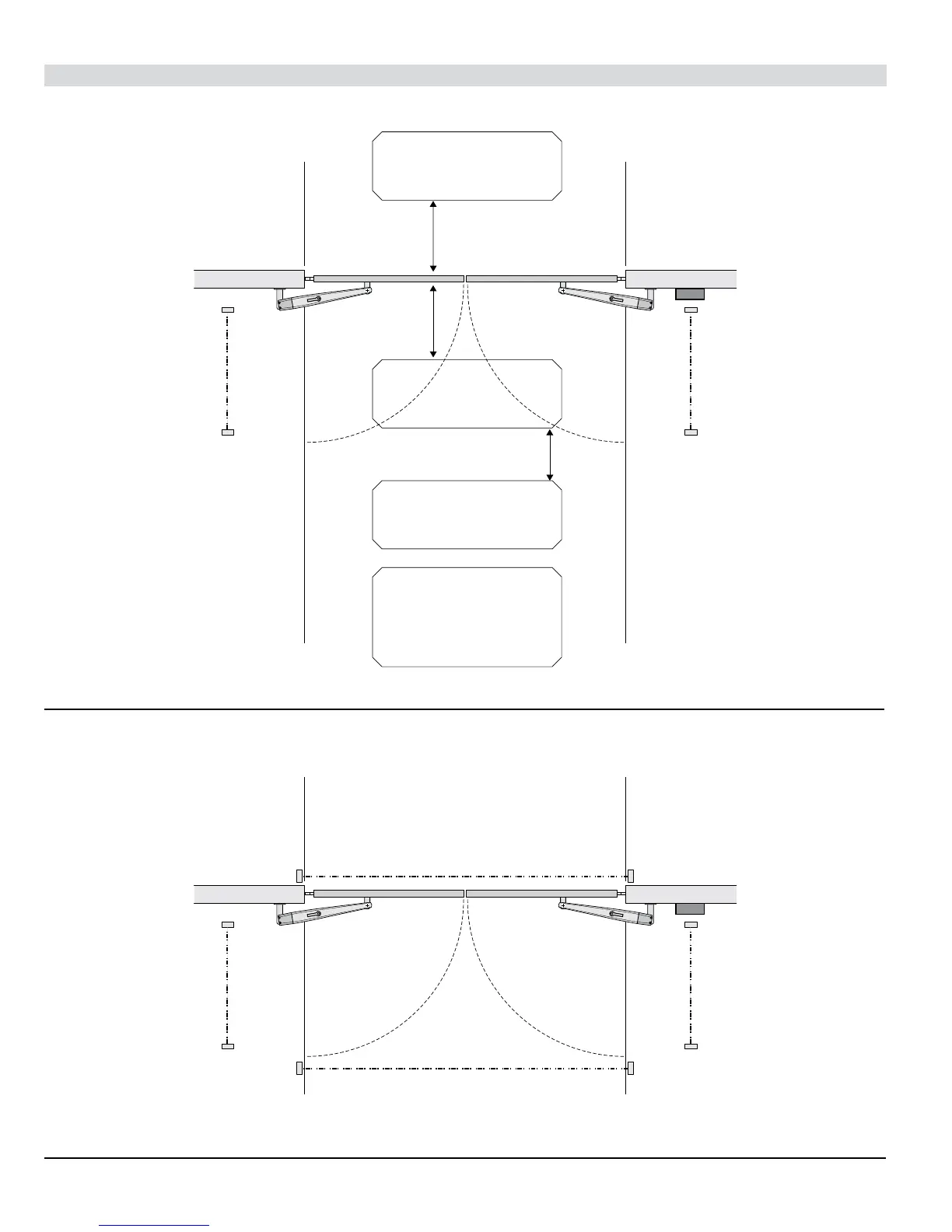

Entrapment Protection Inputs - Typical Installation Diagram Utilizing Loop Sensors and Photocells
GENERIC LAYOUT FOR IN-GROUND LOOPS
Entrapment Protection Inputs - Typical Installation Diagram Utilizing Photocells
GENERIC LAYOUT FOR PHOTOCELLS
Loop (safety)
Loop (shadow)
Loop (safety)
Loop (free exit)
Photo 2 Photo 2
Outside property
Inside property
4’ Min. from closed gate
4’ Min. from closed gate
Outside property
Inside property
Photo 2 Photo 2
Photo 1
4’ Min. from closed gate
