TITAN 912L Linear Actuator
Installation Reference Manual
99
1. Place gate in:
a) CLOSED position for PUSH-TO-OPEN congurations (FIG-4A).
b) OPEN position for PULL-TO-OPEN conguration (FIG-4B).
2. With actuator arm fully retracted, rotate entire actuator on the pivot arm around until the gate bracket
attached to the actuator is positioned on a supporting structure of gate.
3. Mark position of gate bracket on gate or clamp into position.
4

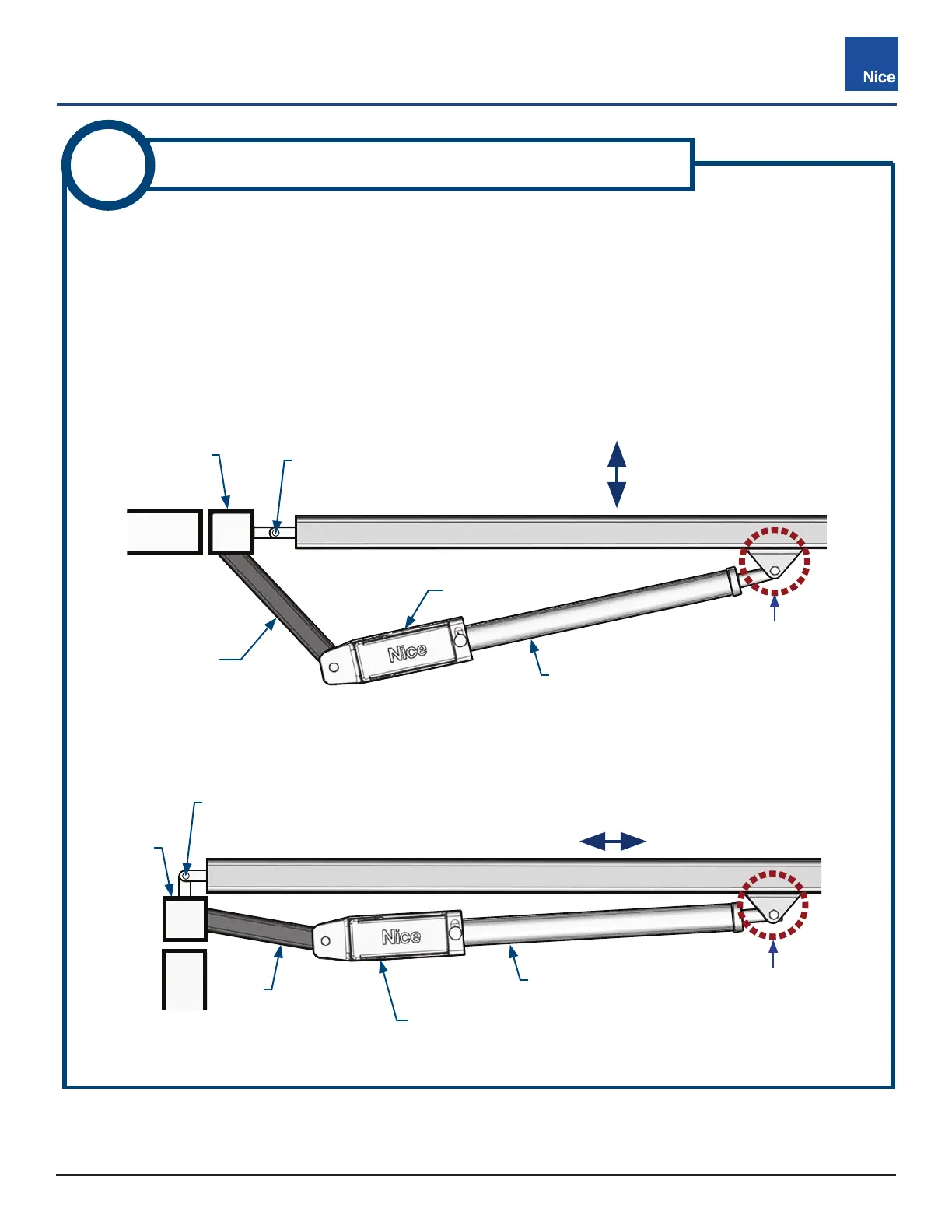

POSITION GATE BRACKET ON GATE
GATE OPEN (PULL-TO-OPEN)
FIG-4B: PULL-TO-OPEN GATE BRACKET LOCATION
ACTUATOR
PIVOT
ARM
GATE BRACKET
LOCATION
TRAFFIC DIRECTION
ARMATURE FULLY
RETRACTED
WALL
HINGE
HINGE
POST
FIG-4A: PUSH-TO-OPEN GATE BRACKET LOCATION
GATE CLOSED (PUSH-TO-OPEN)
GATE BRACKET
LOCATION
TRAFFIC
DIRECTION
ARMATURE FULLY
RETRACTED
WALL
HINGE
POST
HINGE
PIVOT ARM
ACTUATOR
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com
