III Names of Parts and Their Functions
1 DS Camera Control Unit DS-L1
- 7 -

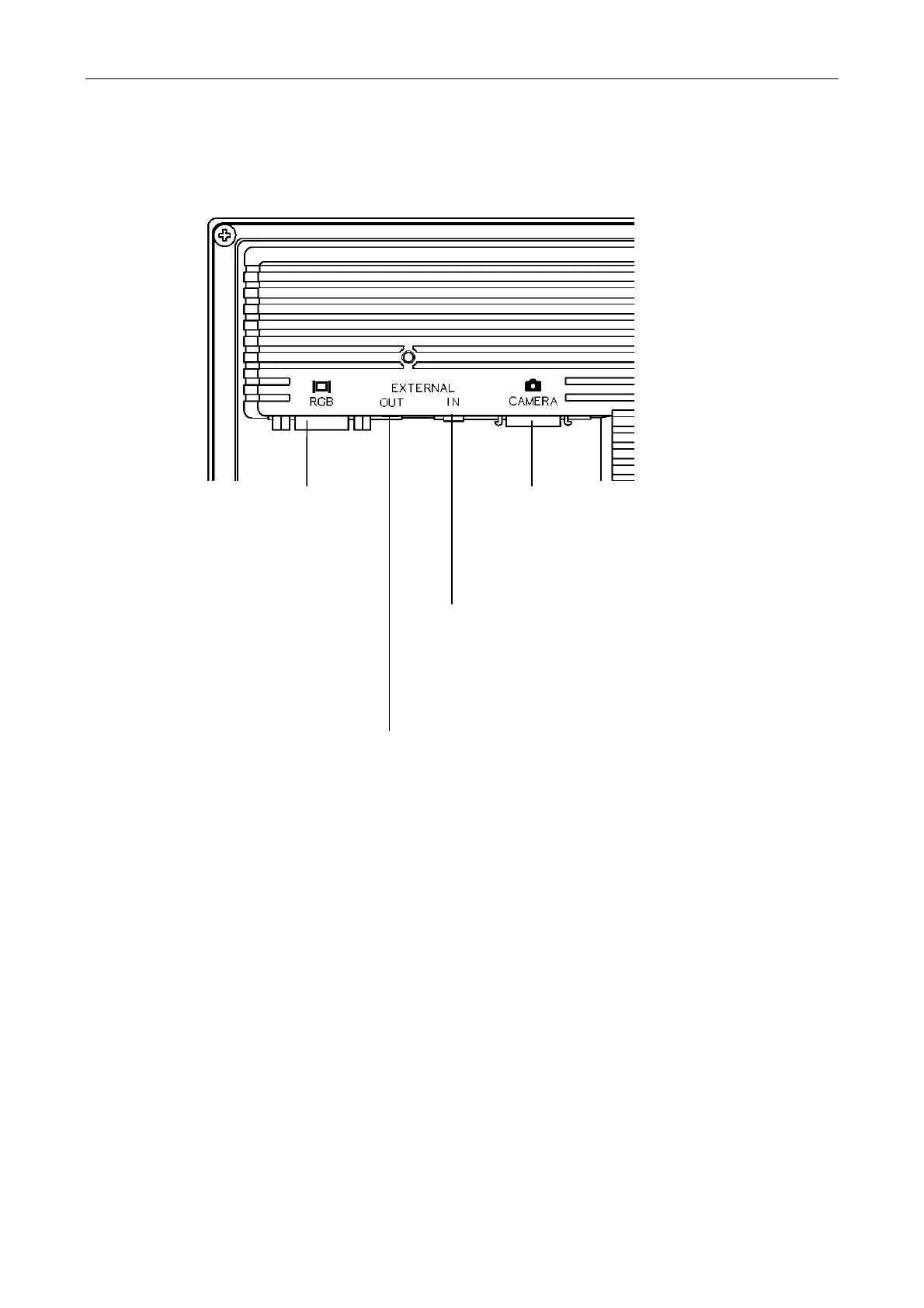

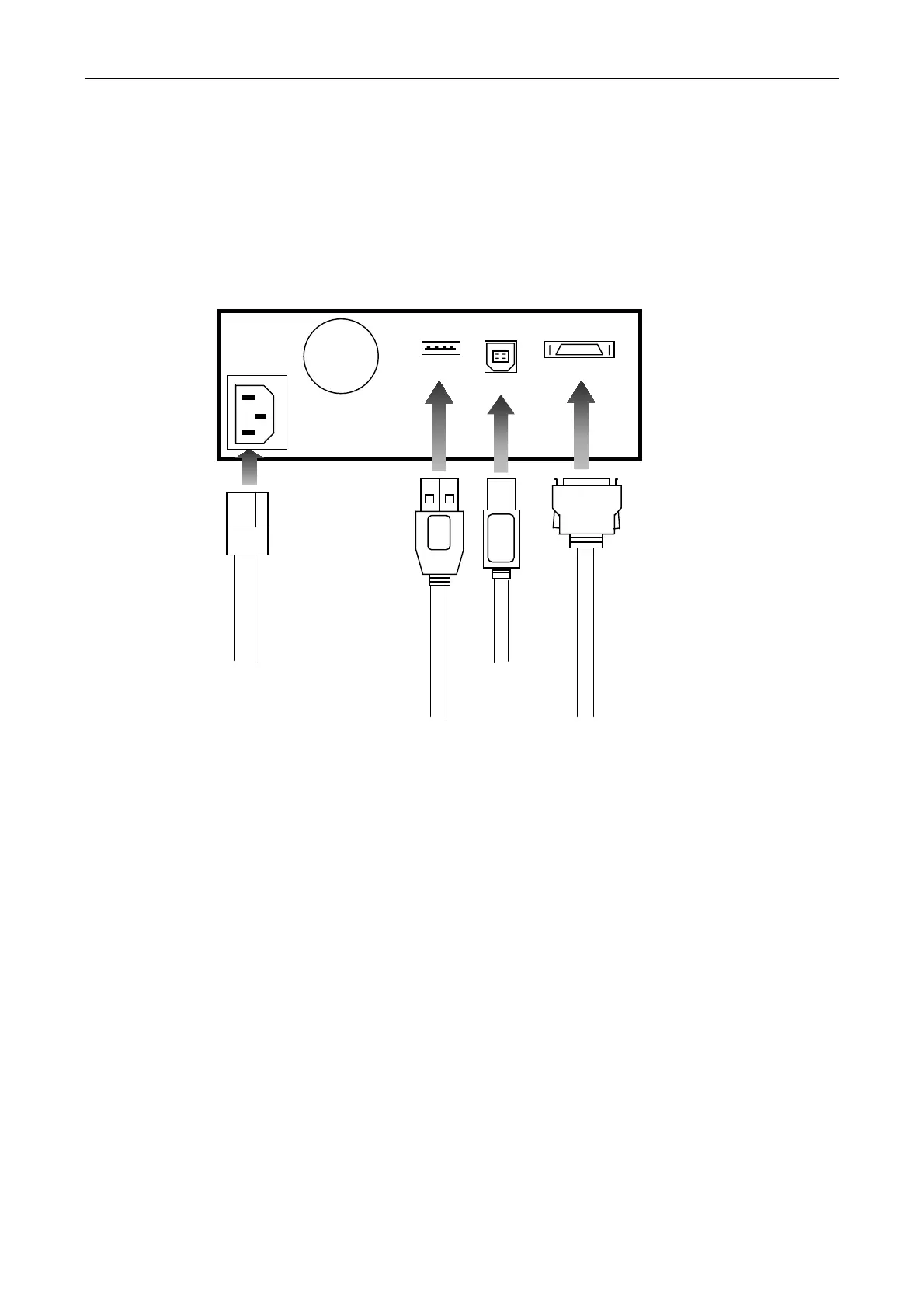

Rear of the DS-L1
RGB connector
Use this connector to
connect an external
monitor.
External interface output
Connect a stroboscope or other external device here. This output
generates a synchronizing signal when capturing an image,
enabling the strobe light to be turned on synchronously.
Refer to “3 Connection Methods” in Chapter IV for details on the
interface specifications.
External interface input
Connect the DS Remote Controller DS-RC here, and you can perform
freeze and capture operations from the DS-RC. A foot switch, etc.,
may also be used, providing it meets the interface specifications.
Refer to "3 Connection Methods" in Chapter IV for details on the
interface specifications.
Camera connector
Connect the DS Camera Head DS-5M or the DS Cooled
Camera Head DS-5Mc to this connector.
* Always be sure to turn off the power before connectin
or
disconnectin
the camera head to or from this connector.
Failure to do so may result in malfunction.
