Chapter 4 Assembly
54
5

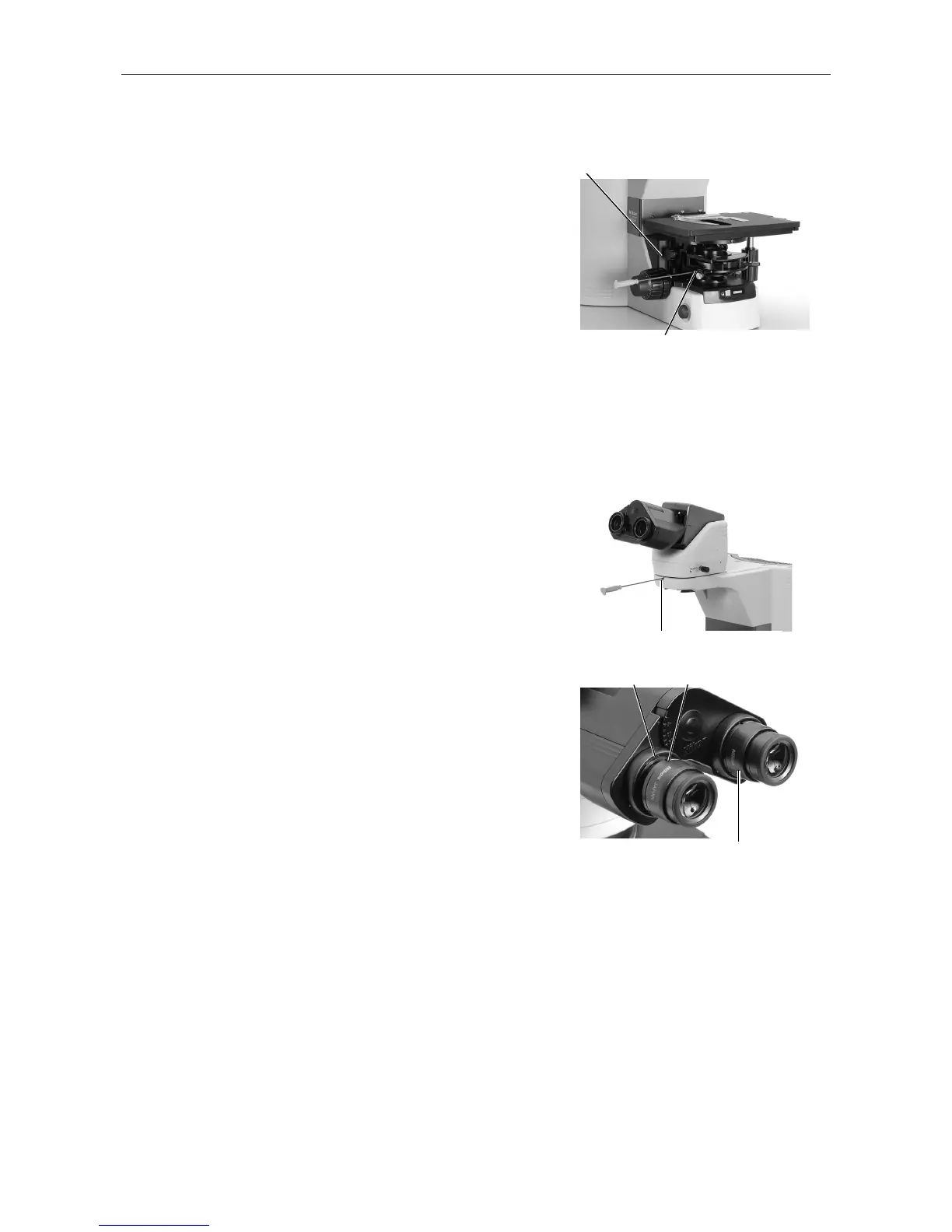

Installing a Condenser
(1) Turn the coarse focus handle until the
elevating section is raised to the highest
position.
(2) Turn the condenser focus knob until the
elevating section is brought to the lowermost
position.
(3) Insert a condenser and adjust so that it faces
toward the front. Secure in place with a tool
stored in the back of the microscope.
(4) Turn the condenser focus knob until the
elevating section is raised to the uppermost
position.
6
Installing an Eyepiece Tube directly
(1) Place an eyepiece tube on the microscope
arm.
(2) Attach the eyepiece by aligning the projection
of the eyepiece tube sleeve with the notch at
the objective.
(3) Attach a screw hole protection sticker
provided with the system to the bolt hole
found on the top surface of the arm.
Fixing condenser
Condenser focus knob
E
To Next Page
