Nikon ECLIPSE 80i User Manual

Chapter 4 Assembly
56
8
Using the DIH-M

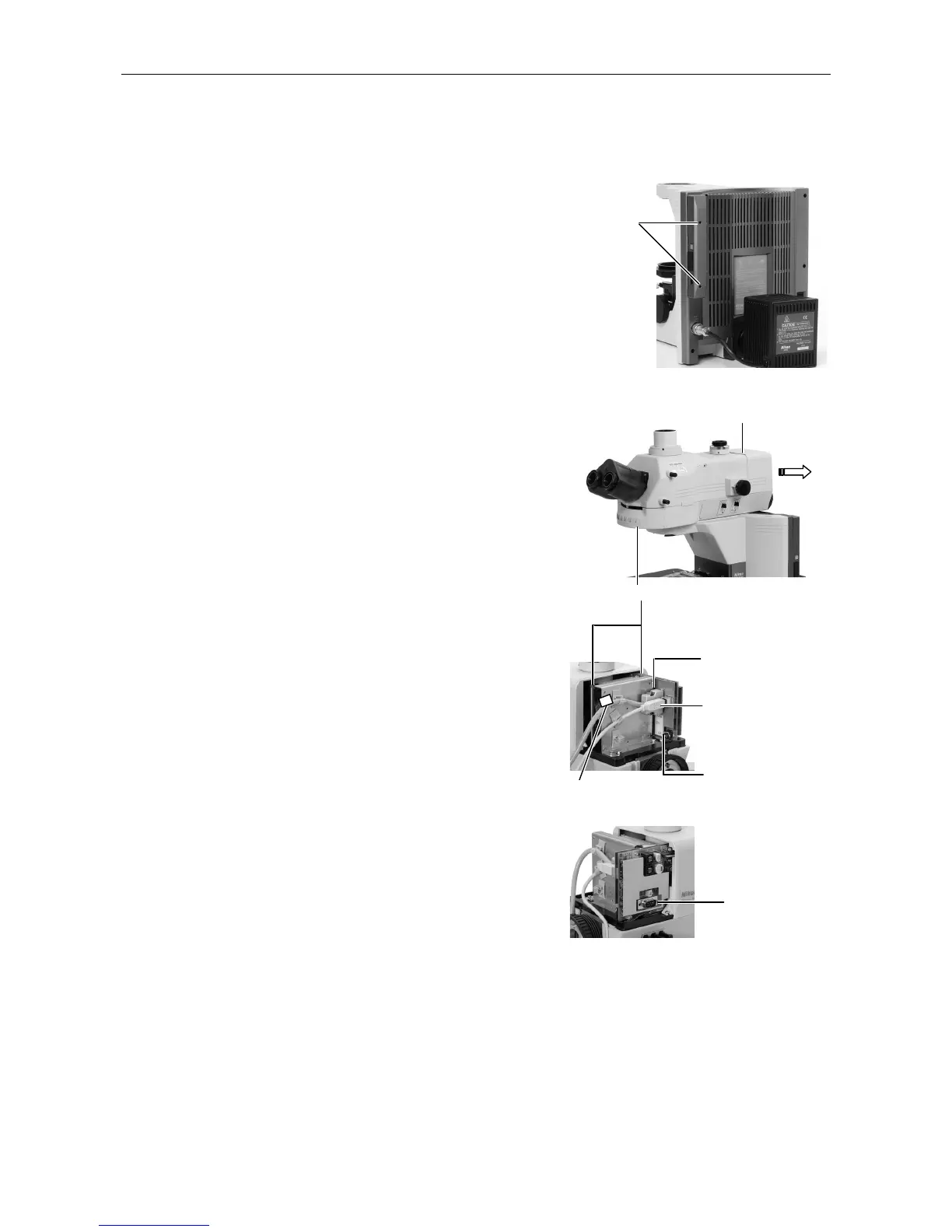

(1) Attach two C-BOXs to the back of the
microscope with screws.
(2) Place the DIH-M on the microscope arm and
fix it with a screw at the front of the arm.
(3) Remove the back cover of the DIH-M by
loosening the two screws.
(4) Fix the DIH-M to the microscope with two
screws inside the arm.
(5) Connect the ferrite core side of the control
cable to the CTL connector. When inspecting
DIH-M conditions, also attach the USB cable.
In this case, the other end of the USB cable is
connected to the PC.
(The control cable and the USB cable are
provided with the DHI-M.)
(6) Replace the cover.
C-BOX
fixing
Viewed from the
other side
Cover fixin
g
screw
DIH-M fixin
g
screw
(
Three
p
ositions
)
Control cable
USB cable (Always
connect this cable
when inspecting
DIH-M conditions.)
For maintenance
(not used)
Interlock connector
for C1 (Used only
with C1 attached)
Ferrite core
