Chapter 4 Assembly
105
9
Replacing the dia illumination lamp
Caution
• The lamp, the dia pillar illuminator, and the power supply must be used in specific
combinations. See page 55 to select the correct combination of the devices. Be sure to use
the specified lamps.
• When replacing the lamp, turn off the power switch and unplug the power cord.
• The lamp and its surroundings will be hot while the lamp is on and immediately after it is
turned off. When replacing the lamp, wait approximately 30 minutes after turning off the
lamp, and make sure that the lamp has cooled sufficiently before working.
• Do not touch the lamp glass with your bare hands. Fingerprints and other dirt on the lamp
may result in uneven illumination and reduce the service life of the lamp. Wear gloves when
handling the lamp.
• Securely close the lamphouse cover after replacing the lamp. Never turn on the lamp with
the cover removed.
(1) For TI-DH Dia Pillar Illuminator 100W

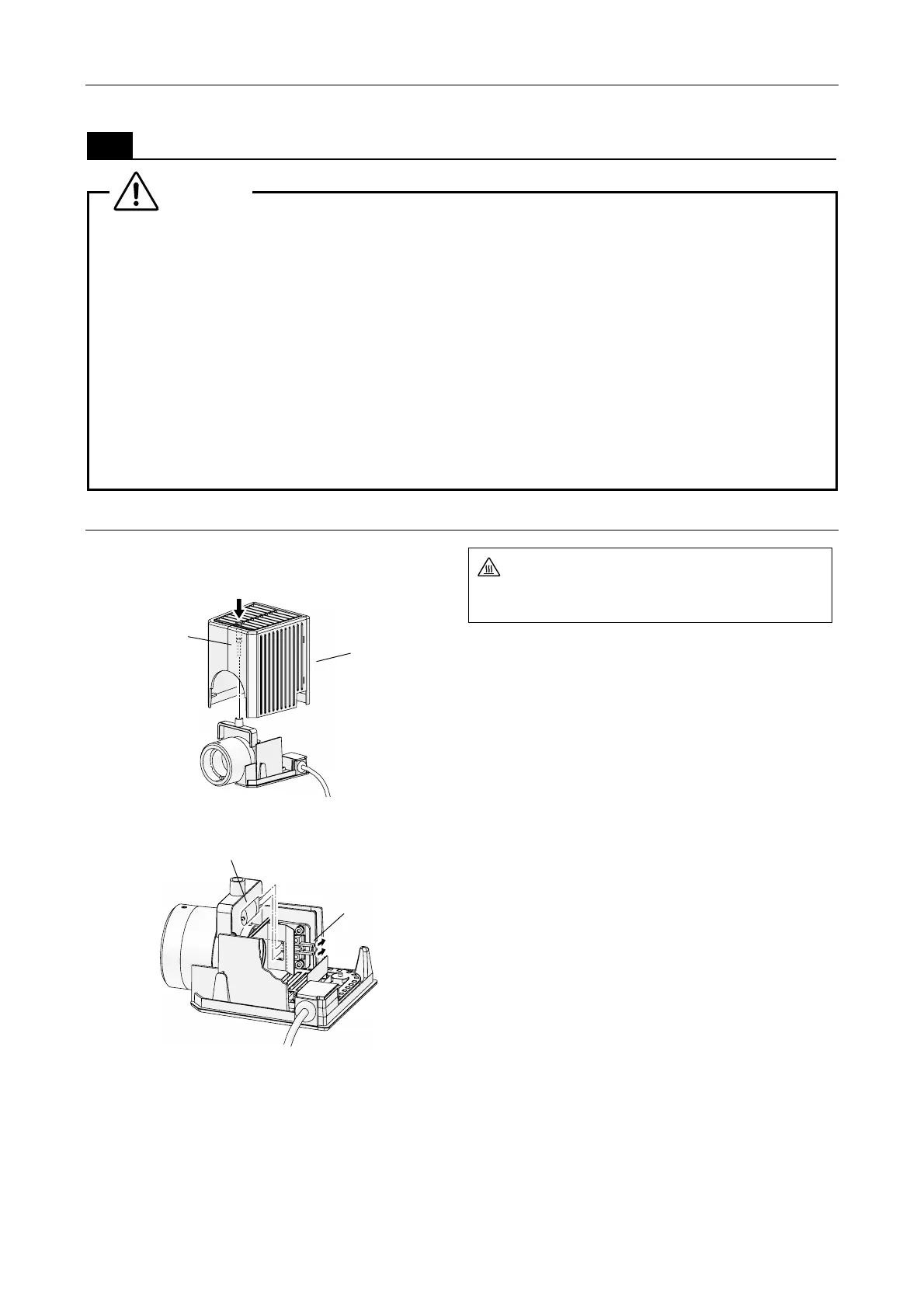

Figure 4-31 Lamphouse Cover Removal
Figure 4-32 Lamp Replacement
CAUTION: HOT - Do not touch the lamp and
the lamphouse while the lamp is on or for thirty
minutes after it has been turned off.
1. Insert a hex wrench into the hole on the top of
the lamphouse cover. Loosen the clamp
screw and remove the lamphouse cover.
2. Push in the lamp clamp lever and remove the
used lamp from the socket.
3. Insert a new lamp into the socket.
While pushing in the lamp clamp lever, push the
lamp electrodes (pins) into the pinhole in the
socket. Insert the lamp to the limit, and release
the lamp clamp lever.
• Be sure to use the specified lamp.
• Do not touch the lamp glass with your bare
hands.
• Make sure the lamp is not tilted when the lamp
clamp lever is released.
4. Re-attach the lamphouse cover, and secure it
by tightening the clamp screw.
Clamp screw
Lamphouse
cover
Insert hex wrench and loosen clamp screw.
Remove the lamphouse cover. (Clamp
screw remains attached to the cover.)
Lamp clamp
lever
Lamp
Push in lamp clamp lever to open pin hole on socket.
Remove used lamp while pushing in lever. Attach new lamp.
To Next Page
