Chapter 1 Part Names
1.3 Eyepiece Base Unit, Eyepiece Tube, and Eyepieces
18

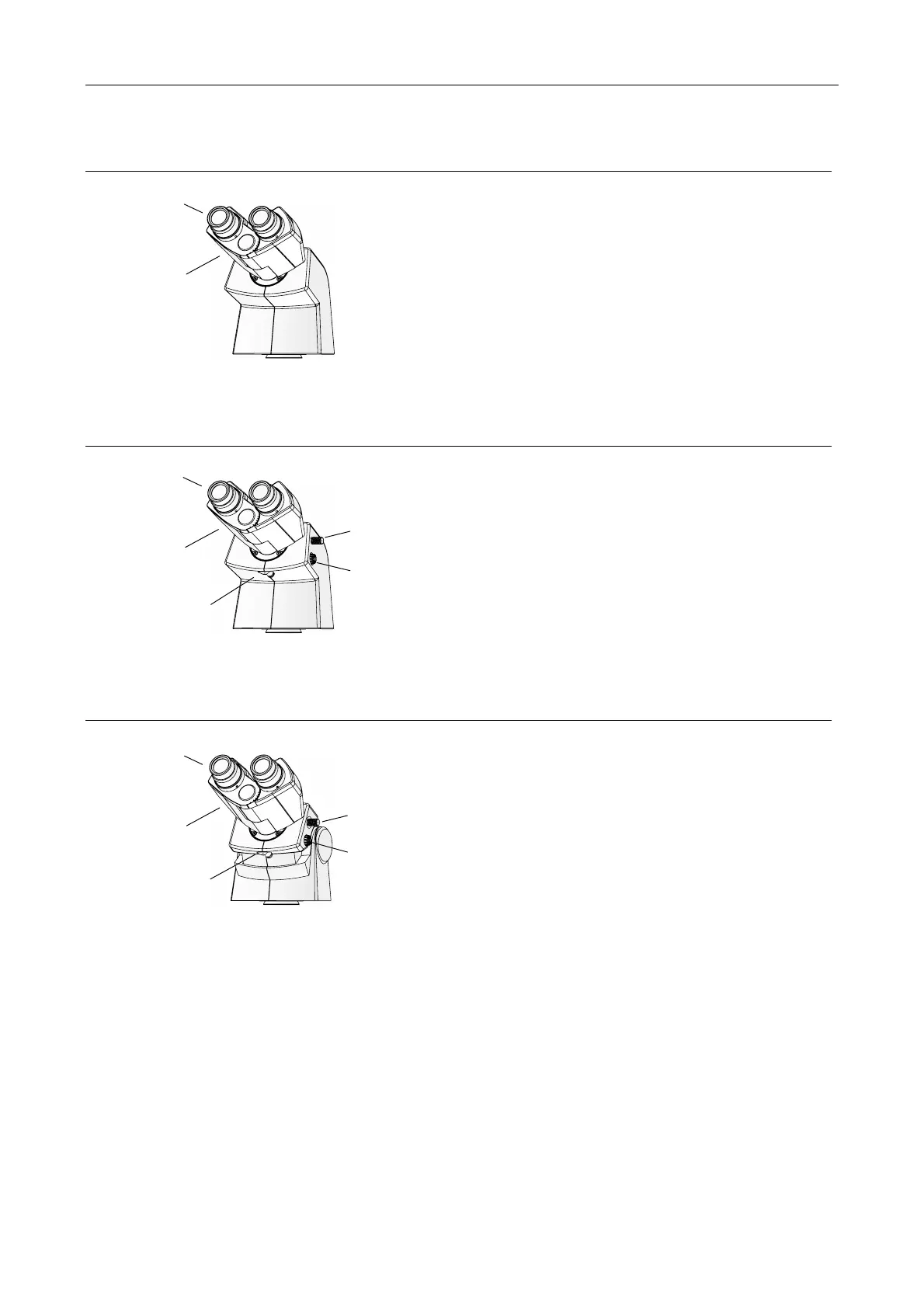

TI-TS Eyepiece Tube B
Figure 1-13 TI-TS Eyepiece Tube B
This is a basic type eyepiece tube.
TI-TD Eyepiece Tube B
B
Figure 1-14 TI-TD
Eyepiece Tube B
This is an eyepiece tube with a manual shutter and a
Bertrand lens.
The optical path for the binocular part can be
blocked with the shutter for photomicrography.
Besides, the objective pupil can be observed when
the Bertrand lens is placed in the optical path.
TI-TERG Ergonomic Eyepiece Tube
B
Figure 1-15 TI-TERG
Ergonomic Eyepiece Tube
This is an eyepiece tube with a tilt mechanism for
user's physical attribute.
This eyepiece tube has a manual shutter and a
Bertrand lens. The optical path for the binocular part
can be blocked with the shutter for
photomicrography. Besides, the objective pupil can
be observed when the Bertrand lens is placed in the
optical path.
Eyepiece
(both sides,
sold separately)
Binocular part
Eyepiece
(both sides,
sold separately)
Binocular part
Shutter
open/close lever
Bertrand lens
focus knob
Bertrand lens
in/out leve
r
Eyepiece
(both sides,
sold separately)
Binocular part
Shutter
open/close lever
Bertrand lens
focus knob
Bertrand lens
in/out leve
r
