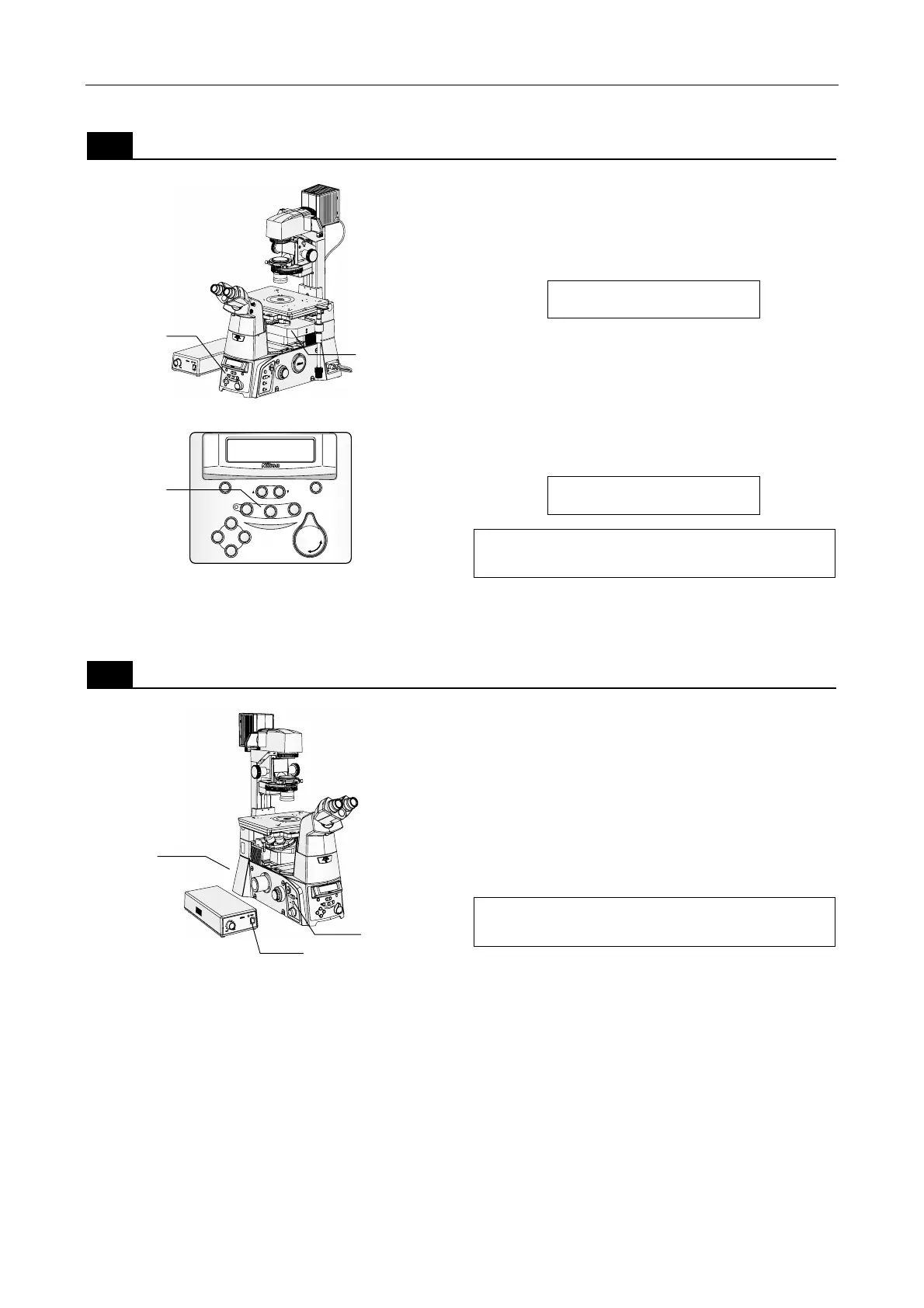

Chapter 2 Microscopy
2.5 In-focus Observation with PFS
52
5
End the operation of the perfect focus system.
B
Coarse
Fine
ExFine
Epi Shutter
FL Block
Refocus
Escape
PFS
OF
FSE
T
O
U
T
DIC
HR
OI
C
MIR
R
OR
I
N
L80
EYE
ME
M
ORY
DISPL
A
Y
ON
Z
-
RESET
1X
1.5X
BRIGHTNESS
R1
0
0
L
1
0
0
FOCUS
PFS
L80
EYE
DISPLAY
MEMORY
PFS
ON RECALL
Z
-
RESETBRIGHTNESS
R100L100
FOCUS
1X
1.5X
1. Turn off the PFS function by pressing the
illuminated PFS-ON switch.
The PFS information display will change to “PFS:
Off”.
PFS control stopped
____________10x/0.25
E100_ Coarse__PFS:Off
2. Move the dichroic mirror out of the optical
path by moving the DICHROIC MIRROR -
IN/OUT lever on the top of the PFS Motorized
Nosepiece to the “OUT” position.
The PFS information display will change to “PFS:
Out”.
Dichroic mirror: Out
____________10x/0.25
E100_ Coarse__PFS:Out
Be sure to stop the PFS function before changing
the specimen or ending the observation.
6
End the observation.
Coarse
Fine
ExFine
Obj.
ON
OFF
6V30W
MAX.
12V10
L80
EYE
DISPLAY
MEMORY
PFS
ON
RECALL
Z
-
RESET
BRIGHTNESS
R100
L100
FOCUS
1. Turn off the dia illumination by pressing the
dia illumination lamp ON/OFF switch on the
left side of the microscope.
2. Turn off the microscope by pressing the
“OFF” side of the POWER switch on the back
of the microscope.
3. Turn off the power supply by pressing the
“O” side of the POWER switch on the back of
the power supply.
If placing a cover on the microscope, wait until
the lamp has cooled sufficiently.
5-2
5-1
5-1
6-3
6-1
6-2
