Chapter 4 Assembly
94
3
Attaching the eyepiece tube and eyepieces
Attach the eyepiece tube to the eyepiece base unit, and the eyepieces to the binocular part of the eyepiece
tube.

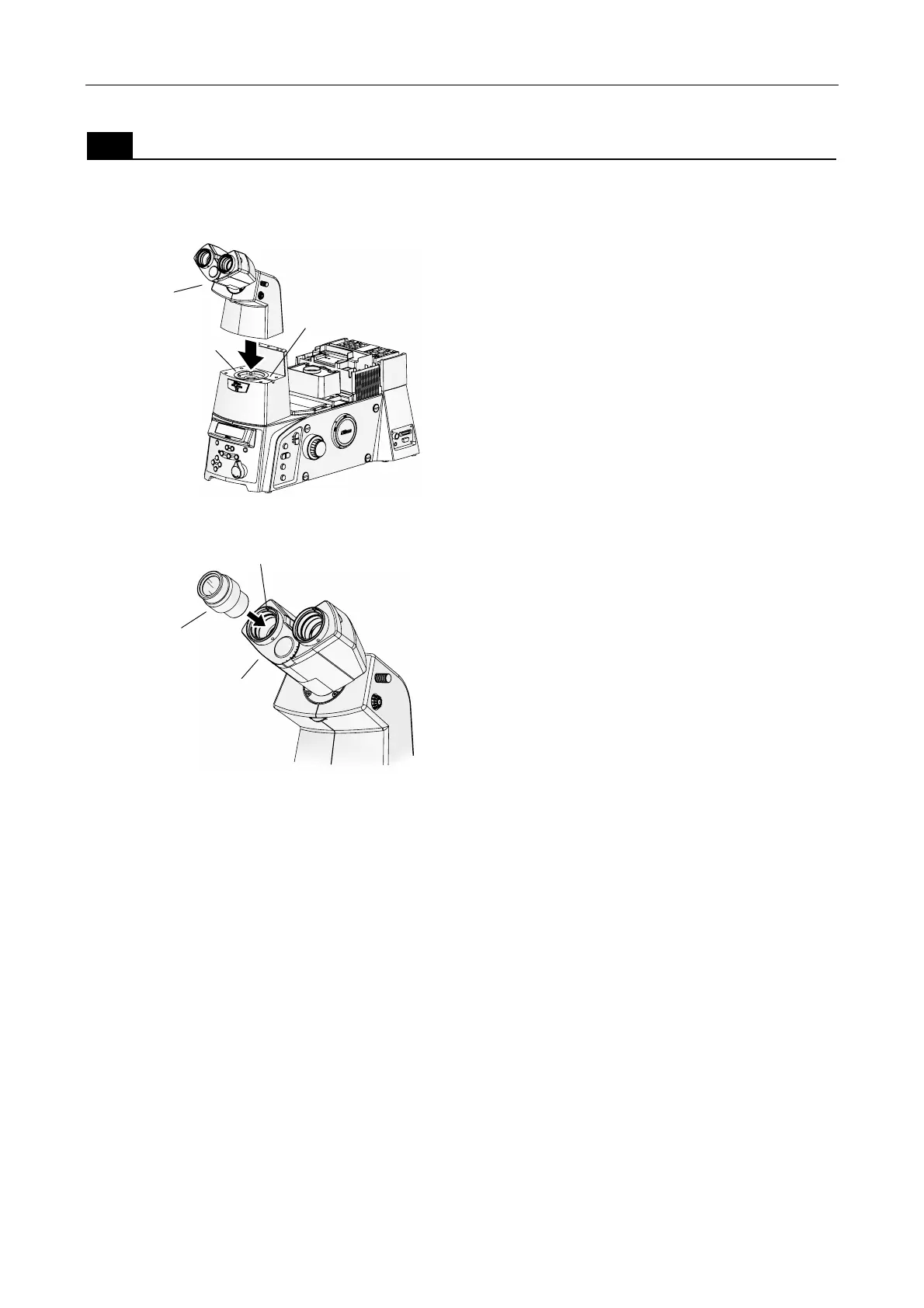

Figure 4-9 Eyepiece tube attachment
Figure 4-10 Eyepiece attachment
1. Using a 2 mm hex screwdriver, loosen the
eyepiece tube clamp screw at the
observation port on the front of the eyepiece
base unit.
2. Mount the eyepiece tube onto the eyepiece
base unit and insert the male circular dovetail
joint on the bottom of the eyepiece tube into
the female circular dovetail joint on the
eyepiece base unit.
3. Tighten the eyepiece tube clamp screw with a
2 mm hex screwdriver. Check that the
eyepiece tube and the eyepiece base unit are
fixed securely.
4. Attach the eyepieces to the binocular part of
the eyepiece tube.
When inserting, align any one of the three
grooves on the eyepiece to the protrusion on the
eyepiece tube sleeve. Select the same
magnification for both left and right eyepieces.
To use rubber eye guards, attach them to the
eyepieces.
Eyepiece tube
Dovetail joint
Eyepiece tube
clamp screw
Protrusion on eyepiece tube sleeve
Eyepiece
Binocular part
