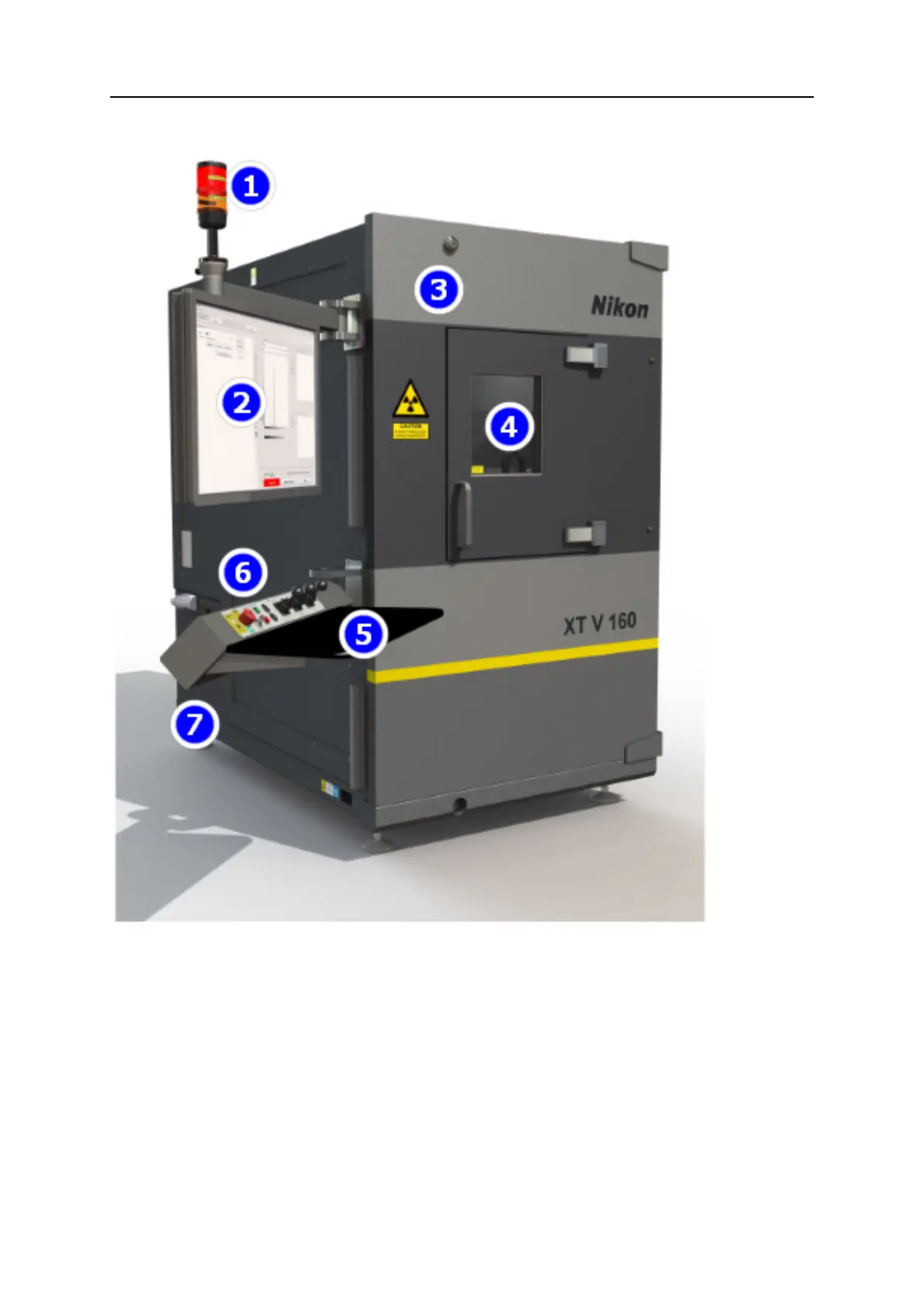

Introduction to the X-ray system
XT V 160 X-ray System XTM0011-F2 25
4.2 Control console
The control console is a single unit that combines the controls used to operate the system
and the joysticks used to move the sample manipulator.
The control console contains the following buttons and switches:
• An EMERGENCY STOP button.
• SYSTEM POWER on (green) and off (red) buttons.
• X-RAY POWER on/off button (white).
• An INTERLOCK key switch.
