54 XTM0011-F2 XT V 160 X-ray System
4. If the level of coolant is low, it should be topped up with coolant, as and when required.
Repeated topping-up may be indicative of a leak in the system.
Replacement coolant is supplied with the Service Kit. Consult the Material Safety Data
Sheet (MSDS) before using this product and take all suitable precautions.

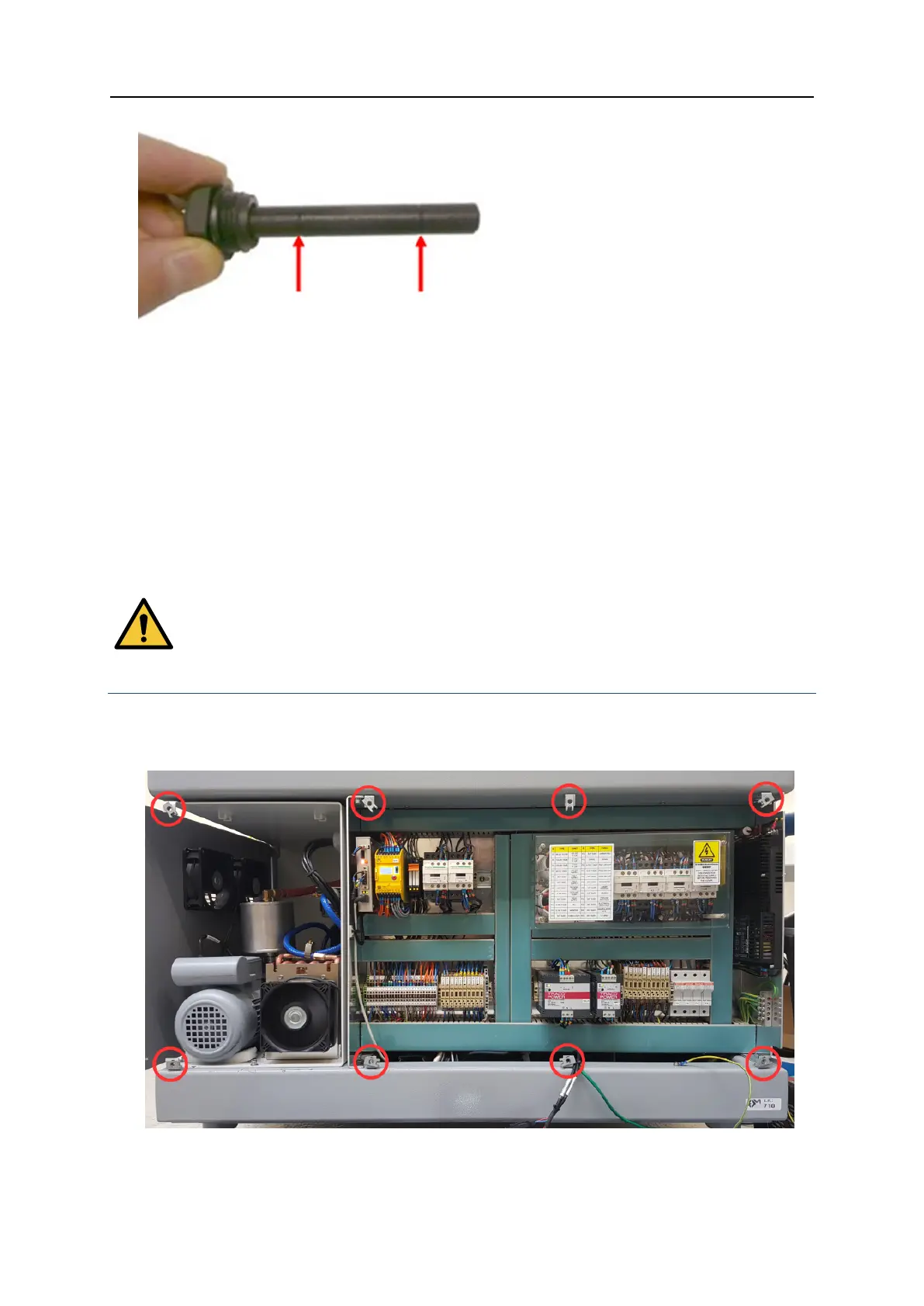

5. Refit the dipstick carefully to ensure the threads are not crossed and do not over-tighten.
6.2.4 Access the mains distribution chassis
The mains distribution chassis is situated at the rear of the machine and runs about two
thirds the width of the machine. The components are located behind a removable panel.
Before you remove this panel, ensure that you read and act on all advice and warnings.
Refer to the Important health and safety information (on page 1) for details.
Unplug the power supply from the machine before removing any
access panels. When checking the system, the area should be marked
out for restricted access with a warning of tripping hazards.
To access the mains distribution chassis, follow these steps:
1. Unplug the power supply from the machine.
2. Remove the chassis cover.
The cover is secured with eight screws.
You can now gain access to the fuses (on page 77), backing pump and cooling system.
To gain access to the computer, remove the access panel on the left side of the machine.
