6
Main screen settings options
The settings options that the user needs in daily life are located on the main screen of the panel. You simply press the temperature for
domestic water or central heating in order to change it.

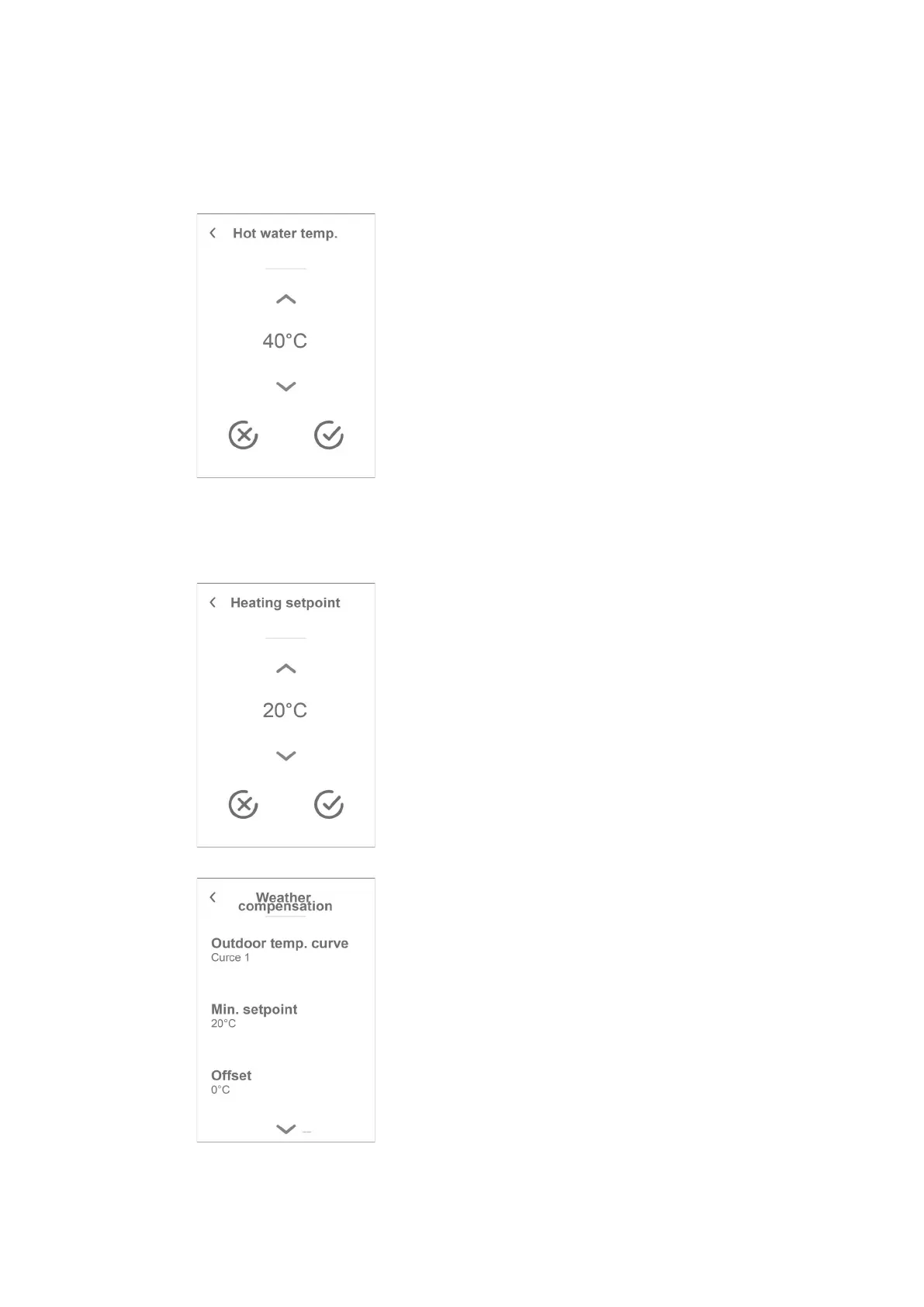

When you press the temperature for domestic water, you will
see the following
panel for the selected setpoint temperature of domestic water:
You can change the hot water temperature by using the up-
and-down arrows. You then confirm by pressing the confirm
icon, bottom right. The main screen of the panel will then be dis-
played again.
If you select the cancel icon, bottom left, the temperature will
revert to the original setting. Following this, you have to press
the arrow, top left. This takes you back to the main screen.
If you press the temperature for central heating, one of the two
panels below will be displayed. Which one depends on whether
you have selected a fixed flow temperature for central heating
or to regulate via weather compensation:
You can change the setpoint temperature for central heating by
using the up-and-down arrows. You then confirm by pressing
the confirm icon, bottom right. The main screen of the panel will
then be displayed again.
If you select the cancel icon, bottom left, the temperature will
revert to the original setting. Following this, you have to press
the arrow, top left. This takes you back to the main screen.
You can change the selected curve for weather compensation
from this panel screen in the same way as described for the
‘Central Heating’ function in ‘Unit Settings’.
