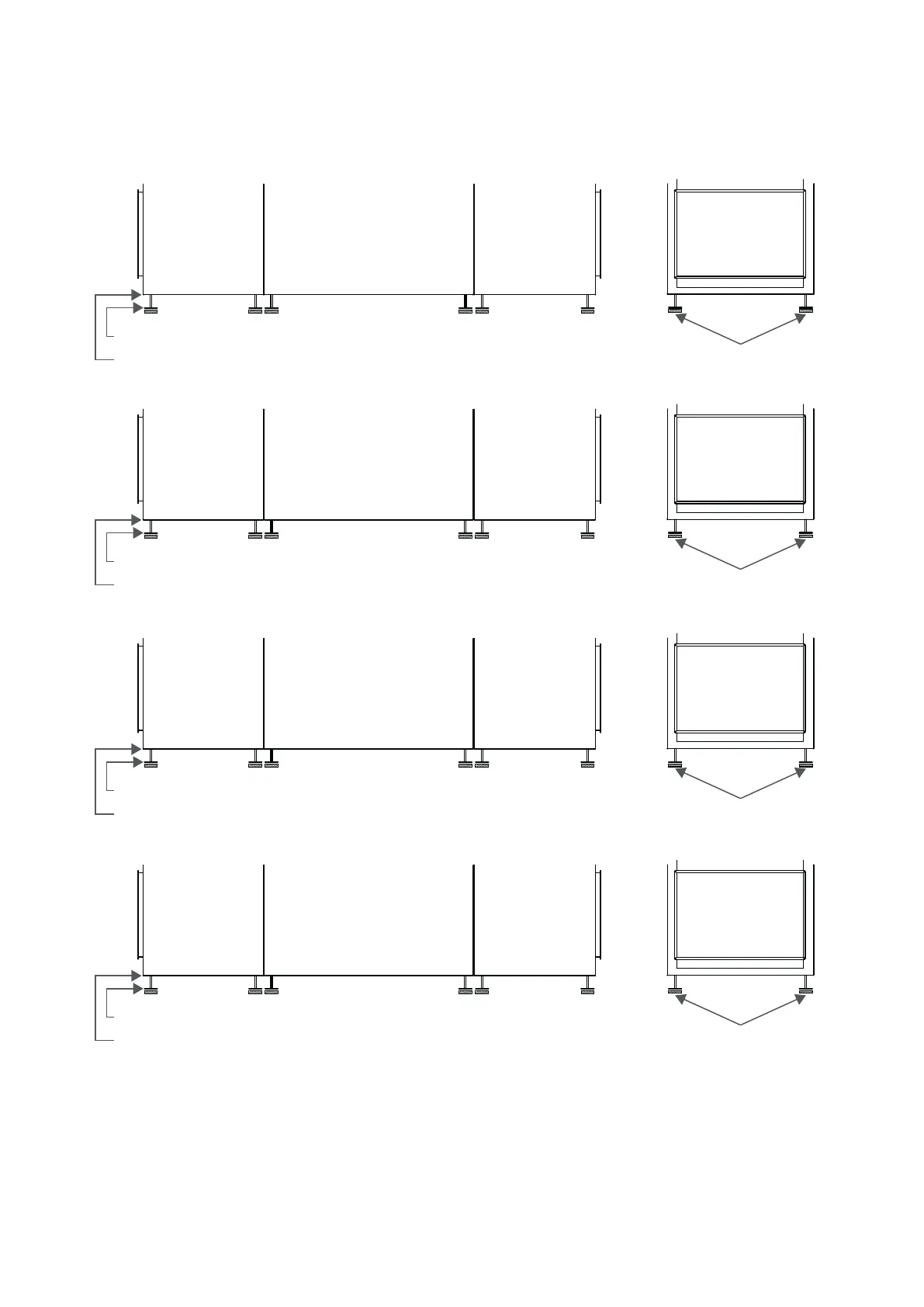

Placing of vibration absorbers
VPM 600
VPM 700-800-1000
VPM 1200-1500
VPM 2200
310kg 720kg 310kg
Med fundament: 8 brun 100x100x25 + 4 rød 100x100x25
Uden fundament: 4 rød 100x100x25 + 8 brun 100x100x25 Placeres både front og bag
425kg 900kg 425kg
Med fundament: 4 rød 100x100x25 + 4 grå 100x100x25
Uden fundament: 4 rød 100x100x25 + 8 brun 100x100x25 Placeres både front og bag
600kg 1200kg 600kg
Med fundament: 4 grå 120x120x25 + 4 rød 120x120x25
Uden fundament: 4 rød 120x120x25 + 8 rød 100x100x25 Placeres både front og bag
750kg 1750kg 750kg
Med fundament: 4 grå 120x120x25 + 4 rød 120x120x25
Uden fundament: 4 grå 100x100x25 + 8 rød 100x100x25 Placeres både front og bag
VPM 3200
Functional diagram VPM 600-3200
910kg 2150kg 910kg
Med fundament: 4 grå 120x120x25 + 4 rød 120x120x25
Uden fundament: 4 grå 100x100x25 + 8 rød 100x100x25 Placeres både front og bag
Placed both front and rear
Placed both front and rear
Placed both front and rear
Placed both front and rear
With base: 8 brown 100x100x25 + 4 red 100x100x25
Without base: 4 red 100x100x25 + 8 brown 100x100x25
With base: 4 red 100x100x25 + 4 grey 100x100x25
Without base: 4 red 100x100x25 + 8 brown 100x100x25
With base: 4 grey 120x120x25 + 4 red 120x120x25
Without base: 4 red 120x120x25 + 8 red 100x100x25
With base: 4 grey 120x120x25 + 4 red 120x120x25
Without base: 4 grey 100x100x25 + 8 red 100x100x25
With base: 4 grey 120x120x25 + 4 red 120x120x25
Without base: 4 grey 100x100x25 + 8 red 100x100x25
Placed both front and rear
