nilan CTS602I HMI User Manual

39
VPM 1500
VPM 2200
VPM 1500
Assessment of SEL value at various airfl ow / pressure losses.
1200
1800
2100
2500
0
200
400
600
800
1000
1200
1400
3500 6000 8500 11000 13500 16000 18500 21000
Pt External pressure drop [Pa]
q
V
[m
3
/h]

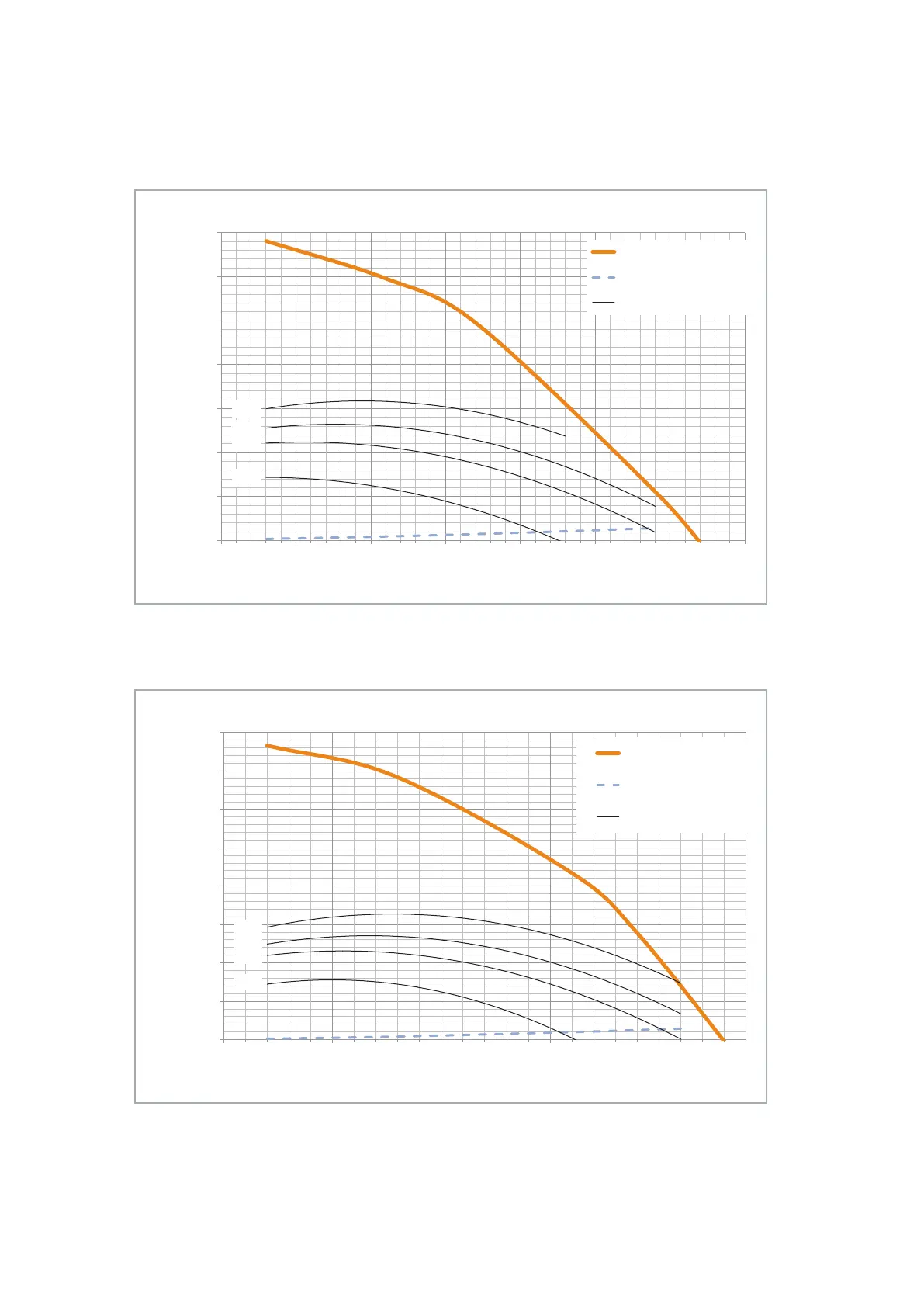

VPM 1500, Air performance curves
Capacity Curve
Pressure drop water coil [Pa]
SFP [J/m3]
VPM 2200
Assessment of SEL value at various airfl ow / pressure losses.
1200
1800
2100
2500
0
200
400
600
800
1000
1200
1400
1600
3000 8000 13000 18000 23000 28000
Pt External pressure drop [Pa]
q
V
[m
3
/h]
VPM 2200, Air performance curves
Capacity Curve
Pressure drop water coil [Pa]
SFP [J/m3]
