26

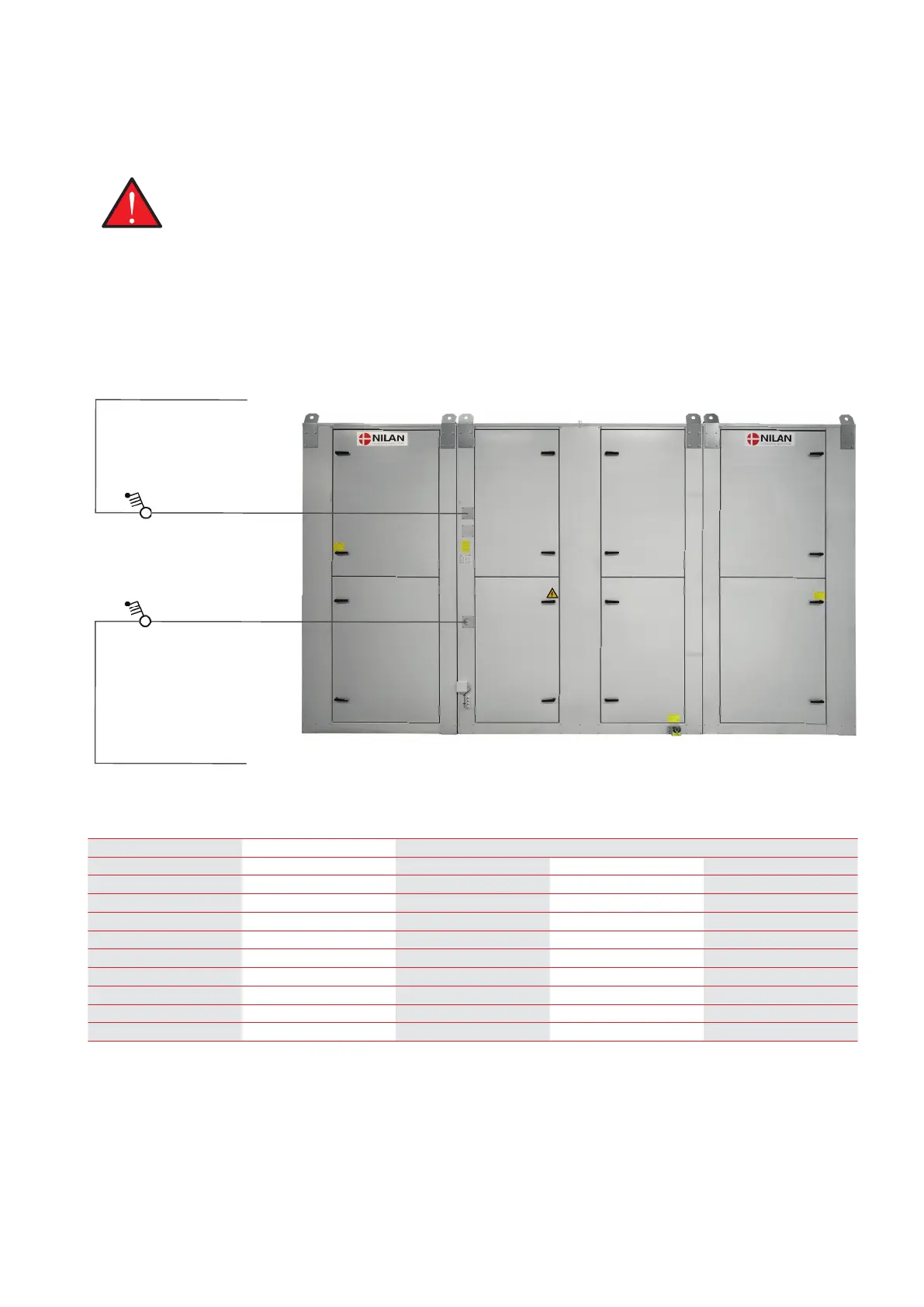

Power supply
Unit
WARNING
The power supply, including the safety switch, must be installed by a certifi ed electrician.
Connect the unit to 3 x 400 V+N+PE.
See also the wiring diagram supplied with the unit.
Unit
The illustration shown is for a left-facing version
:
Ampere consumption depending on selected compressor and fans:
Unit Compressor * Fan (2 motors) total **
MTZ VTZ at 500PA at 1000PA
[Amp] [Amp] [Amp] [Amp]
VPM 600 16 17 4.0 6.2
VPM 700 17 21 4.4 7.6
VPM 800 22 23 6.3 8.3
VPM 1000 31 26 8.3 11.1
VPM 1200 33 37 8.2 14.3
VPM 1500 42 41 10.5 20.5
VPM 2200 44 51 20.5 28.7
VPM 3200 - 65 29 41
* Depending on MTZ / VTZ compressor (confi guration dependent).
** Ampere consumption on fan motors depending on air volume and pressure loss. Calculated based on nominal air volume at
fi nal pressure loss fi lter + external pressure loss = 500Pa and 1000Pa respectively.
Safety switch
Safety switch
Power supply
3x400V 50HZ
Power supply (only for electric-heating surface, illustration shows without water-heating surface)
3x400V 50HZ
