Positioning and installation of unit
Positioning and installation of unit

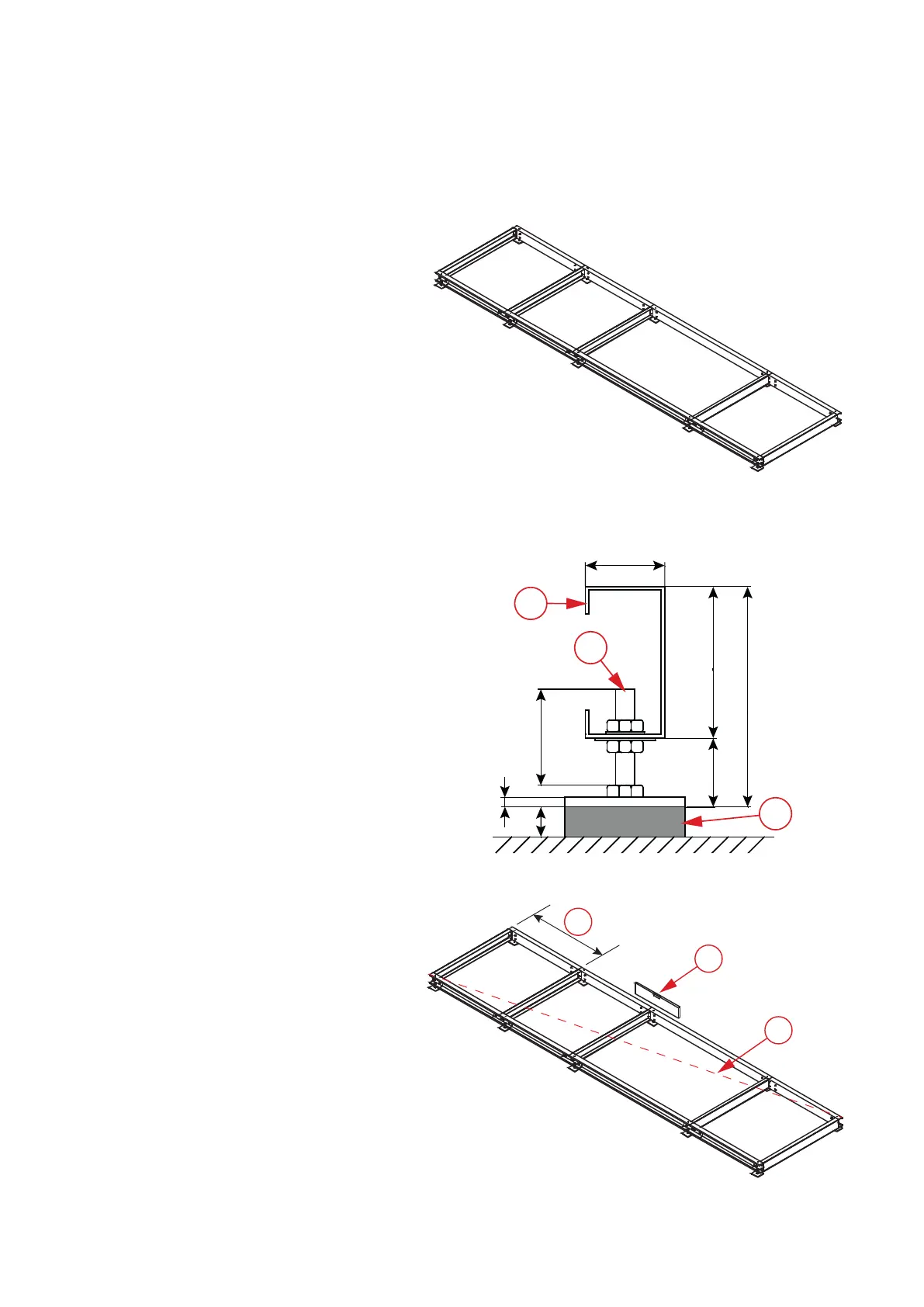

Step 1
Foundation is placed in the desired place.
Step 2
The vibration dampers (sylomes) are placed under
the adjusting screws.
a. Nilan base
b. Adjusting screws
c. Sylomes
126
80
180±20
25
35-75
a
b
c
Step 3
Base is adjusted.
a. This section is for the discharge module and thus
is not present where this is not included in the
delivery.
b. Ensure that the base is level.
c. Make a cross measurement so that the founda-
tion is at an angle.
a
b
c
