27
Control panel
CTS602i HMI Touch
Wall bracket
Control panel
CTS602i HMI Touch

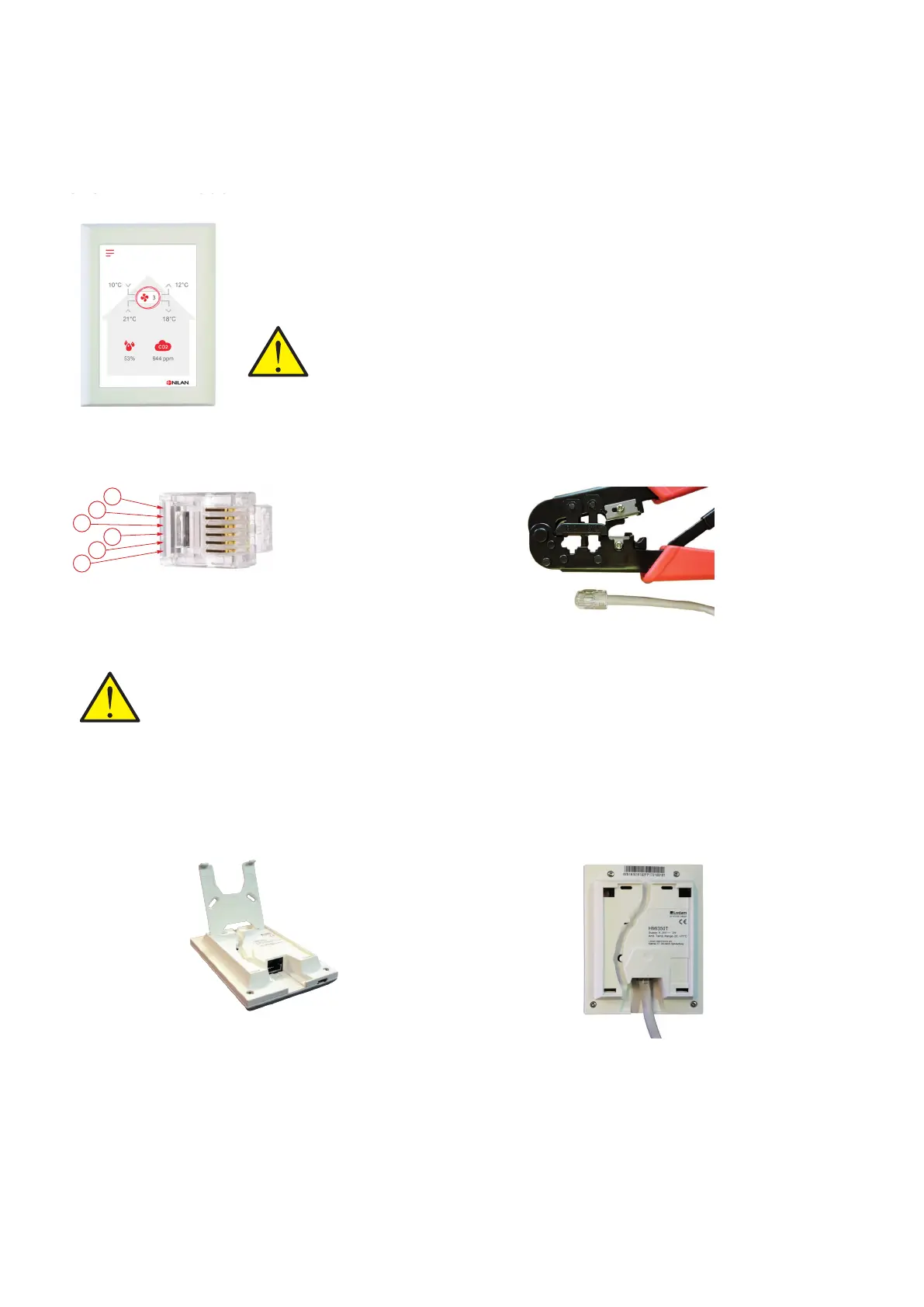

With the CTS602i HMI Touch panel, Nilan’s units can be controlled on-site.
The control panel comes connected to the CTS602i control system in the unit via the connection
box on the side of the unit. It is supplied with a 3 meter Cat.5e cable of the type 4x2x0.5mm twisted
pair.
ATTENTION
If you want a longer cable, use a standard LAN cable (maximum length 50 meters).
If you want to extend the cable length, please be aware of the following:
Installation in the RJ12 plug
1
2
3
4
5
6
1.
2.
3.
4.
5.
6.
Empty
Empty
Green (A2)
Green/white (B2)
Brown (12V)
Brown/white (GND)
Use RJ12 plug and RJ12 crimping tool.
ATTENTION
It is possible to purchase a 10 or a 20 meter cable with pre-fi tted RJ12 plug for the control panel.
Wall bracket
Mount the HMI panel on the wall using the integrated wall bracket.
The panel should be placed in a visible spot so it is possible to change settings and to monitor warnings or alarms regarding
operation of the unit.
The wall bracket is located at the back of the panel. You can
detach it by loosening the bracket at the bottom of the panel.
You can remove it. Mount the wall bracket on the wall using
2 screws.
Click the RJ12 plug into place at the bottom of the HMI panel.
The wire can run down along the wall, into the wall or through
the groove at the back of the panel.
