Plumbing connections - accessories
Connection of water trap with ball
Connection of water trap with ball
It is important to connect up the water trap in compliance with the measurements below. If the water trap is placed outside the
climate screen, it should be protected against frost.
Water trap and accessories:
1. Water trap with Ø32 mm spout
2. Reducing fi tting Ø20 mm
3. Reducing fi tting for
3
/
4
”
4. Reducing fi tting for
1
/
2
” tube
Ø20 mm
100
90-225
Ø76
162
Ø32
123

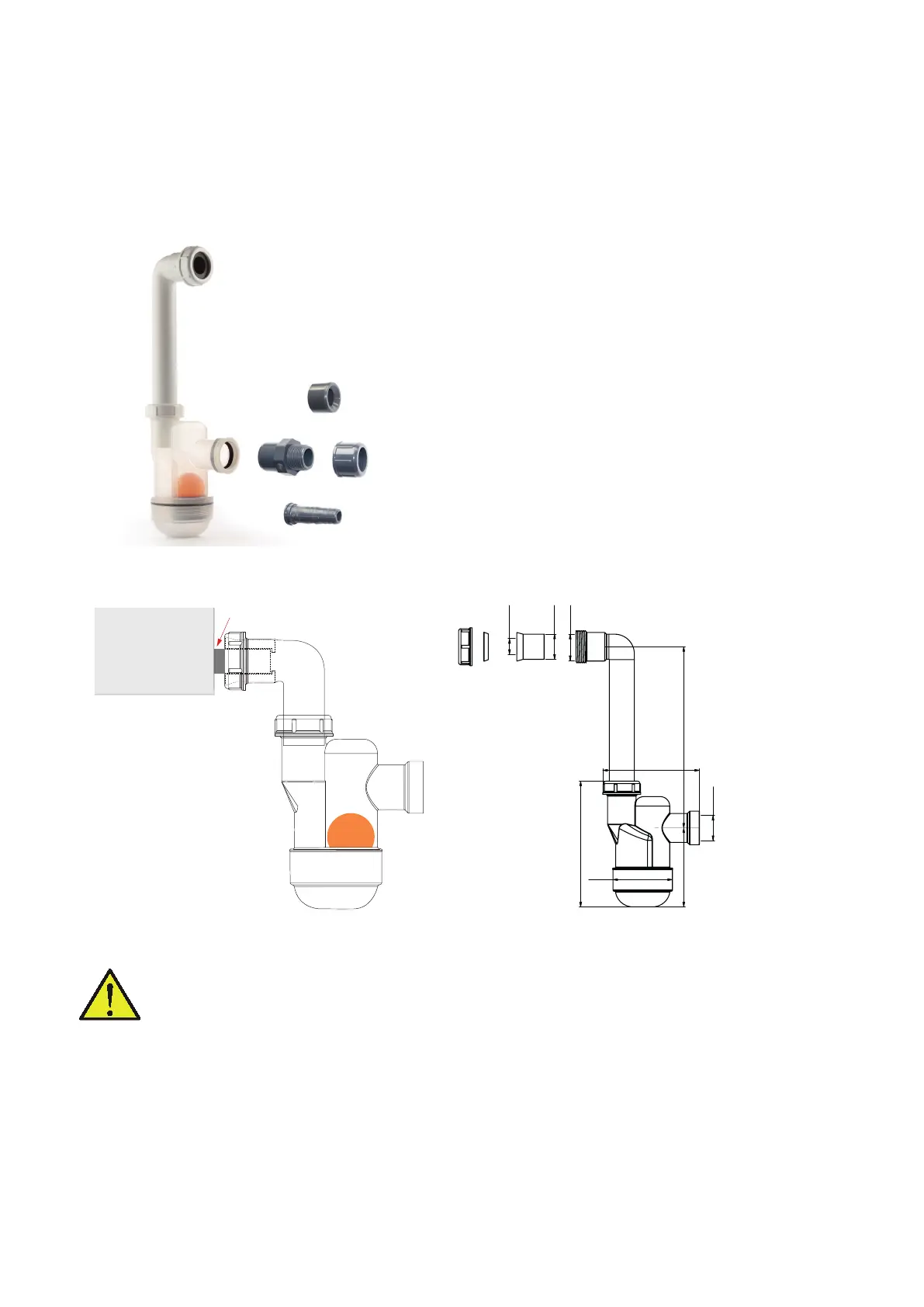

Illustration of connection on the side of the unit Dimensional drawing (all measurements are in mm)
ATTENTION
For commercial facilities where the vacuum can be up to 1000Pa, max height (pull-out) of water trap must be
225 mm.
