Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 127
Paddle Position Sensor – Non-ST models - SC750, SC800
Photos are shown working on a bench top but this can be done on the machine.
1. Remove top two handle mounng bolts.
2. Loosen the boom two handle mounng bolts and rotate handle down.

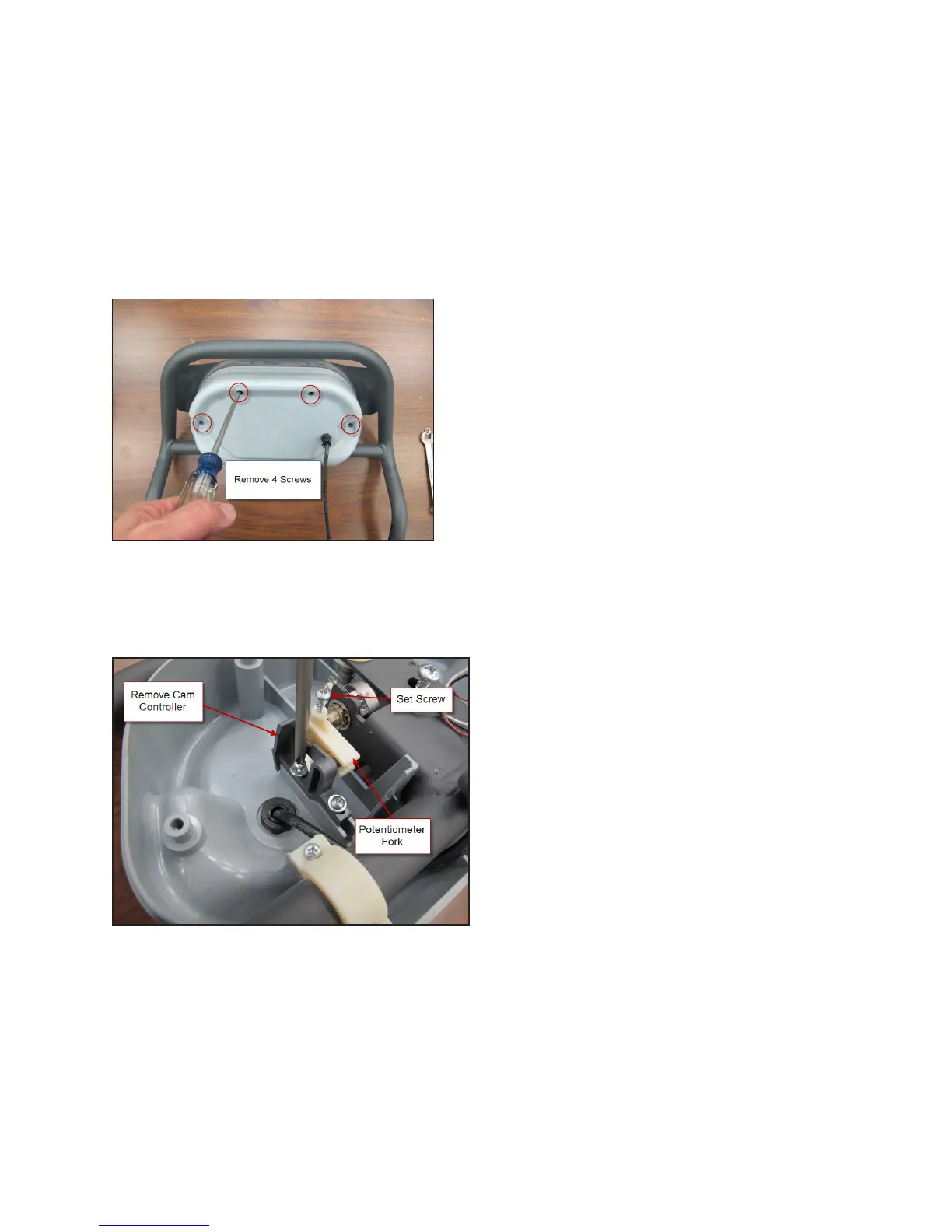

3. From the back side of the paddle, remove the 4 screws securing the front cover. Remove the front cover. (Discon-
nect wiring from speed limit potenometer).
4. Disconnect wiring from the potenometer. Make sure you carefully record the wire colors and their posions so
that you will be able to reconnect them correctly.
5. Remove the cam controller.
6. Loosen set screw and remove the potenometer fork.
7. Remove the potenometer mounng nut and washer.
