Nilfisk-Advance Advance SC750 ST

Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 128

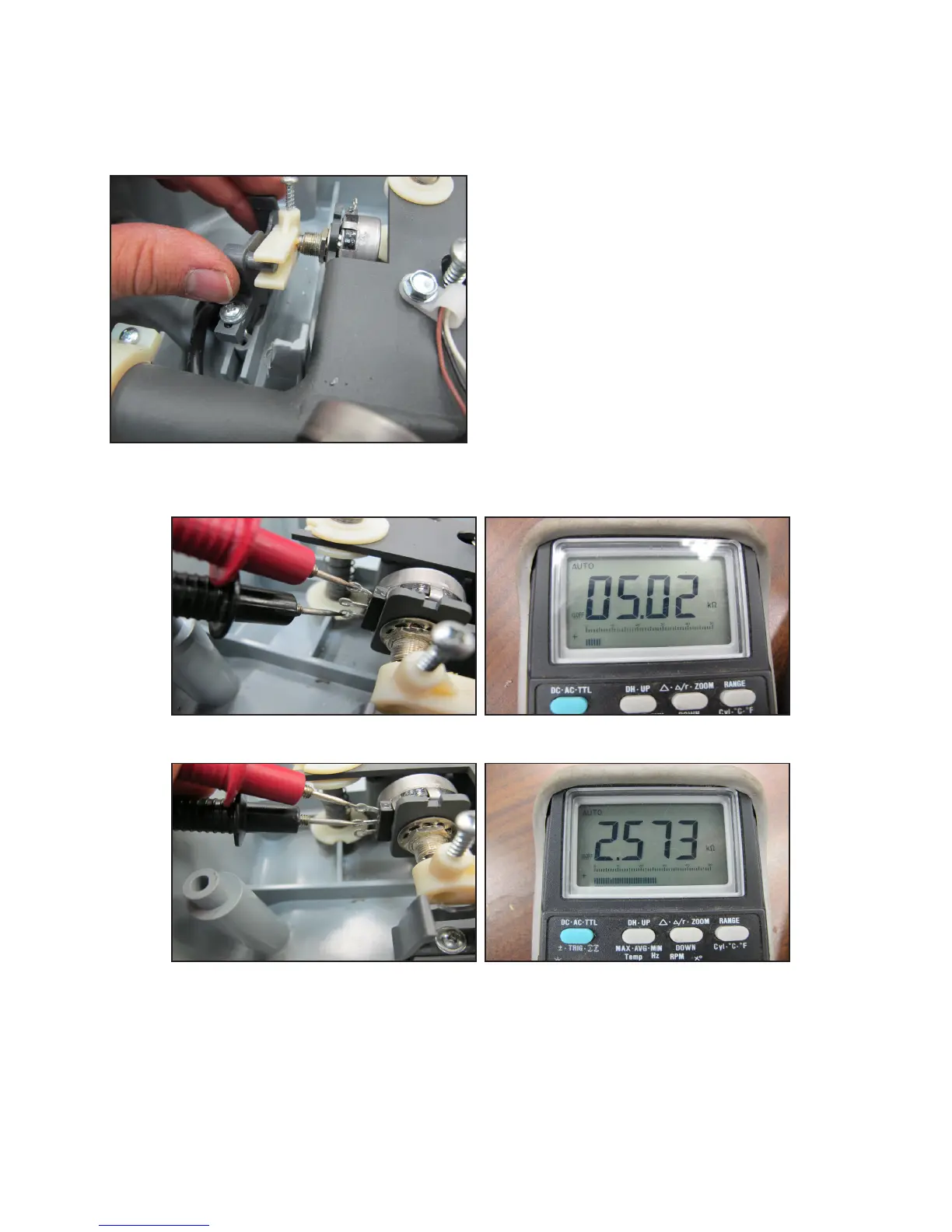

8. Install the potenometer.
9. Loosely install the potenometer fork.
10. Install the cam controller inserng the pin end into the fork.
11. Adjust the potenometer posion.
a. Measure the resistance between the two outer terminals and write the value down.
b. Hook up your ohmmeter leads between the center terminal and one of the outer terminals. Using a
small sloed screwdriver in the end of the potenometer sha, rotate the sha unl the value on the
ohmmeter is exactly ½ of the value wrien down in step a.
c. Tighten the fork set screw.
12. Reconnect the wiring.
