13. Reinstall the paddle cover. (Reconnect the speed limit potenometer wiring.)
14. Rotate the handle assembly back up into posion and loosely install the top mounng bolts.
15. Tighten all 4 handle mounng bolts.
Paddle Centering Springs - Non-ST models - SC750, SC800

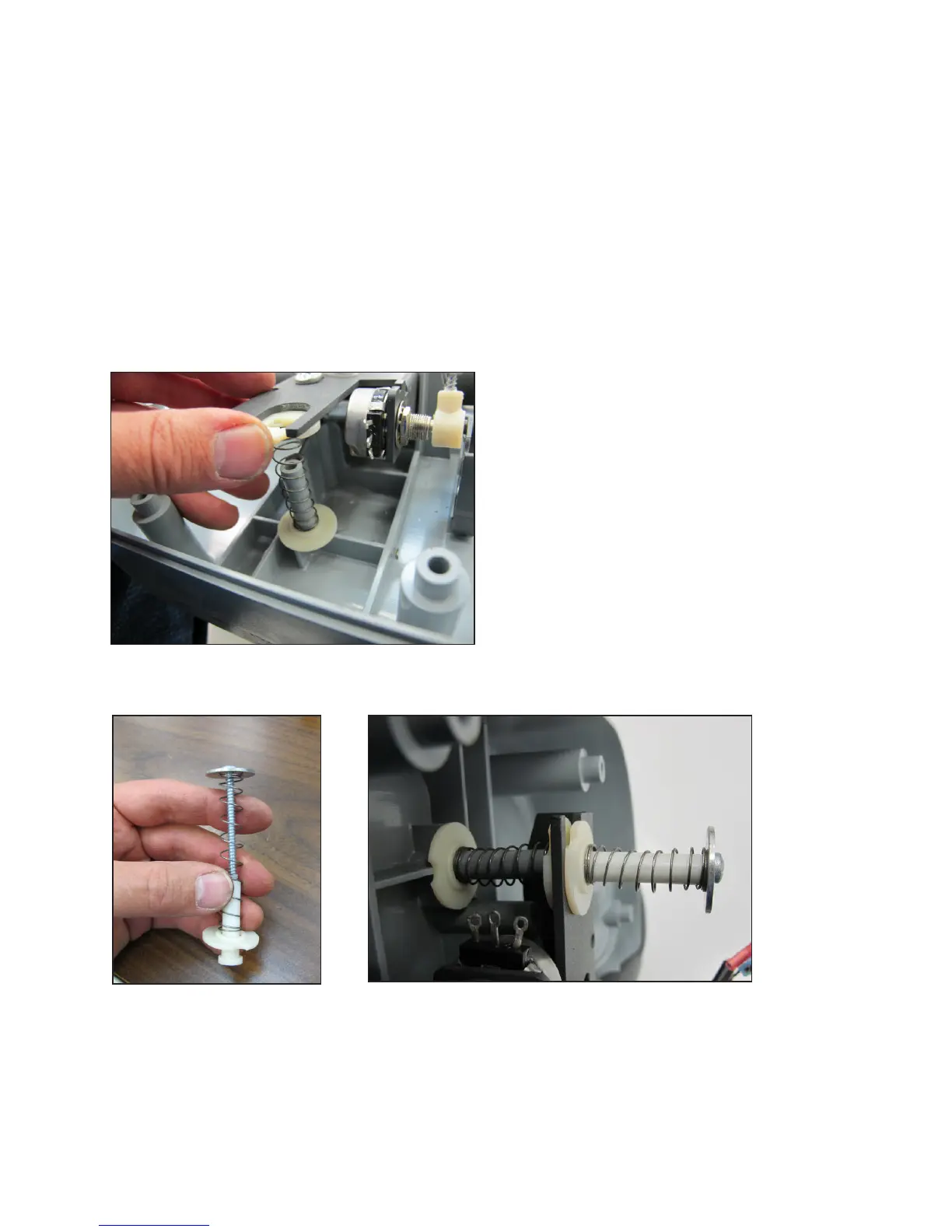

In the event that the paddle centering springs and hardware need to be replaced, these photos will help you assemble it
correctly.
1. Carefully remove the aaching screw. Pieces will y apart if you do not retain the springs.
2. When reassembling, install the “lower stack” rst. The shoulder of the nylon washers goes toward the spring.
Carefully posion the pieces so that they stay in place.
