113Service Manual – SC6000 34 - Scrub System, Cylindrical
Brush Motor
1. Remove the brush from the drive hub.
2. Press the One Touch Scrub button to lower the scrub deck, and then press the E-stop to stop any
running motors.
3. With the scrub deck still lowered, unplug the battery connector under the operator’s seat.
4. Open the side door and the side squeegee.
Note: If you are completing this procedure
to replace the motor brushes, it is not
necessary to remove the drive belt, and
you can remove the entire motor and belt
assembly as-one. Skip down to step 6.
5. Remove the belt cover (A) and the Brush Drive Belt
described on page 112.
6. Disconnect the motor electrical connector.

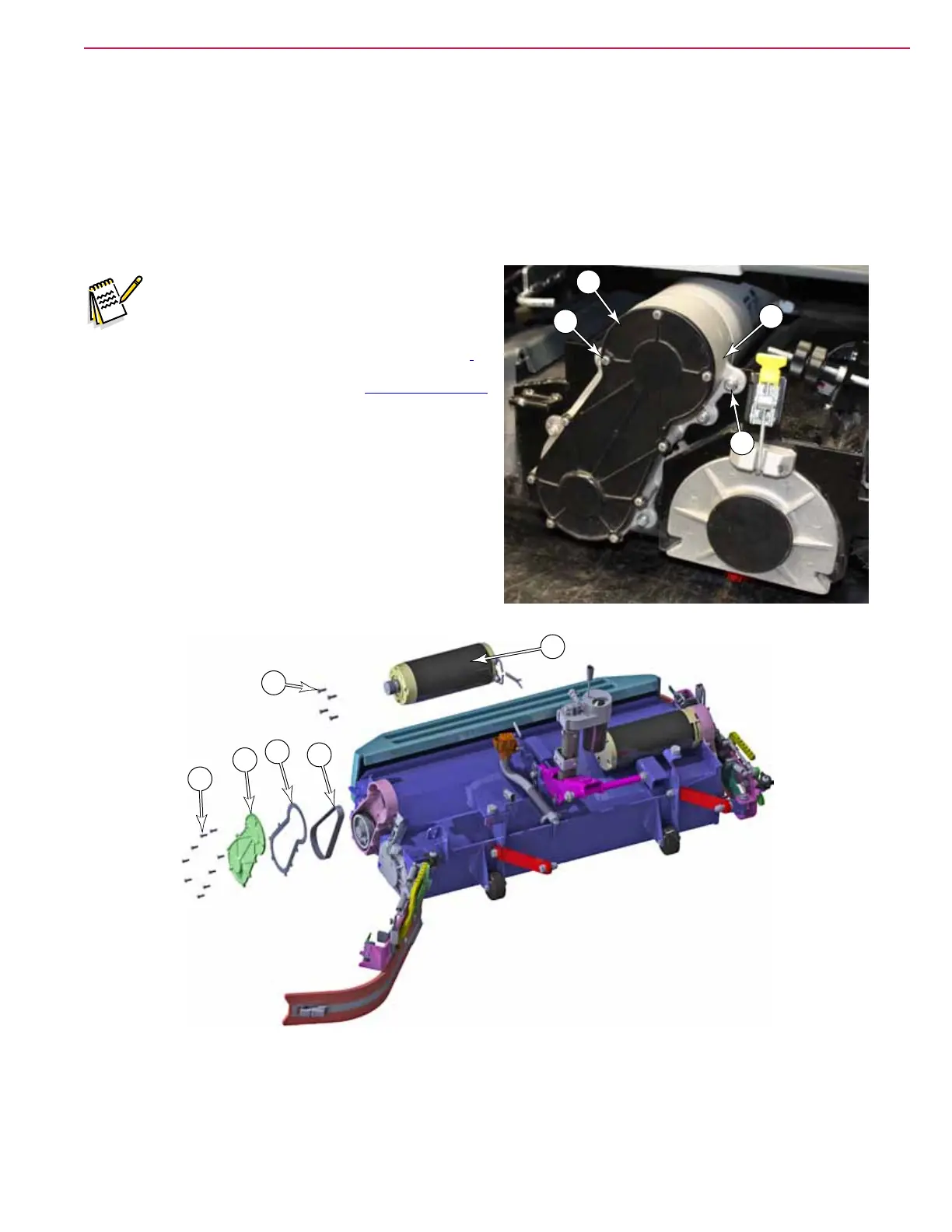

7. Remove the six nuts (D) that secure the belt housing
(C), and remove the motor and housing.
8. If you are replacing the motor brushes, stop here.
Otherwise, remove the four bolts (G) that secure the
motor to the drive housing, and remove the motor
(H).
B
A
E
F
G
H
A
B
C
D
