Nilfisk-Advance SC6000 36C - Trackclean X163 Connector; Level Sensor X79 Connector; Steering Column Paddle X98 Connector; Vacuum X157 Connector

75Service Manual – SC6000 24 - Electrical System

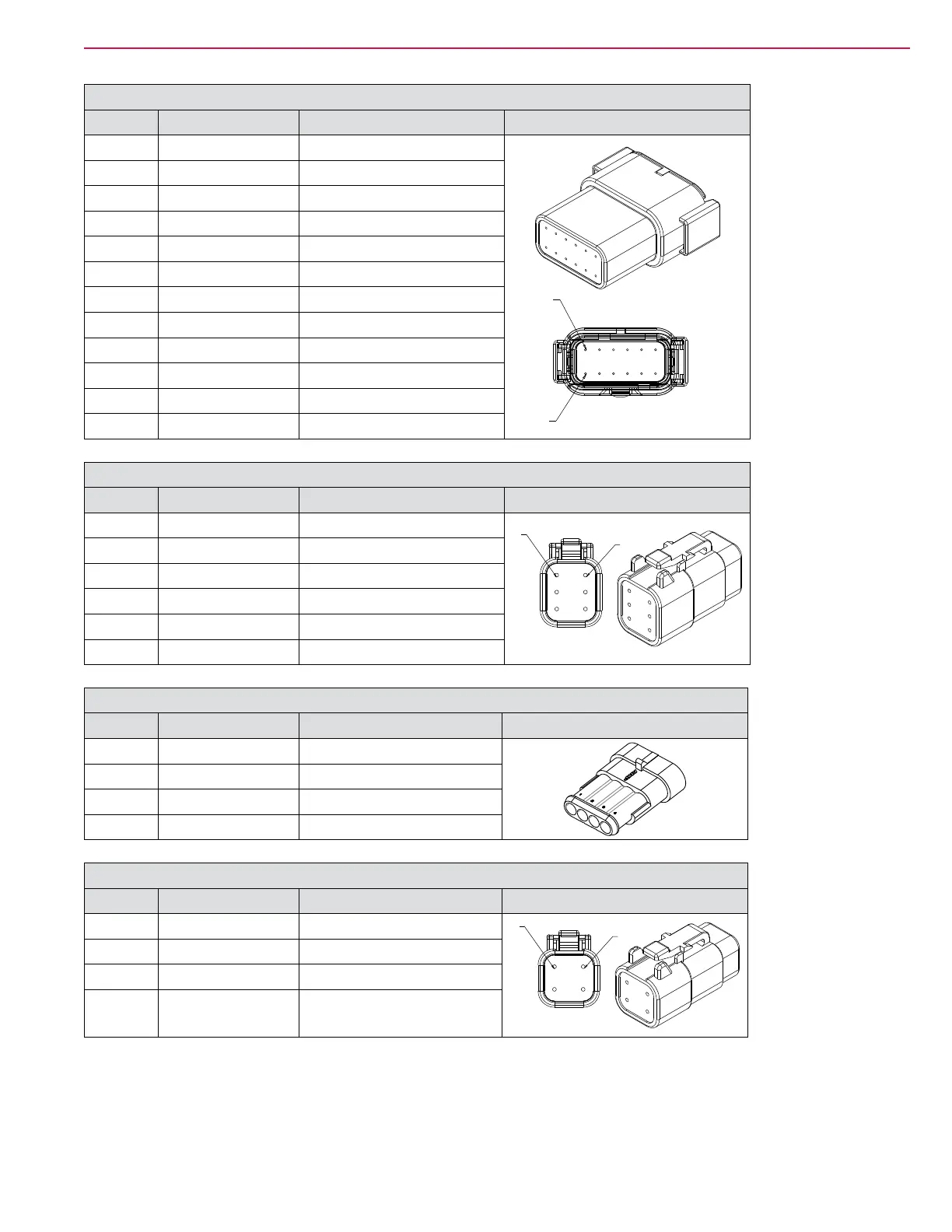

TrackClean X163 Connector
Pin # Name Wire Color, ID
1 TC CAN-H YEL,W232
1
12
2 KSI In BLU-RED,W205
3 Bat+ YEL-BRN,W161
4 GND BLK,W131
5
6
7
8
9
10
11
12 TC CAN-L GRN,W233
Level Sensor X79 Connector
Pin # Name Wire Color, ID
1 Level 1 BLU,W187
1
6
2 Level 2 WHT,W188
3 Level 3 YEL,W189
4 Level 4 RED,W190
5 GND BLK,W133
6 --- ---
Steering Column Paddle X98 Connector
Pin # Name Wire Color, ID
1 BoP Switch ORN-RED,W198
2 Horn Switch YEL-RED,W199
3 Solution Switch TAN-WHT,W200
4 GND BLK,W129
Vacuum X157 Connector
Pin # Name Wire Color, ID
1 Vac Motor + GRA-RED,W084
1
4
2 Vac Motor - BLU-GRN,W079
3 Float Switch WHT-ORN,W191
4 GND BLK,W136
