58Service Manual – SC6000 20 - Wheel System, Traction
Electromechanical Brake
Removing the drive motor requires the drive wheel assembly to be removed from the machine so it can be
stood on-end, to prevent the gear oil from leaking out of the gear box.
Replacing the electromechanical brake requires removing the
motor because the wire passes through the motor housing
ange. However, the brake disks can be inspected without
removing the drive assembly from the machine.
1. Remove the Drive Wheel Assembly described on page
55.

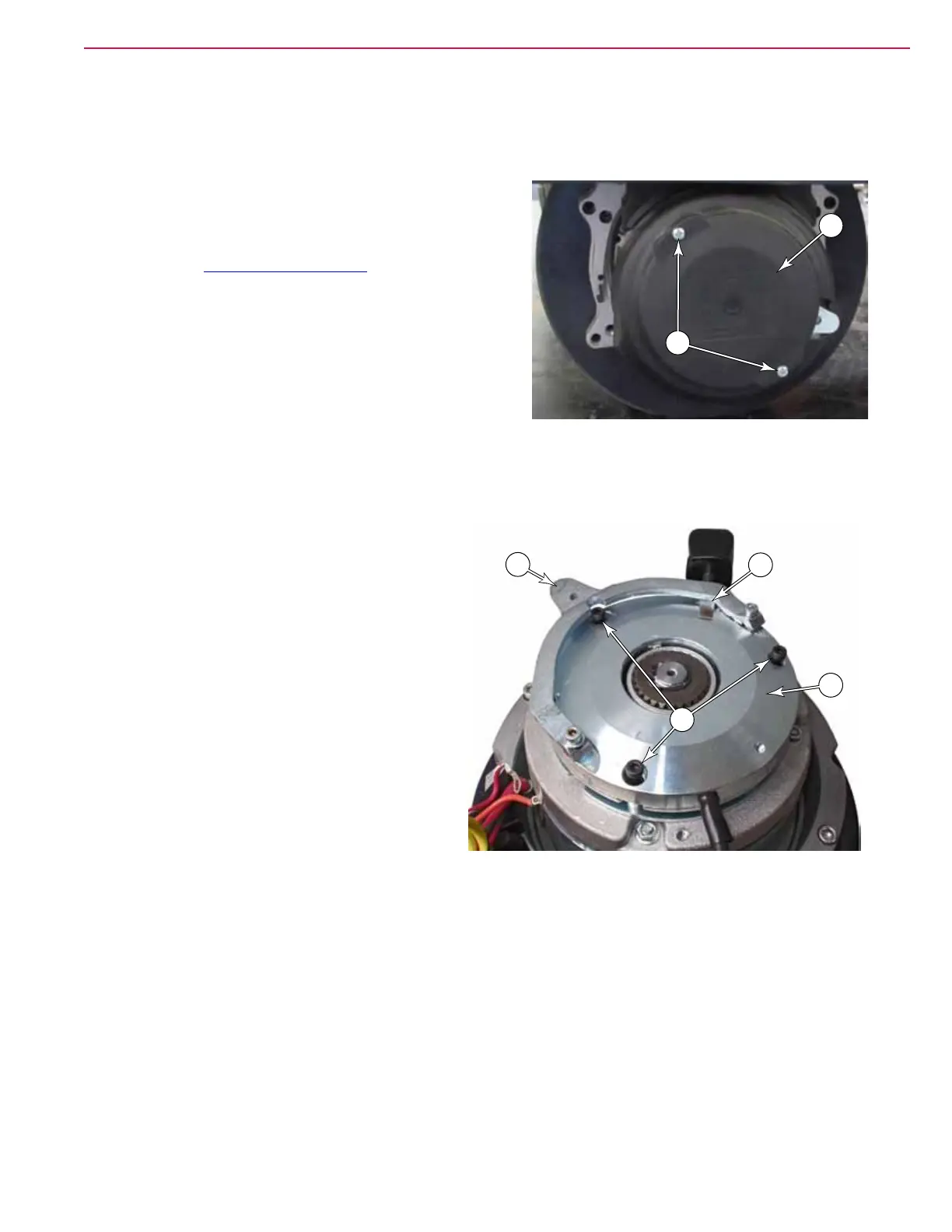

2. Remove the two screws (B) that secure the motor cover
(A), and remove the cover.
3. Remove the three screws (C) that secure the
brake module (D) to the motor.
4. Free up the brake wire from the motor housing,
and remove the brake.
5. During replacement, use a screw driver (E) to
hold the brake release lever (F) raised. This will
allow the spline gear to oat while you realign
the mounting screws.
A
B
E
F
C
D
To Next Page
