74Service Manual – SC6000 24 - Electrical System

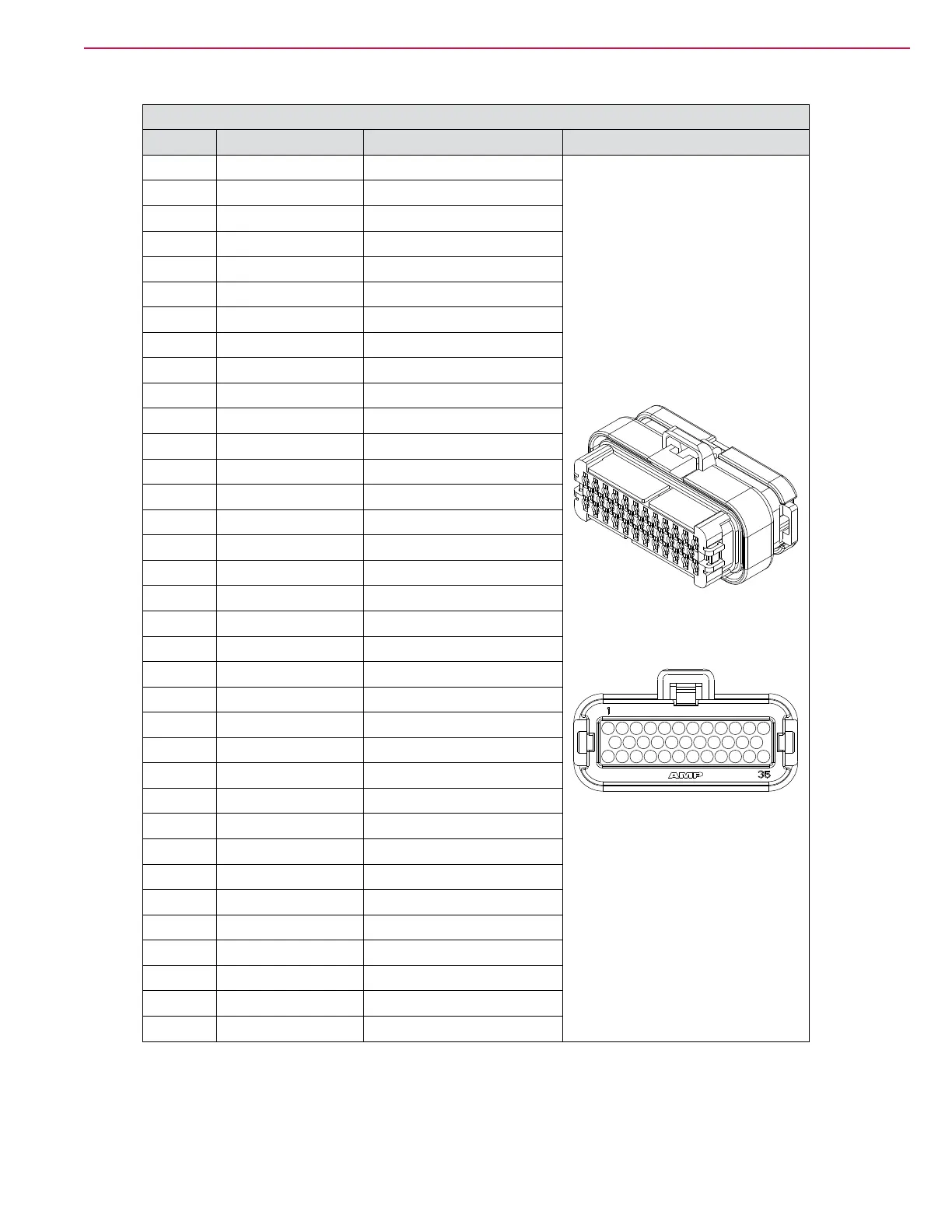

Drive Controller J4 Connector
Pin # Name Wire Color, ID
J4-1 KSI In BLU-RED,W119
J4-2
J4-3
J4-4
J4-5 Brake - GRY-ORN,W061
J4-6 K3 Relay Coil VIO-BLU,W042
J4-7 Common (GND) Out WHT-BLK,W052
J4-8 Temp Sensor PNK-WHT,W054
J4-9 Seat Switch In GRN-BLU,W176
J4-10 E-Stop In ORN,W130
J4-11
J4-12
J4-13 Brake/KSI Bat+ BLU-ORN,W059
J4-14
J4-15 Drive Pedal +5V RED, W089
J4-16 Drive Pedal Wiper VIO-BLK,W090
J4-17
J4-18 Drive Pedal B- GRY,W091
J4-19
J4-20
J4-21
J4-22
J4-23 CAN Bus-H YEL,W194 (twisted)
J4-24
J4-25 +12V Out PNK-RED,W057
J4-26
J4-27
J4-28 Curtis Prog. TX -----
J4-29 Curtis Prog. RX -----
J4-30
J4-31 Phase A Encoder TAN-RED,W053
J4-32 Phase B Encoder PNK-BLU,W056
J4-33
J4-34
J4-35 CAN Bus-L GRN,W197 (twisted)
To Next Page
