131Service Manual – SC6000 40 - Recovery System

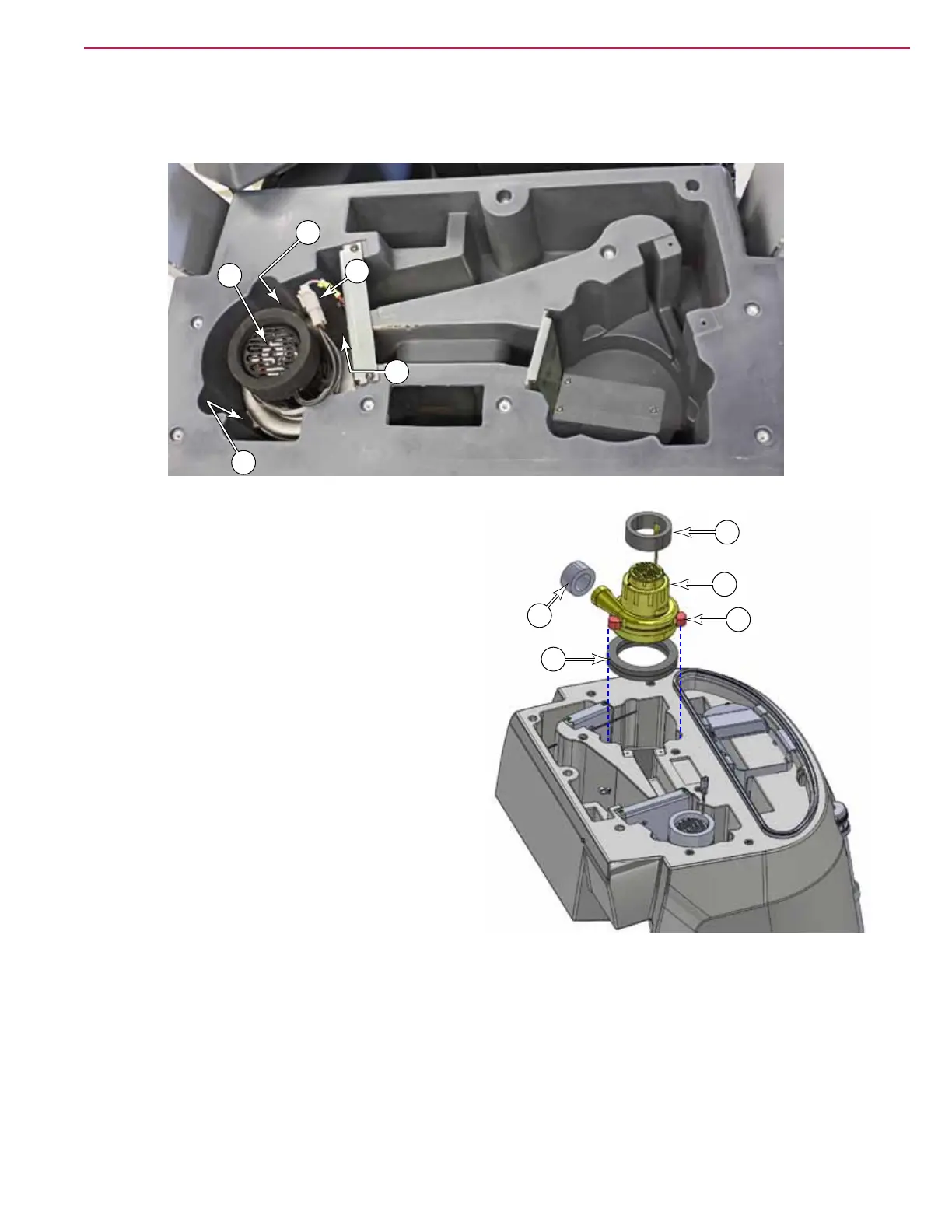

6. Disconnect the vacuum electrical connector (H).
7. Lift the vacuum assembly (J) out of the recovery tank. Take care to not lose the three isolation mounts
(K) nor the outlet foam seal (L).
H
J
K
K
L
8. Inspect the main vacuum gasket (M) for damage
and compressibility, and replace if necessary.
Leaks in this gasket will reduce recovery system
suction.
9. Inspect the motor ventilation gasket (N) for
damage and compressibility. This gasket holds
the vacuum motor assembly in position against
the recovery tank.
10. Make service repairs to the vacuum motor as
needed, and re-install by reversing the procedure
steps.
N
J
K
M
L
