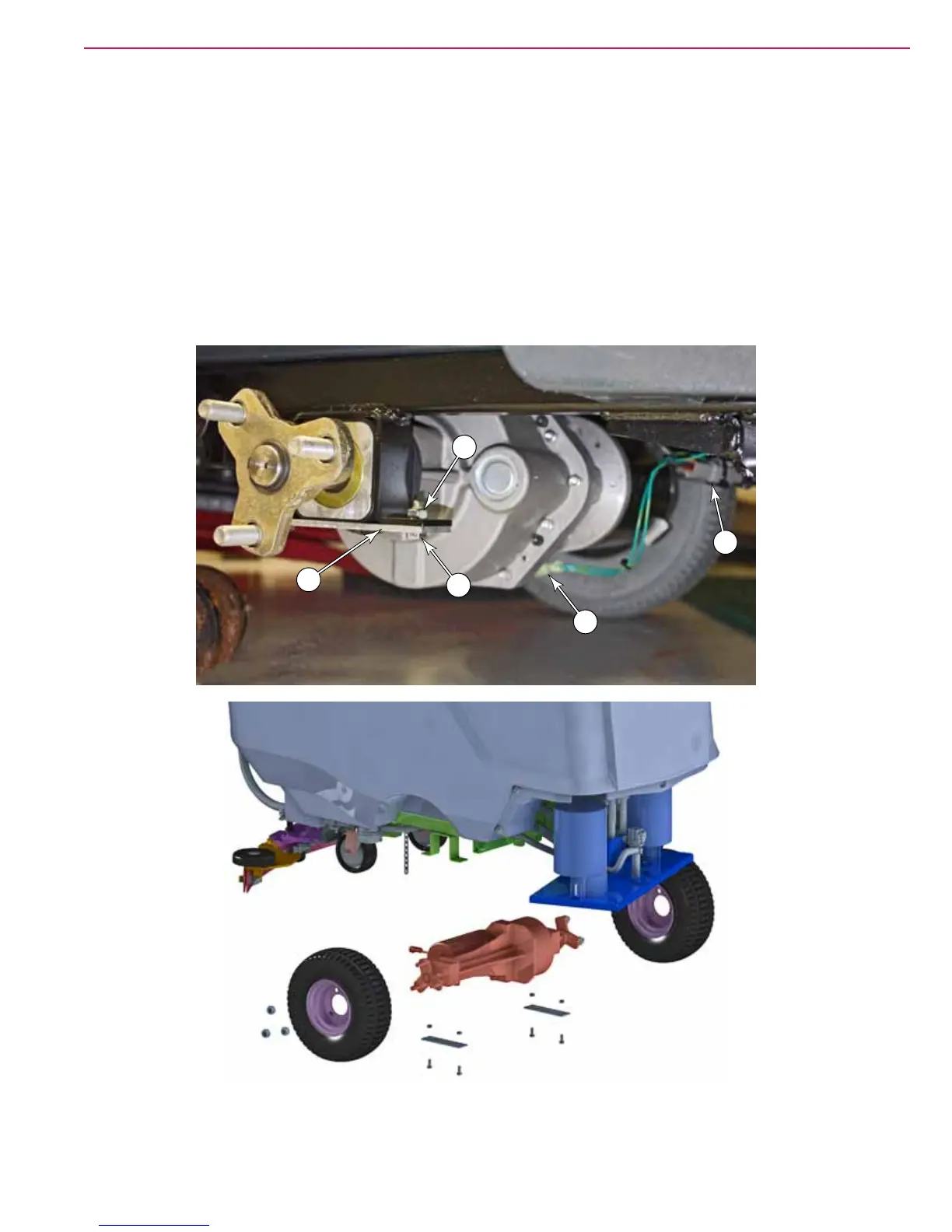

8. Remove the three lug nuts that secure each wheel to the transaxle, and remove both wheels.
9. Remove the ground wire (A) from the transaxle.
10. Disconnect the motor connector (B).
11. To prevent the transaxle from falling to the oor, place supports or cushioning under the transaxle.
12. Remove the 4 bolts (C) and nuts (D) securing the right and left retaining plates (E) to the frame.
• It’s best to rst loosen all 4 bolts, and then remove them when you are prepared for the transaxle to
be lowered.
13. With the retaining plates removed, lower the transaxle to the oor. Note the orientation, with the motor
toward the rear of the machine.
