39Service Manual – SC900 24 - Electrical System
Specications

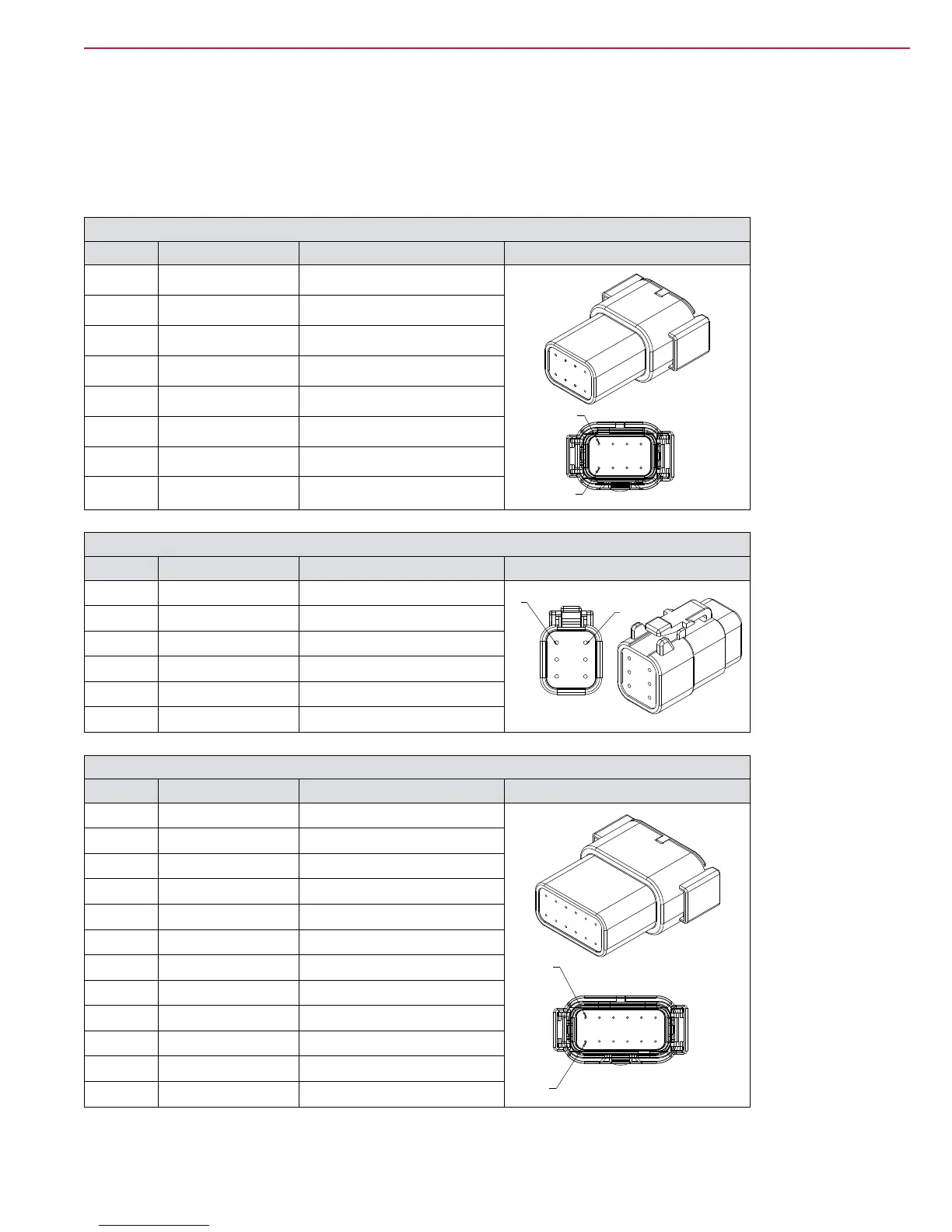

Connector Pinouts
TrackClean Connector
Pin # Name Wire Color, ID
1 Interlock VIO, W093
1
8
2 Interlock BRN/VIO, W026
3 Batt+ RED, W040
4 Vacuum GRAY, W035
5 Scrub VIO/WHT, W031
6 Drive PINK/BLUE, W023
7 Key Switch BRN/VIO, W026
8 Batt- BLACK, W030
EcoFlex Connector
Pin # Name Wire Color, ID
1 Batt+ VIO, W095
1
6
2 Solution In VIO/WHT, W060
3 Solution Out VIO/RED, W062
4 Detergent Out VIO/GRN, W061
5 Batt- BLK, W063
6 Brake+ PINK, W138
Operator’s Handle Connector
Pin # Name Wire Color, ID
1 Pot High WHT, W019
1
12
2 Go In YEL, W058
3 Go Out/ Pot Low BLU, W059
4 Speed Limit ORN, W020
5 Reverse Out GRY-VIO, W018
6 Key Switch In BRN, W069
7 Key Switch Out BRN-VIO, W026
8 Batt- BLK, W053
9 Hour Meter Run- VIO-WHT, W034
10 Hour Meter Run+ PNK, W141
11 Low Voltage Drain PNK-WHT, W044
12 Hour Meter Enable VIO, W096
