49Service Manual – SC900 30 - Solution System
Solution Control Panel and Cable
The solution control panel is located to the right
of the operator’s handle, and the cable passes
down through the machine to the solution shutoff
valve.

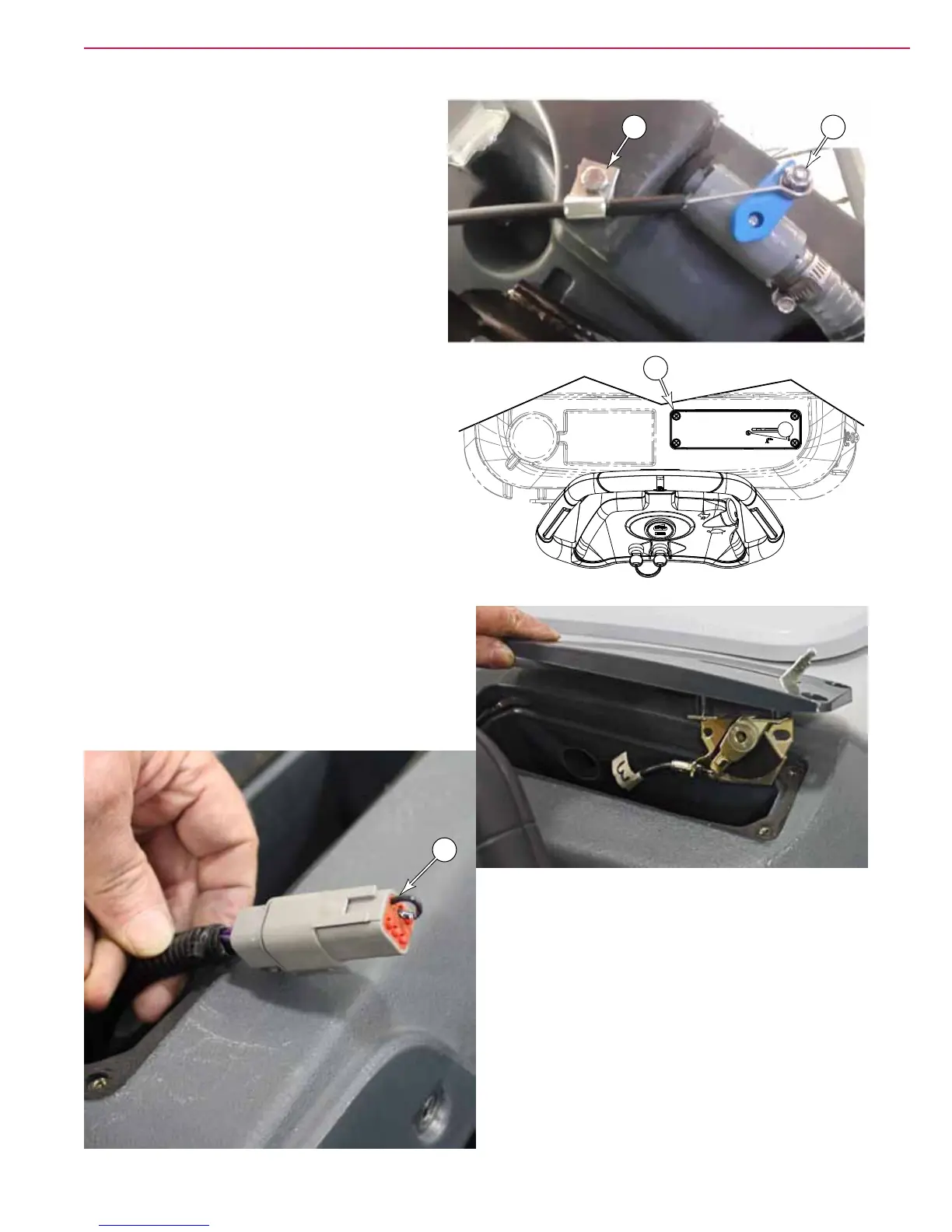

1. Remove the cable clamp (A).
2. Remove the screw, nut, and washer (B) that
secures the cable to the solution shutoff
valve.
3. Remove the 4 screws (C) that secure the
control panel to the solution tank, and lift the
control panel upward, and free up the cable
through the machine.
While you have the solution control panel off, it is a
good idea to check that the solution jumper (D) is in
place.
B
A
C
D
