33Service Manual – SC900 24 - Electrical System
Removal and Installation

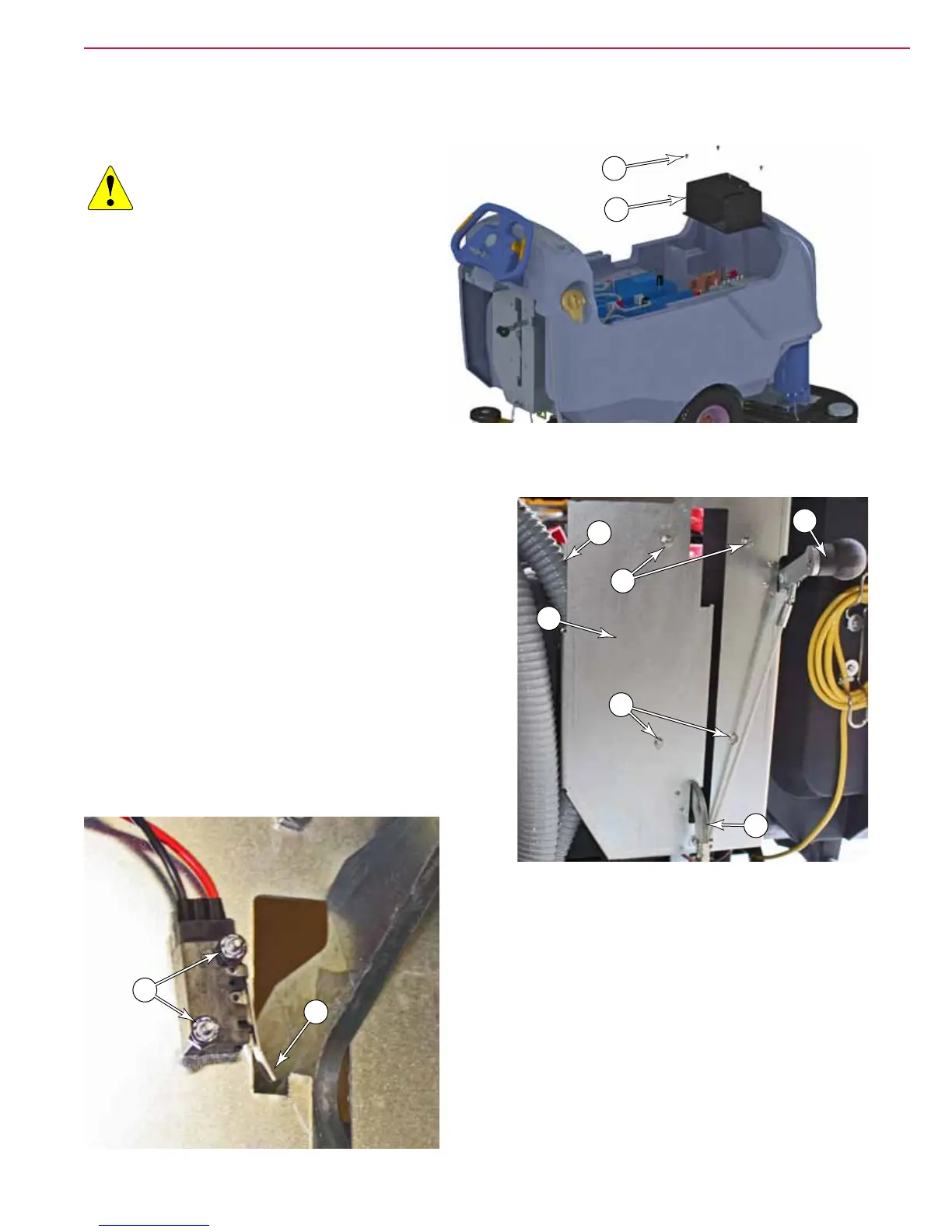

Electrical Bay Cover
CAUTION: Risk of Arc ash. The
electrical bay contains
exposed high-amperage
electrical components. Take
care to not allow tools to
come in contact with exposed
components.
The electrical bay contains the majority of the
machine’s electrical components. The cover
protects the components from debris and
incidental contact.
To remove the cover, use an 8mm socket with a
long extension remove the 4 screws that secure it
to the body of the solution tank.
Squeegee and Brush Switches
1. With the deck fully raised, place blocking under the
scrub brushes to prevent the deck from lowering.
2. Move the deck lift lever (D) out of the raised position,
and allow the blocking to support the deck.
3. Lower the squeegee (C).
4. Using a 10mm socket, remove the 4 screws (B) that
secure the lift plate (A) to the solution tank. Tilt the
lift plate downward to expose the switches.
5. Remove the two screws and nuts (F), and remove the
switch.
6. When replacing the switch, make sure the switch lever
(G) is properly positioned.
A
B
B
B
C
D
E
A
G
F
