INSTRUCTIONS FOR USE ENGLISH
1464815000 - SW4000, FLOORTEC R 870 23
03/2013
MAIN BROOM HEIGHT CHECK AND ADJUSTMENT
NOTE
Brooms with harder or softer bristles are available.
This procedure is applicable to all types of brooms.
1. Check the main broom height as shown below:
• Drive the machine on a level ground.
• Engage the parking brake.
• Lower the main broom and turn it pressing the
accelerator pedal for approx. one minute. Do not
operate the broom continuously in order not to overheat
the drive motor braked.
• Stop and lift the main broom, then move the machine
and switch it off.

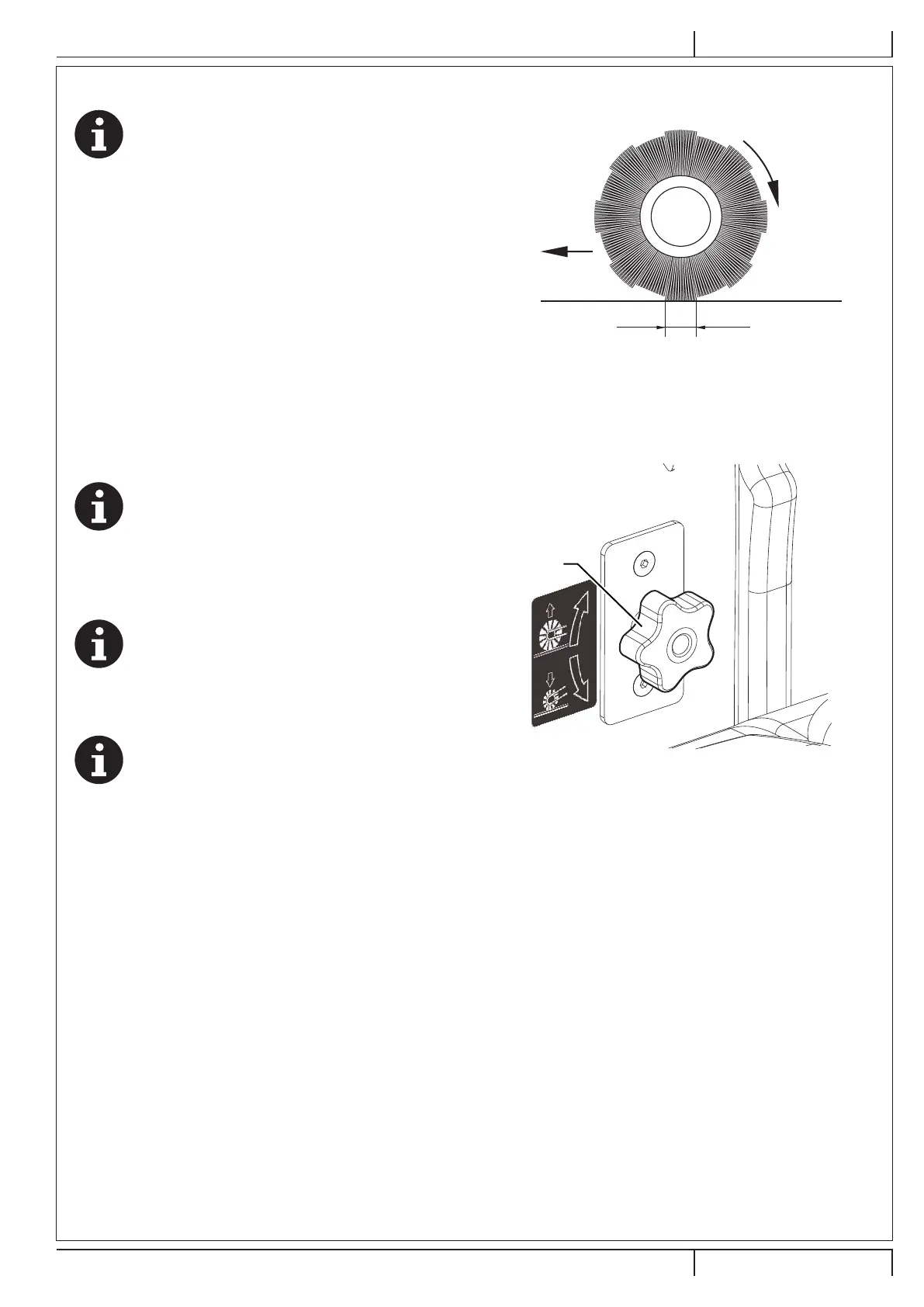

• Check that the main broom print (A, Fig. 5), along its
length, is 2 to 4 cm wide.
If the print (A) is not within specications, adjust the main
broom height according to the following procedure.
2. Turn the knob (B, Fig. 6) as shown below:
• to increase the print width, turn the knob counter-
clockwise
• to decrease the print width, lift the broom with the lever
(63) and then turn the knob clockwise
NOTE
The knob can be used both to adjust the print and to
adjust the broom according to the bristle wear.
3. Perform step 1 again to check that the main broom is at the
correct distance from the ground.
4. When the broom is too worn to be adjusted, replace it as
shown in the next paragraph.
NOTE
After the main broom height has been adjusted,
check that the broom overload warning light (75)
does not ash in the rst minutes of operation.
Otherwise the pressure on the oor must be reduced
by means of the adjusting knob (62).
NOTE
If it is not possible to adjust the print (A, Fig. 5)
properly, because the pressure on the oor at the
ends of the broom is different, refer to the Service
Manual.
A
2 - 4 cm
0,8 - 1,6 in
P100593
Figure 5
B
P100594
Figure 6
