QUICK START GUIDE ENGLISH
1464813000 - SW4000 35

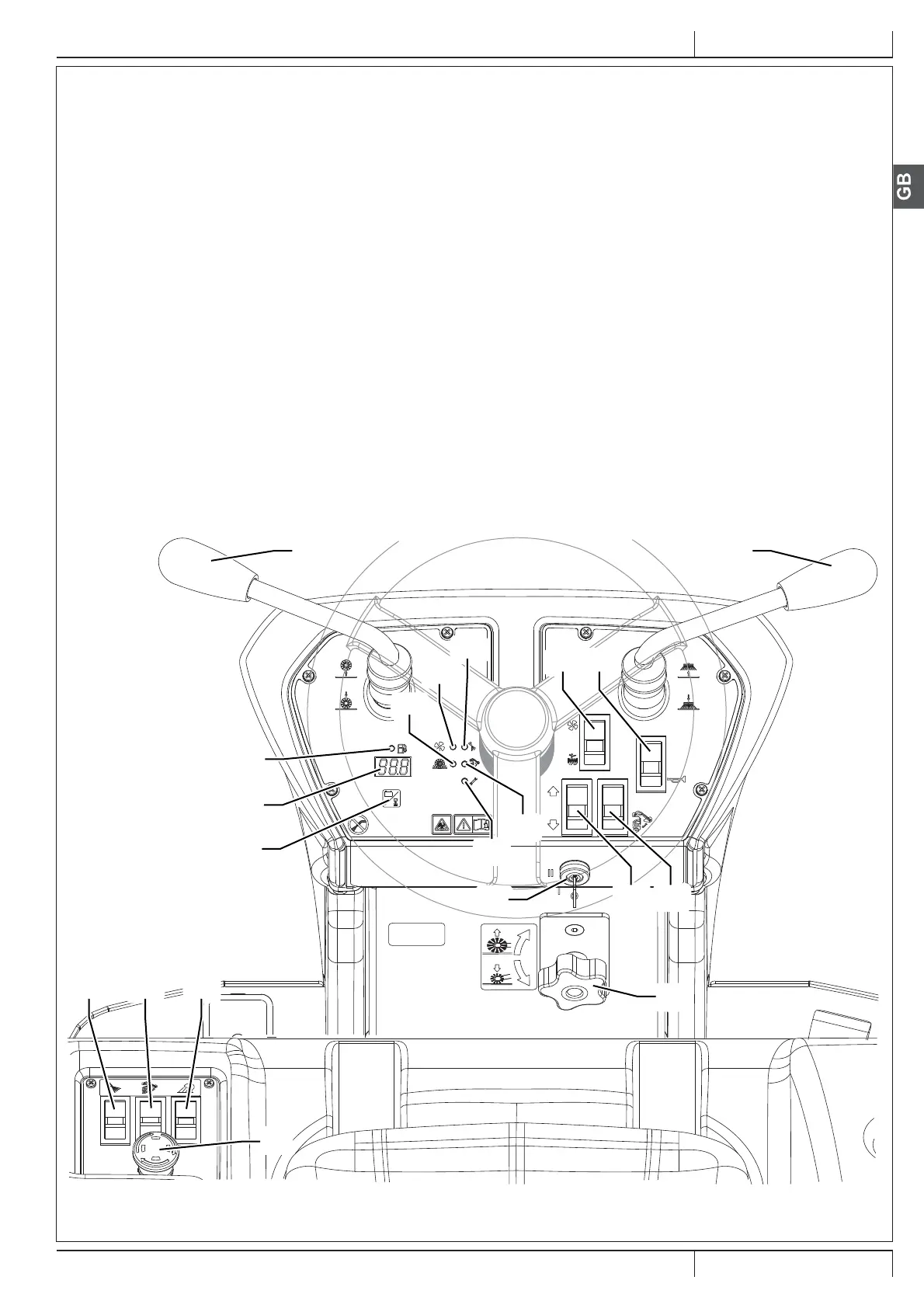

CONTROL PANEL
61. Ignition key:
When turned to “0”, it turns the electrical system off and
disables all machine functions
When turned to “I”, it enables the machines functions
When turned to “II” it starts the engine When the
dynamotor starts, release the key, which will return to
“I”
62. Main broom height adjusting knob:
Turn it counter-clockwise to increase the broom
SUHVVXUHRQWKHÀRRU
Turn it clockwise to decrease the broom pressure on
WKHÀRRU
63. Main broom lifting/lowering lever
64. Side broom lifting/lowering lever
65. Switch for:
Vacuum system activation/deactivation (upper part)
Filter shaker activation (lower part)
66. Hopper movement enabling switch
67. Horn switch
68. Forward/reverse gear switch
69. Display
70. Display switch for selecting the following functions:
Working hours
Battery voltage (V)
71. Fuel reserve warning light (yellow)
72. Vacuum system warning light (green)
73. Dust guard system (optional) warning light (green)
74. Hopper lifting system warning light (yellow)
75. Main broom overpressure warning light (red)
76. Drive system malfunction warning light (red)
77. Emergency push-button. Press it in case of emergency to
stop all the machine functions.
To deactivate the emergency push-button, turn it in the
direction shown by the arrow.
78. Working light switch (optional)
79. Hopper lifting/lowering switch
80. Dust guard system switch (optional)
70
69
71
74
76
73
72
75
65
80 79 78
77
67
68
61
66
62
6463
P100244
