MACHINE DESCRIPTION

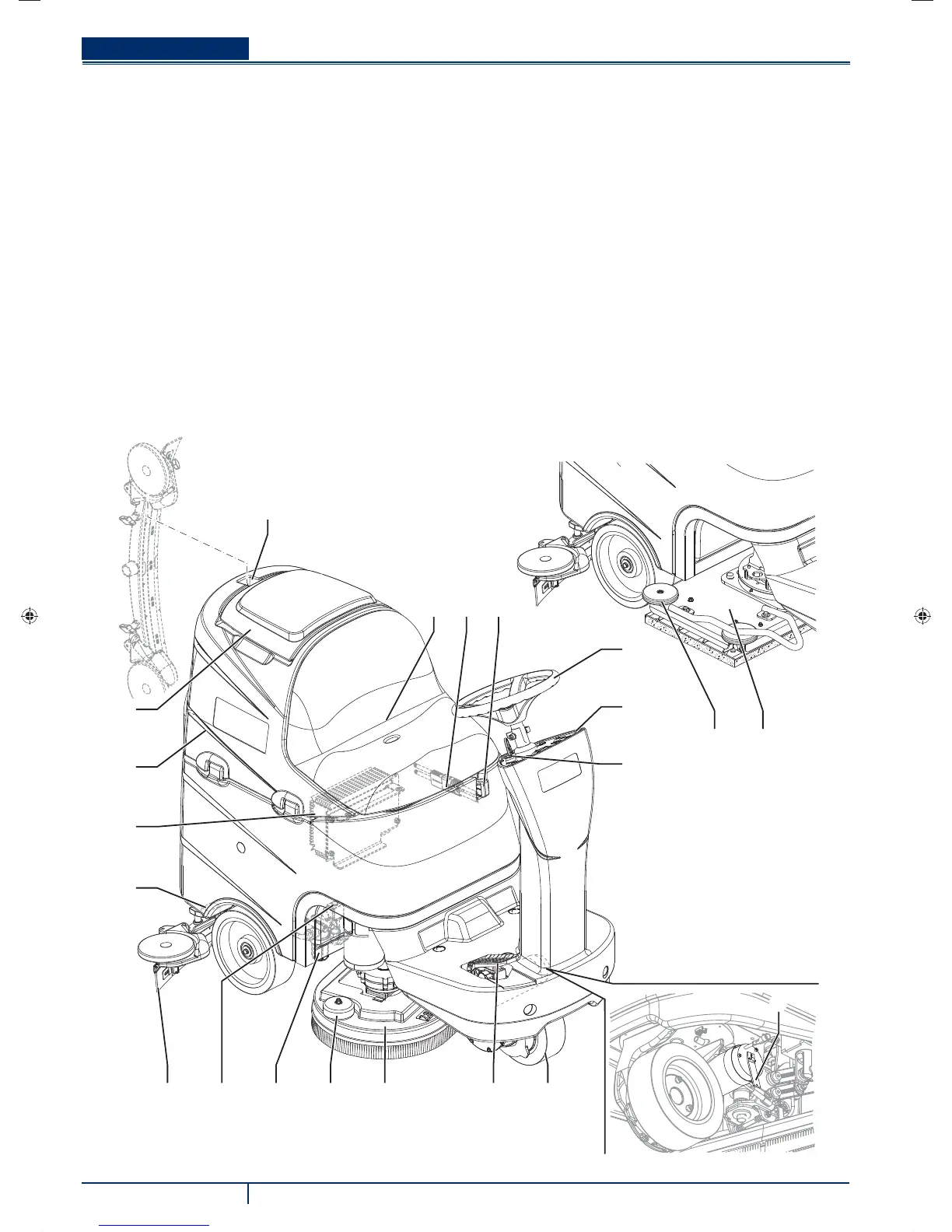

MACHINE STRUCTURE
Steering wheel1.
Control panel (see the following paragraph)2.
Ignition key3.
Forward/reverse gear pedal4.
BOOST5.
®
vibrating deck
Front steering, driving and braking wheel6.
Electromagnetic brake unlocking lever7.
Emergency push-button8.
Battery connector9.
Brush/pad-holder deck10.
Bumper wheel11.
Solution fi lter12.
Solenoid valve13.
Solution/clean water opening/closing tap14.
Squeegee hook15.
Battery charger16.
Seat17.
Squeegee blades assembly18.
Dumping recovery tank assembly19.
Recovery tank cover20.
17 9 8
15
3
2
1
14
19
16
20
18 13 12 11 10
5
46
11
7
P100431
