SIDE SKIRT CHECK AND REPLACEMENT (ONLY FOR SCRUBTEC R 471C)
Check
Drive the machine on a level fl oor.1.
Turn the ignition key (58) to “0”.2.
On both sides of the machine, unscrew the knobs (A, Fig. 9) and remove the side skirt assemblies (B).3.
Wash and clean the skirt.4.
Check that the skirt lower edge (C):5.
lays down on the same level, along all its length;•
is integral and free from cuts and lacerations;•
has the inner corner (D) that is not worn;•
Otherwise overturn or replace the skirts according to the following procedure.
Overturning or replacement
Remove the wing nuts (E), then remove the retaining strip (F).6.
Remove the skirt blade (G) and, if possible, overturn the blade to replace the lower inner corner (D) with the opposite one. If 7.
the other corner is worn too, replace the blade.
Assembly and height adjustment
Assemble the blades (G) and skirt assembly (B) in the reverse order of disassembly.8.
Start the machine and lower the cylindrical brush deck (28), then check that the side skirt blades (G):9.
slightly touch the fl oor;•
collect the solution.•
If necessary stop the machine and adjust the skirt height by loosening the knob (A) and turning the knobs (H).10.
After adjusting, tighten the knob (A).11.
H
A
A
H
B
E
C
E
F
F
G
G
D
E

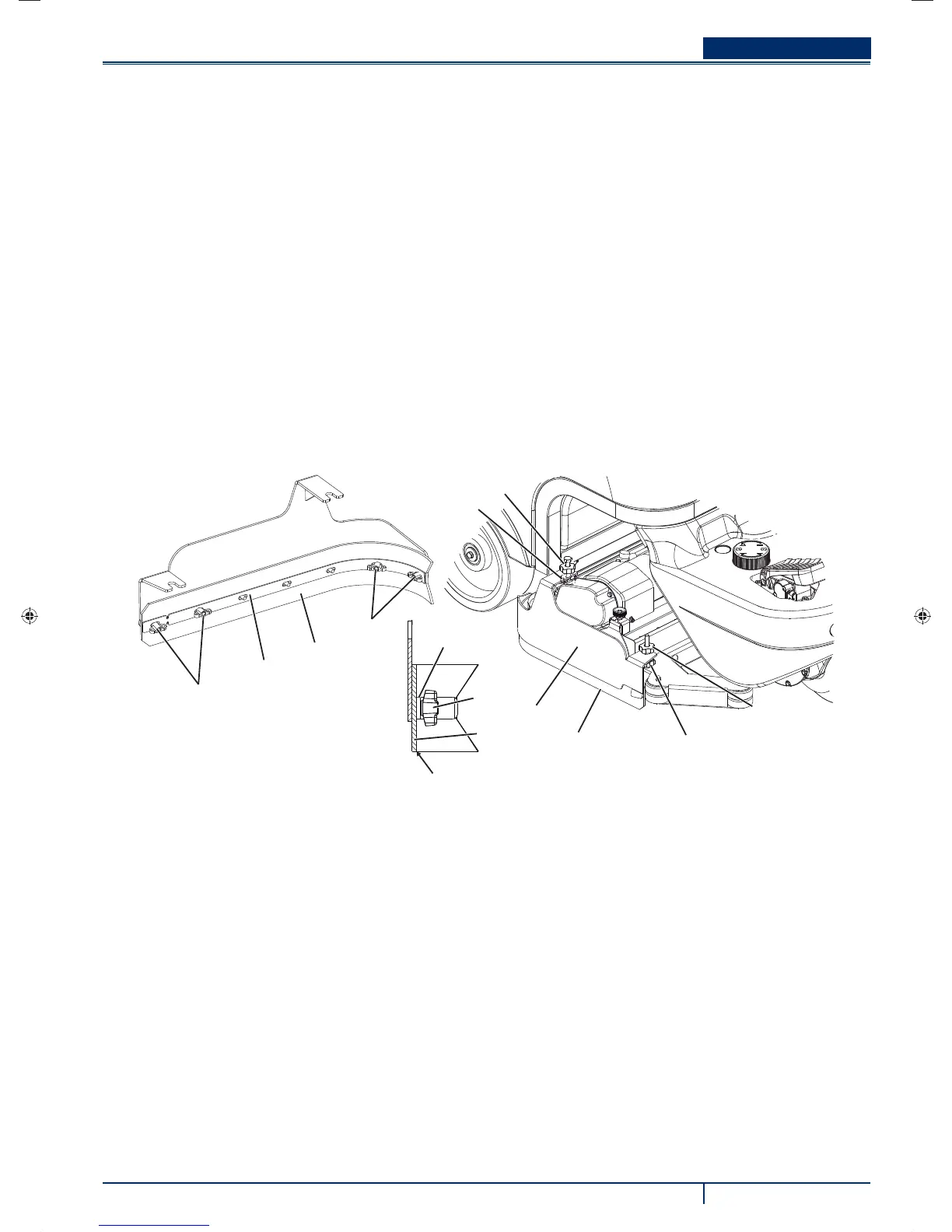

Figure 9
P100443
9098960000(1)2011-04 A.indb 259098960000(1)2011-04 A.indb 25 07/04/2011 15:59:2207/04/2011 15:59:22
