ENGLISH USER MANUAL
26 SCRUBTEC R 466 - R 471 - R 471C - BOOST
®
R4 9098960000(1)2011-04 A
VACUUM SYSTEM MOTOR FILTER CLEANING
Drive the machine on a level fl oor.1.
Turn the ignition key (58) to “0”.2.
Open the cover (20) and check that the recovery tank (19) is empty, otherwise empty it with the drain hose (24).3.
Close the cover (20).4.
Carefully lift the tank assembly (44).5.
Check that the fi lter (37) is clean. If necessary clean it with water and compressed air, then install it.6.
SOLUTION FILTER CLEANING
Drive the machine on a level fl oor.1.
Turn the ignition key (58) to “0”.2.

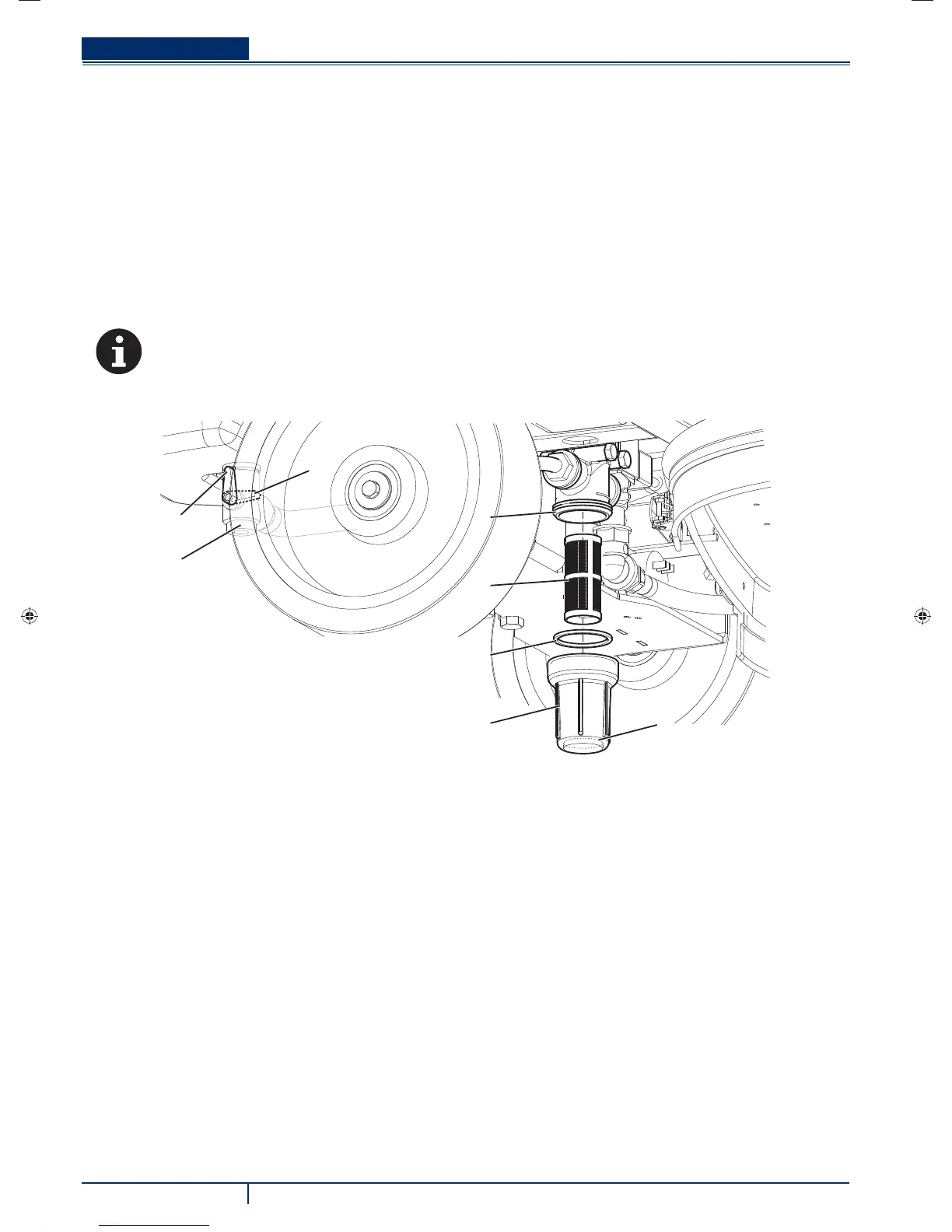

Close the solution tap (A, Fig. 10) under the machine, behind the right rear wheel. The tap (A) is closed when it is in the 3.
position (B) and it is open when it is in the position (C).
Remove the transparent cover (D) and the gasket (E), then remove the fi lter strainer (F). Clean them with water and install 4.
them on the support (G).
NOTE
The fi lter strainer (F) must be correctly positioned on the housing (H) of the transparent cover (D).
Open the tap (A).5.
D
E
F
H
G
B
C
A
Figure 10
P100444
9098960000(1)2011-04 A.indb 269098960000(1)2011-04 A.indb 26 07/04/2011 15:59:2307/04/2011 15:59:23
