ENGLISH USER MANUAL
20 SCRUBTEC R 466 - R 471 - R 471C - BOOST
®
R4 9098960000(1)2011-04 A
Battery discharge during operation
Until the green warning light (62) stays on, the batteries allow the machine to work normally.1.
When the green warning light turns off and fi rst the yellow warning light then the red warning light turn on, the batteries must
be charged.
When the yellow warning light turns on the machine residual autonomy will last for a few minutes (depending on the •
characteristics of the battery).
When the red warning light turns on the machine autonomy is over: after a few seconds the brushes/pad-holders are •
automatically stopped and the deck is automatically lifted. Only vacuum and drive systems still operate, just to dry the wet
fl oor and move the machine to the appointed charging area.
CAUTION!
Do not use the machine with discharged batteries, to avoid damaging the batteries and reducing the battery life.
NOTE
In case the machine drive system cannot be used in order to move the machine, see Pushing/Towing The Machine
paragraph.
TANK EMPTYING
An automatic fl oat shut-off system (27) turns off the vacuum system when the recovery tank (19) is full.
The vacuum system deactivation is signalled by a sudden increase in the vacuum system motor noise frequency, and the fl oor is
not dried.
CAUTION!
If the vacuum system turns off accidentally (for example, when the fl oat is activated because of a sudden
machine movement), to resume the operation: turn off the vacuum system by pressing the switch (65), then
open the cover (20) and check that the fl oat inside the grid (27) has gone down to the water level. Then close the
cover (20) and turn on the vacuum system by pressing the switch (65).
When the recovery tank (19) is full, empty it according to the following procedure.
Recovery tank emptying
Stop the machine by releasing the pedal (4).1.
Lift the brush/pad-holder deck and the squeegee by pressing the pedal (63).2.
Drive the machine to the appointed disposal area.3.
Empty the recovery tank with the hose (24).4.
Remove the container with debris collection grid (26), empty it and clean it with clean water. Then install it on the suction hose 5.
in the tank.
Then, rinse the tank with clean water.6.
Solution/clean water tank emptying
Perform steps 1 to 3.7.
Remove the adapter (45) from its housing inside the battery compartment.8.

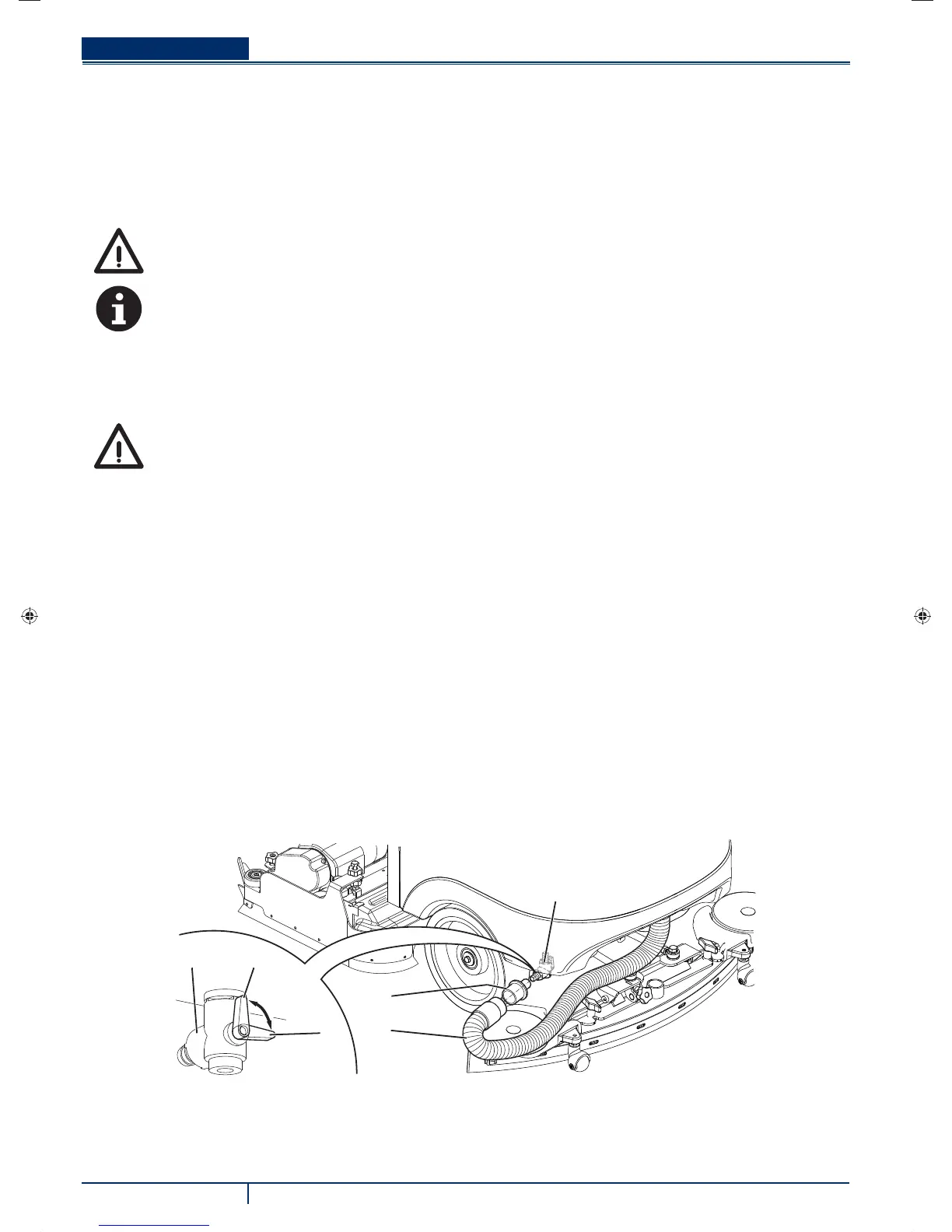

Install the adapter (A, Fig. 6) on the squeegee vacuum hose (B), then fasten it to the drain tap (C).9.
Turn the ignition key (58) to “I” and turn on the vacuum system with the switch (65).10.
Open the drain tap (C) to drain the tank (22).11.
The tap (C) is open when it is in the position (D) and it is closed when it is in the position (E).
Then, turn of the vacuum system and drain the recovery tank (19) with the hose (24).12.
When the procedure is over, close the drain tap (C), remove the adapter (A) and install the vacuum hose (B) on the squeegee 13.
(30).
A
B
C
E
DC
Figure 6
P100440
9098960000(1)2011-04 A.indb 209098960000(1)2011-04 A.indb 20 07/04/2011 15:59:2107/04/2011 15:59:21
