Process connection and entry pipe
Caution: Do not put the nozzle close to the entry pipe.
Pouring the product directly onto the probe will give false readings.
Install deflector plate if impossible to distance gauge from entry pipe.
Install far from
entry pipe
or use a
deflector
plate
medium

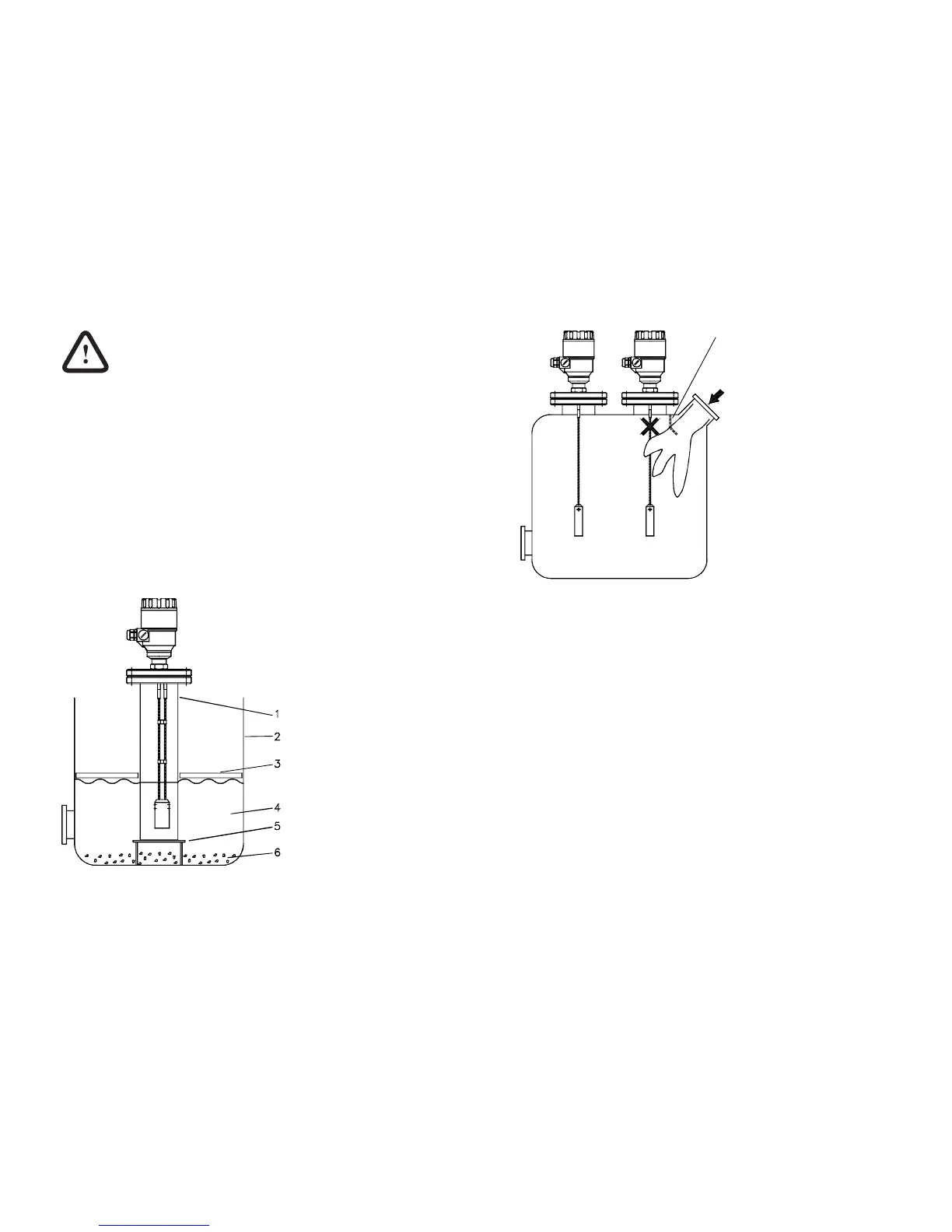

Stilling wells
Tanks with floating roofs for petrochemical applications: Use a stilling well.
1 Stilling well
2 Tank
3 Floating roof
4 Product (petroleum applications)
5 Well fixed to tank base (no roof deformation)
6 Sediment
