6

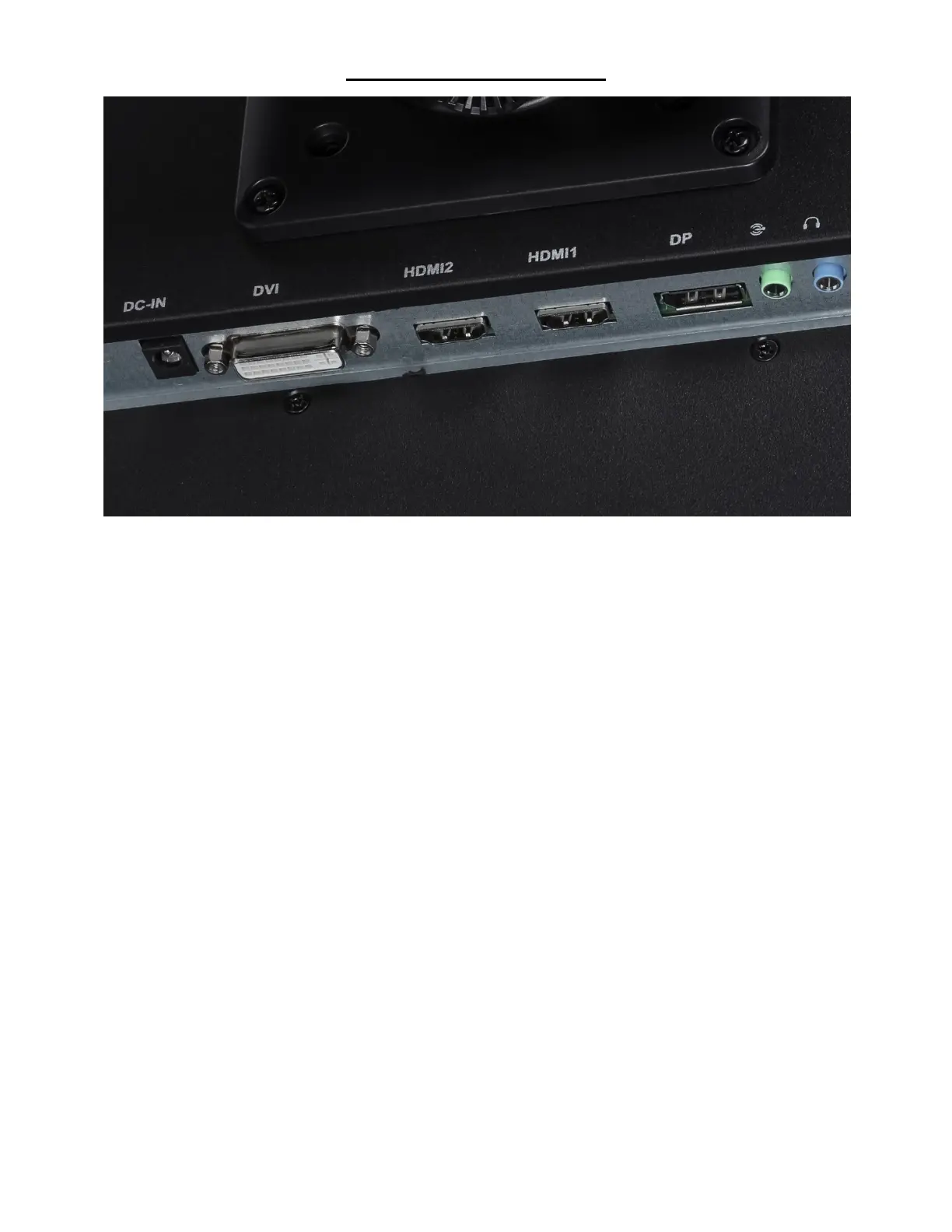

Input and Connection Ports
DC-IN: External power connector for Power Adapter
DVI: Dual Link DVI
HDMI 2: HDMI 1.4
HDMI 1: HDMI 2.0 (Supports 2560x1440 Resolution with Refresh Rates up to 144Hz with HDMI 2.0
compliant output device and cable)
DP: DisplayPort 1.2a (Supports 2560x1440 Resolution with Refresh Rates up to 144Hz and with AMD
FreeSync)
Green Audio Input Port: For connecting the audio cable from the audio output of your computer (when using
DVI video connection), gaming console, or other audio output source device.
Blue Audio Output Port: For connecting your headphones, desktop speakers, sound bar, or any other audio
speaker device.
The included DisplayPort to DisplayPort cable is for connecting the NX-EDG27 for DisplayPort output
devices/hardware.
NOTE: Do not use cable/adpater converters to connect the NX-EDG27 to HDMI, DVI, or VGA output
hardware/devices. We cannot guarantee these adapters will work with the NX-EDG27. To enable AMD
FreeSync™ Technology - a direct DisplayPort only cable connection to your computer is required.
NX-EDG27 Power Cable and Power Supply:
Only use the power cable included with the NX-EDG27. Using any other un-authorized power adapters may
damage your monitor and void your warranty. Connect the power cable to internal power supply on the back of
the monitor.
