NMFIRE NFPA20 - 3.3.1 Pump Suction Pipeline for ESF and SCF

－22－
Warning
Do not install butterfly valve in the suction pipe of SCF and ESF series fire pump. Butterfly
valve will cause turbulence damage to the pump. The pump suction pipe should be
installed with open stem Gate Valve (OS&Y Gate Valve). See “figure A.3.3.1.8”

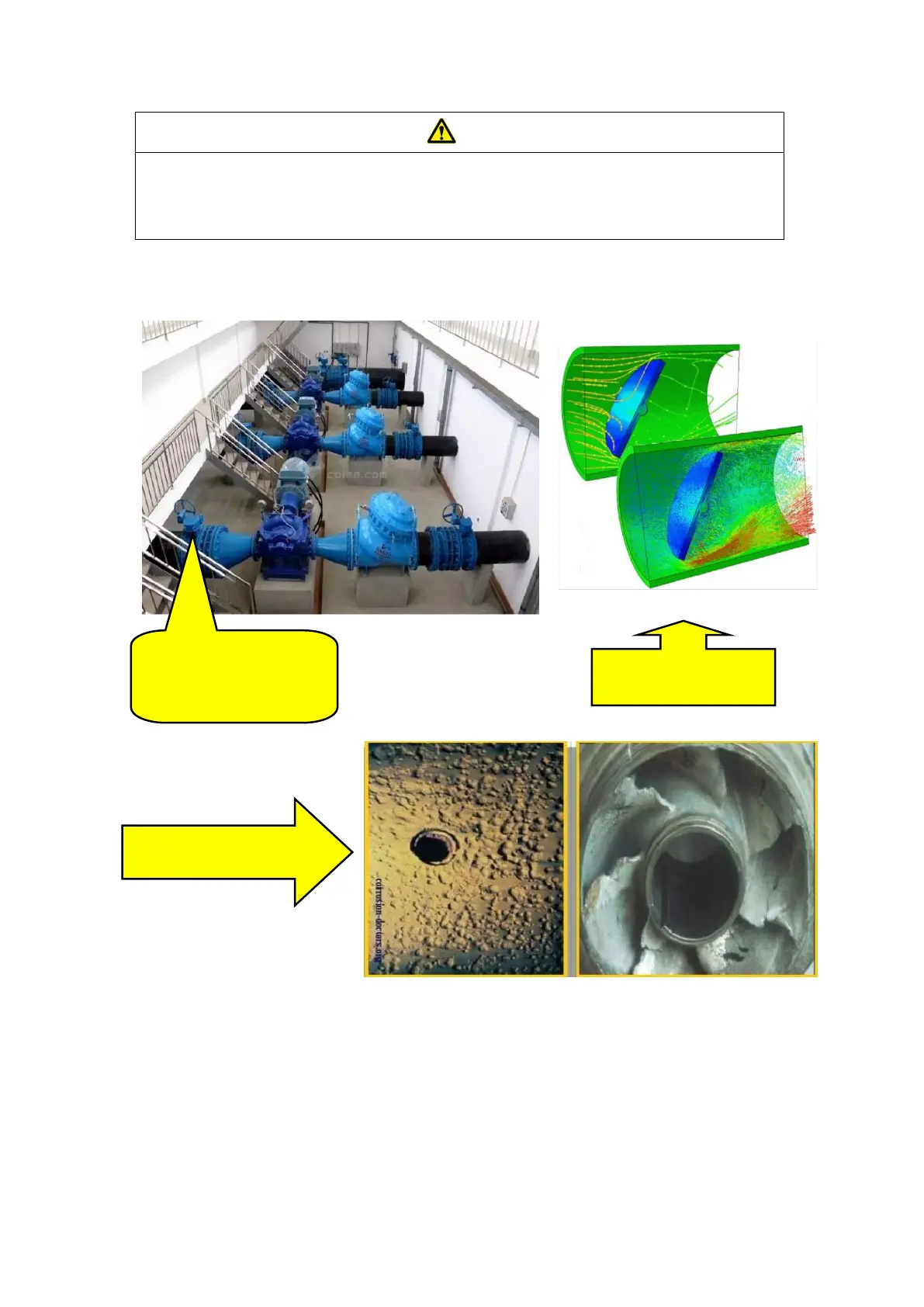

FIGURE A.3.3.1.8
Butterfly valves are not
allowed to be installed in
suction pipe
Turbulence will result in
impeller damage
Butterfly valves cause
turbulence
