3.10 Fire Pump Controller Wire and Cable Connection
1. The installation of the controller must be carried out by the electrical personnel who
have received professional training and obtained relevant qualification certificates;
Non-professional operation will have life risk or damage equipment;
2. The power supply of the controller of the fire pump group must be connected to the
power distribution system specially used for fire fighting through wires and cables.
Non-fire-fighting equipment cannot extract power from the distribution system.
3. The electrical connection shall be made in accordance with the electrical wiring
diagram of the distribution cabinet.

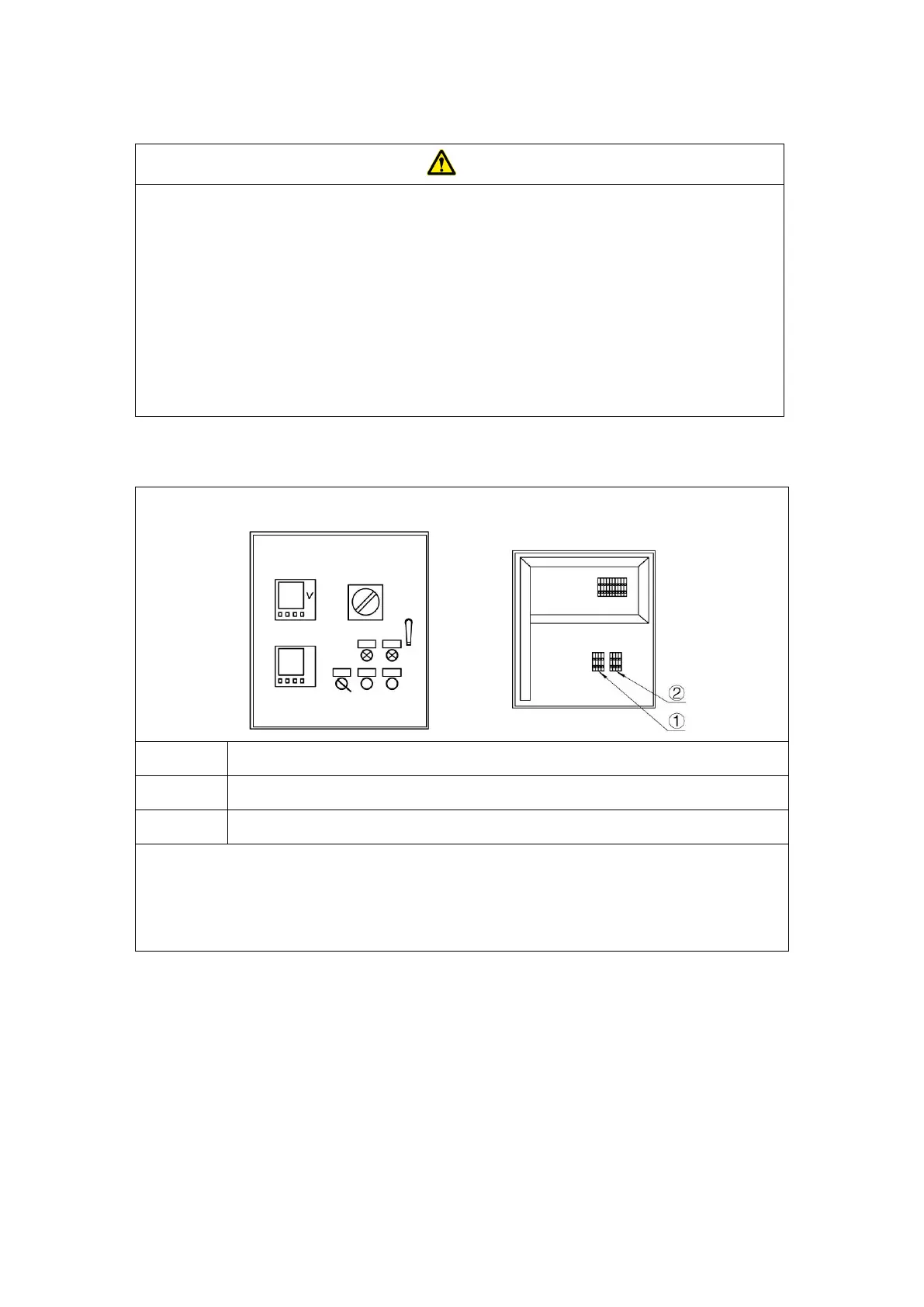

3.10.1 Jockey Pump Controller
Jockey pump control cabinet:
Power cable connection terminal
Connect to jockey pump motor terminal
Note: For different brands or models of controller, wire and cable connection location or
connection requirements are not the same, before the installation and use, please carefully
read the corresponding manual, and the installation and operation shall be carried out by
the corresponding professionals.
