54
VACUUM SWITCH ASSEMBLY INSTALLATION
PARTS

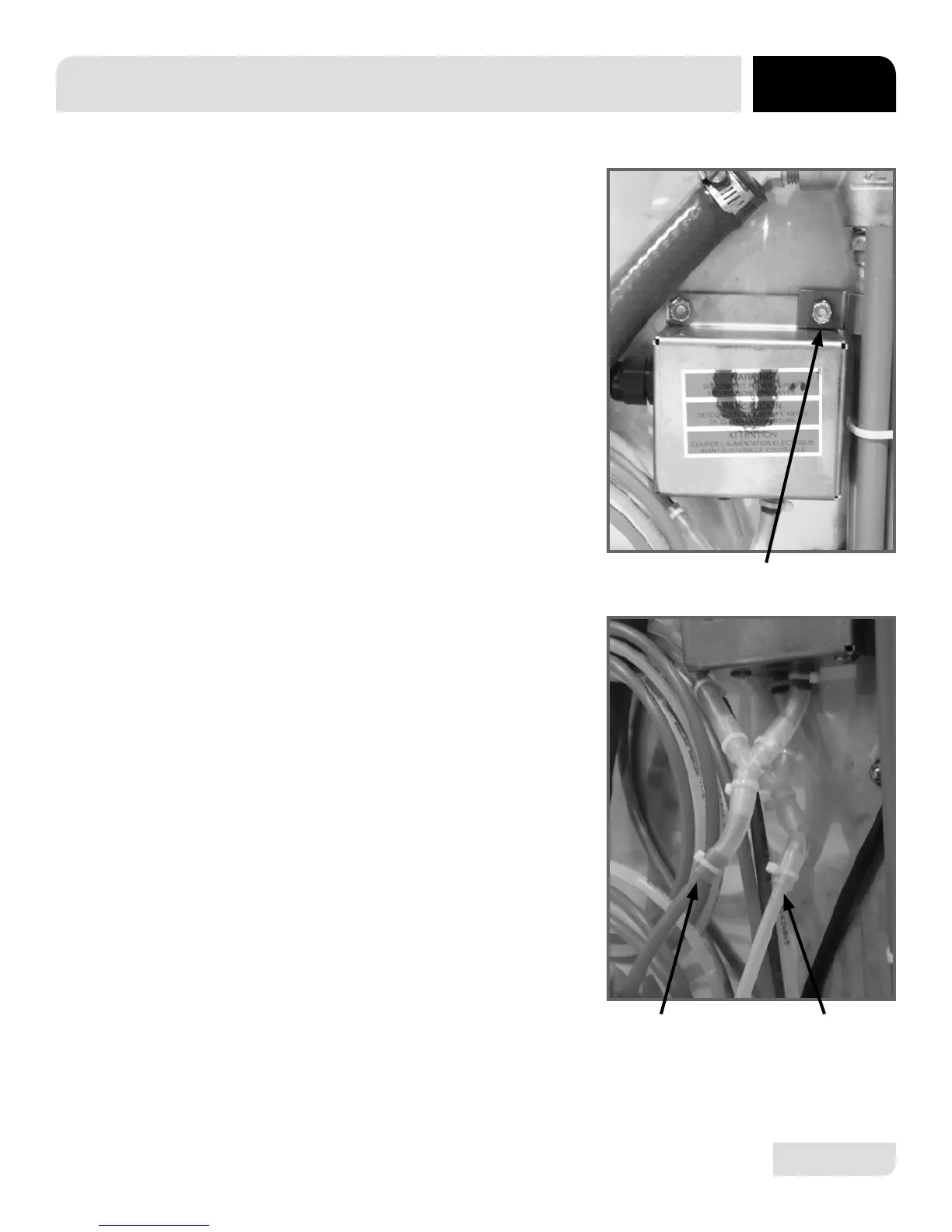

Remove locknut on plumbing support brackets and mount
switch box over existing stud. Re-install bracket and route red
and white tubes behind blue hose as shown.
Route gray cable down back and under tub along inlet
plumbing, remove wires from existing pressure switches and
connect gray cable per note below.
Detergent switch (Red Tube)
1. Connect black wire from gray cable to black/yellow wire
from switch.
2. Connect brown wire from gray cable to blue wire from
switch.
Sanitizer Switch (White Tube)
1. Connect white wire gray cable to white/yellow wire from
switch.
2. Connect red wire from gray cable to blue from switch.
After Cutting existing red & white tube approximately 12”
above the gray tube stiffener, insert the cut ends into the clear
tubes as shown.
White Tube
Red Tube
Locknut
To Next Page
