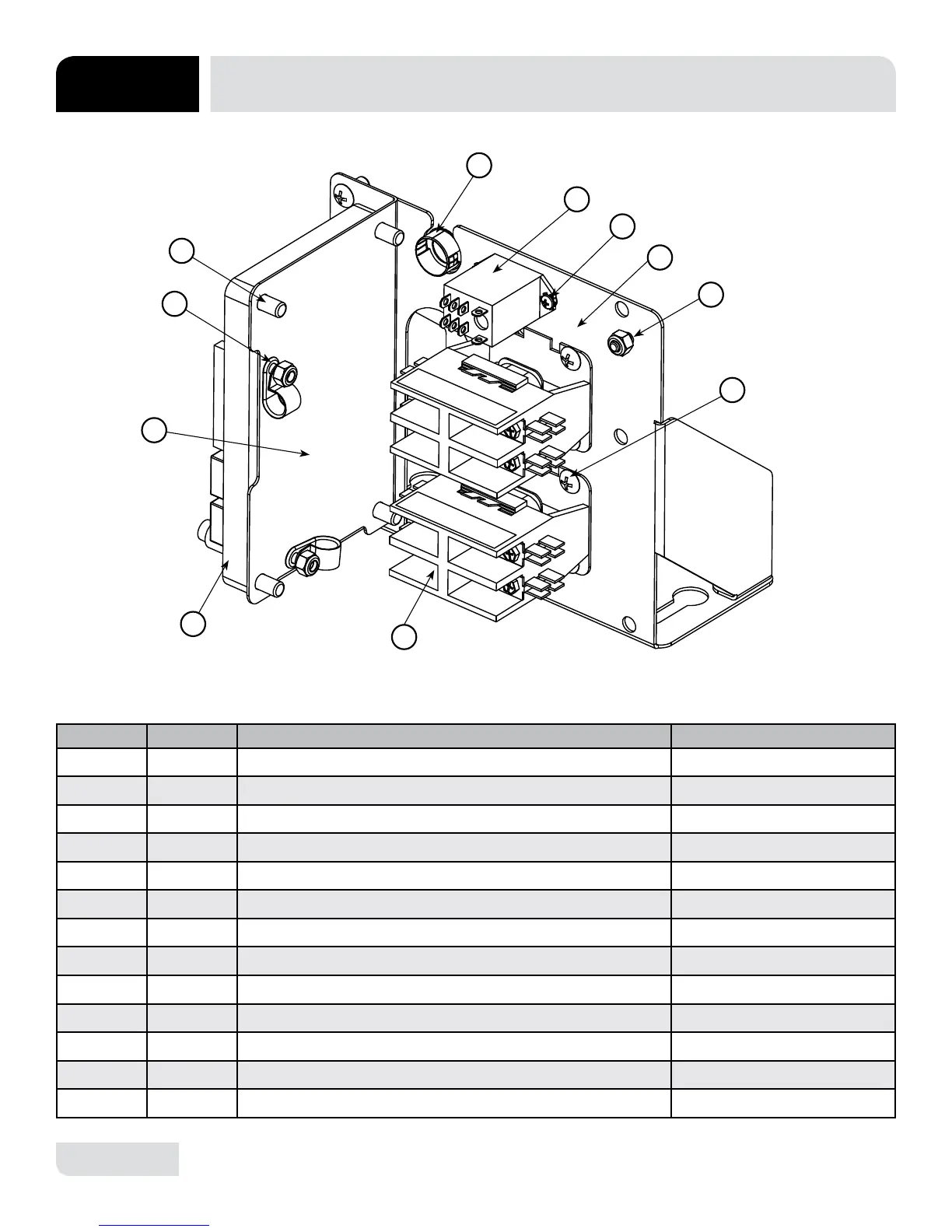

NOBLE UH30 CONTROL PANEL
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Heyco Open/Closed Busing .875 5975-003-35-21
2 1 Relay, Omron 05945-111-89-75
3 2 Screw, 6-32 X 3/8 05305-002-25-91
4 1 Control Panel Weldment 05700-003-31-48
5 3 Locknut, Nylon 05310-373-01-00
6 8 Screw, 10-32 X 3/8 05305-173-12-00
7 2 Contactor, 240V 05945-002-74-20
8 1 Universal Timer 05945-003-33-09
1 Fused Universal Timer (not shown) 05945-003-75-23
9 1 Timer Mounting Bracket (Avenger HT Only) 05700-003-36-05
10 1 P Clamp 1/4” 05975-002-61-42
1 Locknut. 6-32 w/ Nylon Insert 05310-373-03-00
11 4 Screw, 10-32 X 1 05305-002-19-42
PART NUMBERDESCRIPTIONQTYITEM
05700-003-31-48
A-CONTROL PANEL WELDMENT
11
05305-173-12-00SCREW, 10-32 X 3/8" LONG PHIL TRUSS82
05945-002-74-20
CONTACTOR,CR453CC2BAA 30AMP 240V
23
05310-373-01-00NUT, LOCK10-24 S/S HEX W/NYLON IN34
05305-002-25-91
SCREW, 6-32 X 3/8 SEMS W/EXT T WASH
26
05945-111-89-75RELAY, OMRON17
5975-003-35-21
(HEYCO) OPEN/CLOSED BUSHING .875
18
05305-002-19-42SCREW, 10-32 X 1 PHILLIPS PAN HD49
0
5700-003-36-05
A- TIMER BRACKET
110
04320-002-71-22STRAP, 3307 HEYCO NYLON LOOP211
05945-003-75-23
TIMER, UNIVERSAL POLYTRON W/FUSE
123
